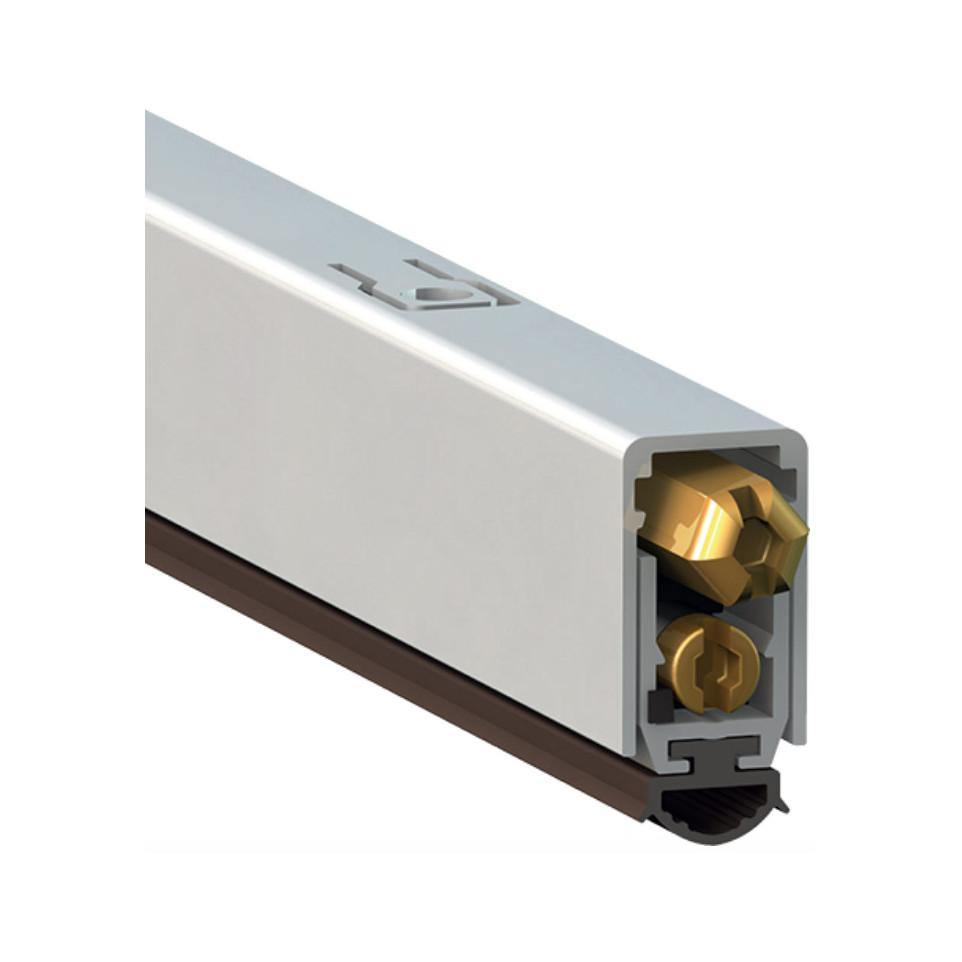

Comaglio 1700 Mini Automatic Door Threshold 12x20x430mm per piece

Product

Automatic baseboard Comaglio 1700 Mini is designed for efficient sealing at door bottoms or walls, improving insulation and minimizing air, sound, and smoke infiltration in residential, commercial, or industrial environments. Its compact size allows flexible installation in various settings.

Specifications

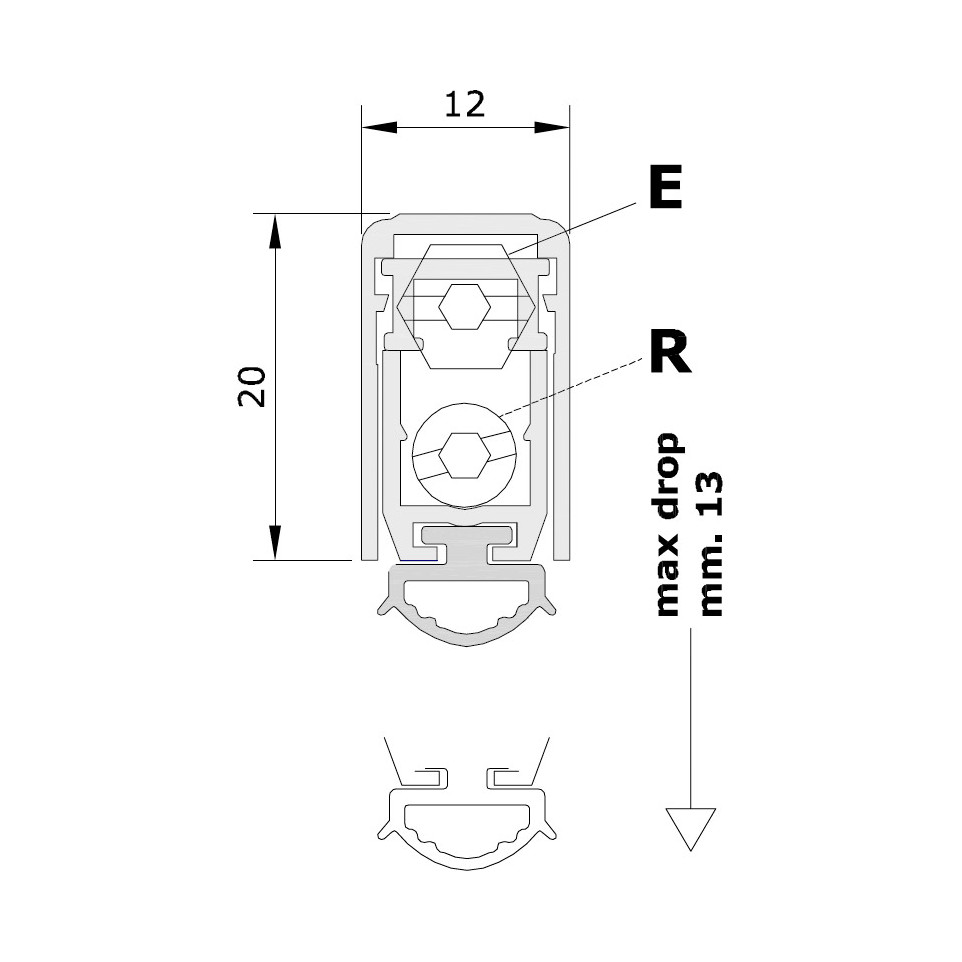

• Extruded EPDM tubular gasket with double adjustment: screw E for drop, screw R for tilt to ensure uniform pressure along the entire length
• Hexagonal brass push button and supplementary brass adjustment screw
• Body dimensions: 12x20x430 mm; maximum shortening: 120 mm
• Endurance: up to 200,000 operation cycles
• Sound insulation: up to 43 dB; fire resistance: 30 minutes; smoke insulation: 2.03 m³/h/m at 25 Pa

Usage

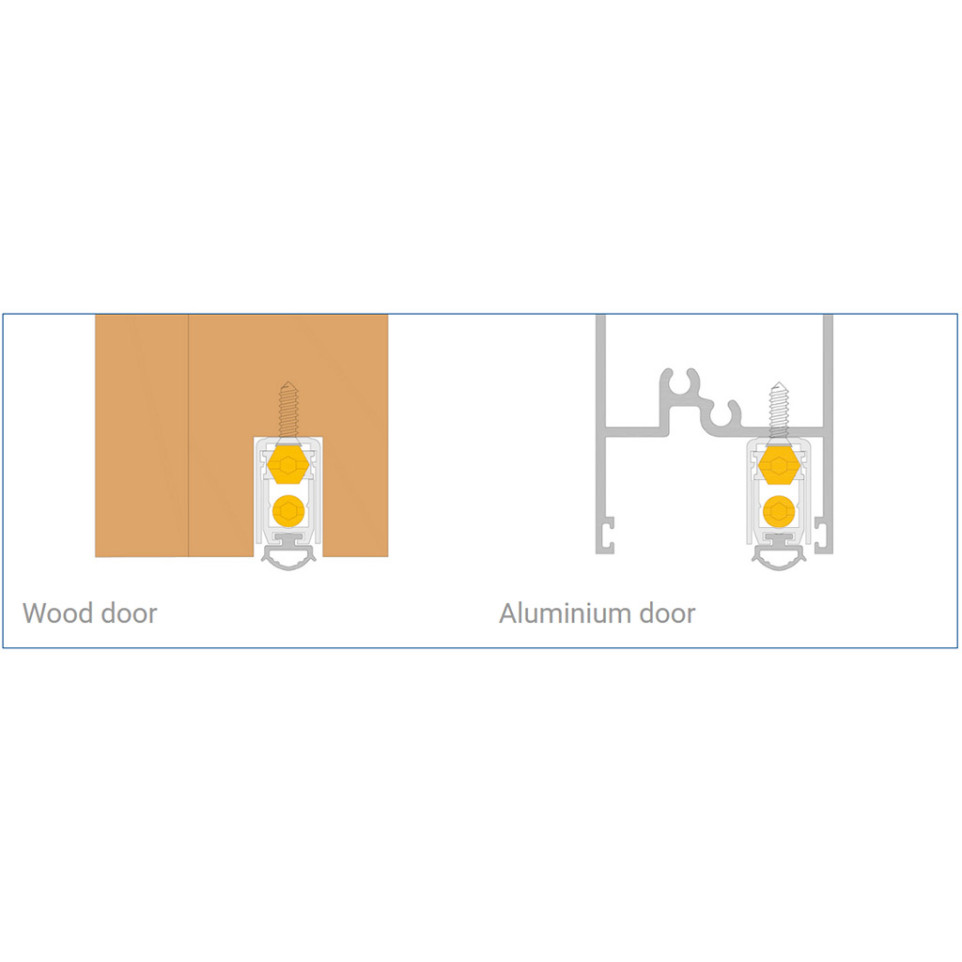

Install by removing the inner profile for access, then position and screw in place. The dual adjustable mechanism allows precise tuning of gasket drop and inclination to match the floor profile, ensuring an effective seal in every application.

FAQ

1. What does the double adjustment feature provide?
   The two adjustment screws allow you to control both the drop and tilt of the gasket for even, firm contact along the full baseboard or door length.

2. Can this baseboard be shortened to fit my installation?
   Yes, it can be trimmed by up to 120 mm without affecting performance.

3. How durable is the product in frequent use conditions?
   It is built to withstand up to 200,000 operational cycles.

4. What level of sound and smoke insulation does it provide?
   It offers sound reduction up to 43 dB and smoke insulation of 2.03 m³/h/m at 25 Pa.

5. Does it require special tools for installation?
   Only standard tools are needed; installation involves unscrewing the inner profile, fitting, and fastening with screws.
