Comaglio 1700 Mini Automatic Door Bottom 12x20x1330mm per piece

Comaglio 1700 Mini Automatic Door Bottom 12x20x1330mm per piece
Comaglio 1700 Mini Automatic Door Bottom 12x20x1330mm per piece
Comaglio 1700 Mini Automatic Door Bottom 12x20x1330mm per piece
Comaglio 1700 Mini Automatic Door Bottom 12x20x1330mm per piece
Comaglio 1700 Mini Automatic Door...
Comaglio 1700 Mini Automatic Door...
Comaglio 1700 Mini Automatic Door...
Comaglio 1700 Mini Automatic Door...

Estimated delivery date :  Tuesday 9 June
€30.16 HT
In stock

Ref : FGT-1956829

Variantes

Comaglio 1700 Mini Automatic Door Threshold 12x20x1030mm per piece Comaglio 1700 Mini Automatic Door Threshold 12x20x1030mm per piece Comaglio 1700 Mini Automatic Door Threshold 12x20x1130mm per piece Comaglio 1700 Mini Automatic Door Threshold 12x20x1130mm per piece Comaglio 1700 Mini Automatic Door Threshold 12x20x1230mm per piece Comaglio 1700 Mini Automatic Door Threshold 12x20x1230mm per piece Comaglio 1700 Mini Automatic Door Threshold 12x20x430mm per piece Comaglio 1700 Mini Automatic Door Threshold 12x20x430mm per piece Comaglio 1700 Mini Automatic Door Threshold 12x20x530mm per piece Comaglio 1700 Mini Automatic Door Threshold 12x20x530mm per piece Comaglio 1700 Mini Automatic Door Threshold 12x20x730mm per piece Comaglio 1700 Mini Automatic Door Threshold 12x20x730mm per piece Comaglio 1700 Mini Automatic Door Threshold 12x20x930mm per piece Comaglio 1700 Mini Automatic Door Threshold 12x20x930mm per piece Comaglio 1700 Mini Automatic Drop Down Door Seal 12x20x630mm per piece Comaglio 1700 Mini Automatic Drop Down Door Seal 12x20x630mm per piece Comaglio 1700 Mini Automatic Drop Down Door Threshold 12x20x830mm per piece Comaglio 1700 Mini Automatic Drop Down Door Threshold 12x20x830mm per piece
Quantity (Vendu par 10)

Add to your shopping List

You must be logged


Description

Product

The Comaglio 1700 Mini automatic baseboard is designed for doors and floors, providing adaptable, efficient sealing and pressure uniformity along its 1330 mm length. It is suited for both commercial and residential environments requiring enhanced insulation and protection.

Specifications

  • Extruded EPDM tubular seal for durability and flexibility

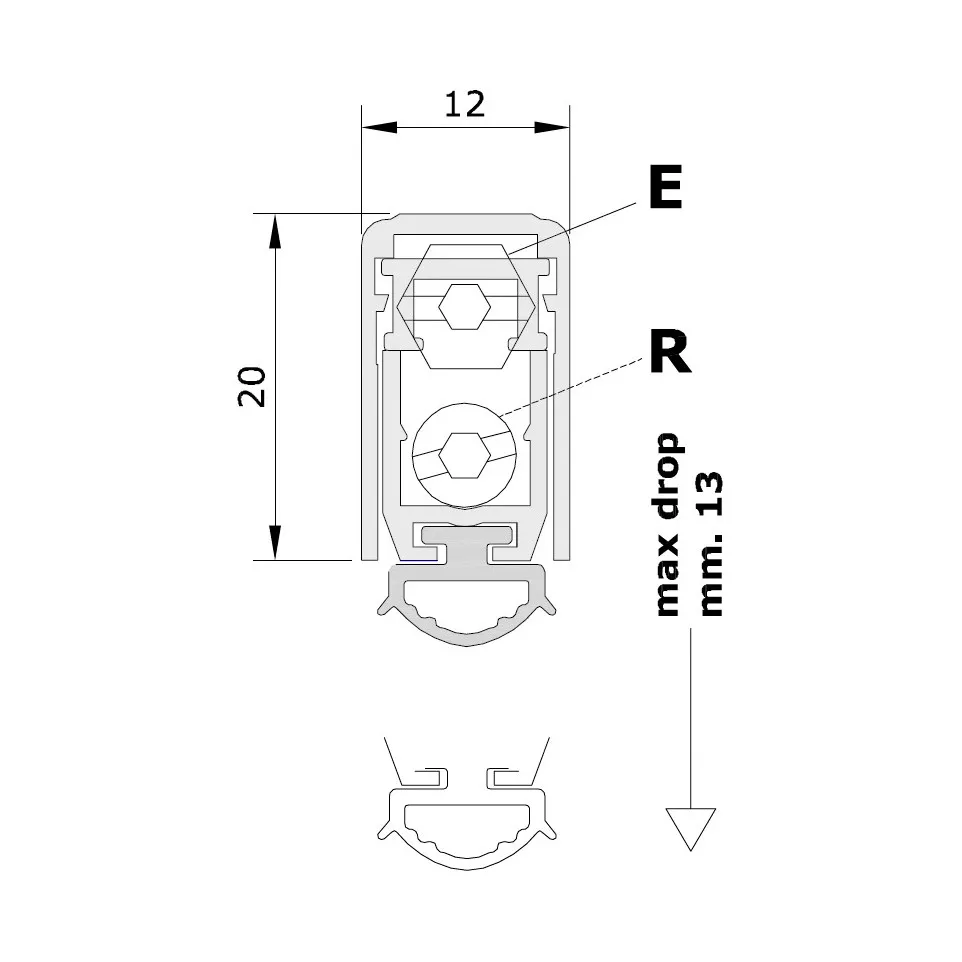

  • Dual adjustment system: E screw for drop, R screw for inclination, ensuring a strong and homogeneous pressure
  • Brass hex push-button and secondary adjustment screw
  • Maximum shortening of 100 mm allowed
  • Endurance tested for 200,000 operation cycles
  • Dimensions: 12x20x1330 mm
  • Offers sound insulation up to 43 dB
  • Fire resistance rated to 30 minutes
  • Smoke insulation performance: 2.03 m³/h/m at 25 Pa

Usage

Install by removing the inner profile, fixing the baseboard via screws, and adjusting using the dedicated brass screws for optimal drop and inclination. The product ensures precise closure and insulation, activating automatically with door movement and adapting to floor unevenness.

FAQ

  1. How do I install the Comaglio 1700 Mini automatic baseboard?
    Remove the internal profile, position the unit, fasten with screws, and use the adjustment screws for drop and inclination settings.

  2. Can the length be adjusted?
    Yes, it can be shortened by up to 100 mm to fit various door widths.

  3. What level of sound insulation does it provide?
    It offers sound insulation up to 43 dB.

  4. Is the seal durable for high-frequency use?
    The mechanism is tested for up to 200,000 operation cycles.

  5. What materials are used for sealing and durability?
    The sealing joint is made of extruded EPDM; adjustment components are brass for corrosion resistance.

mvm-dt-2025-07-07

See more

Product Details

Brand Comaglio
Length (in mm) 1.330
Stroke ( mm ) 13
Fire resistance (min) 30,00
Noise level (dBA) 43,00
Groove width (mm) 12,00
FGT-1956829
