Usage

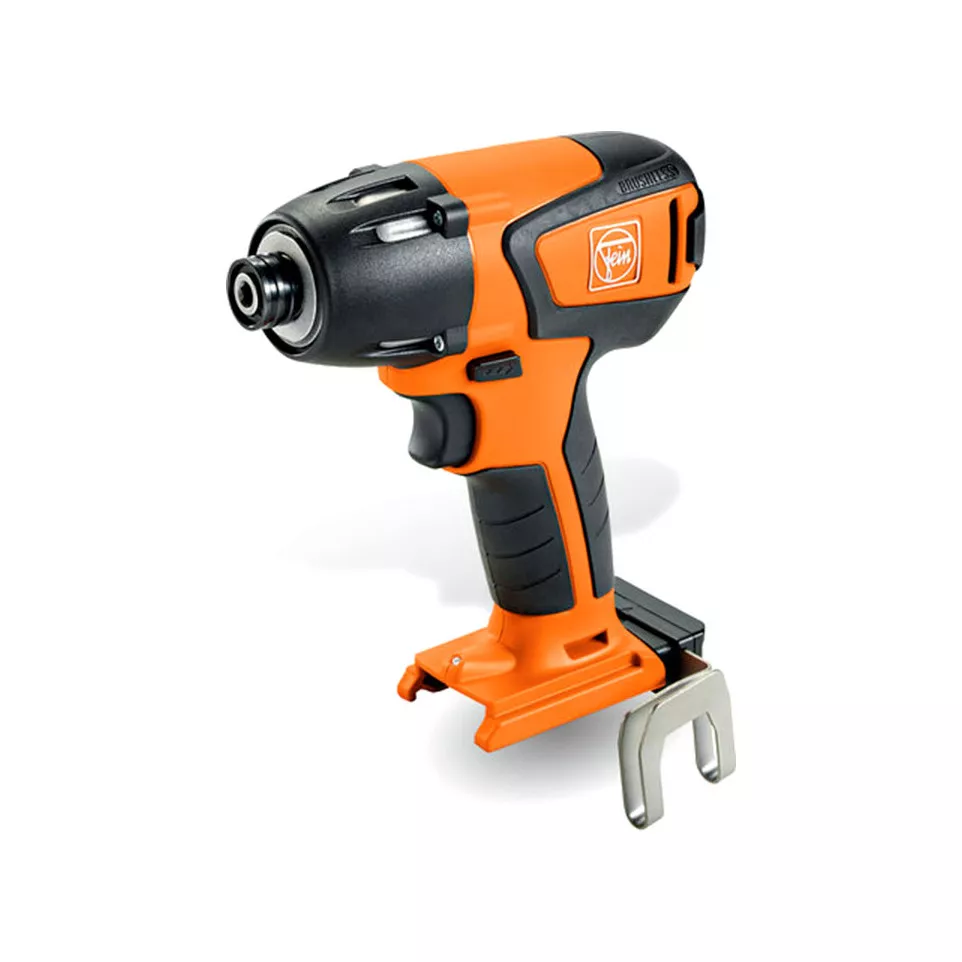

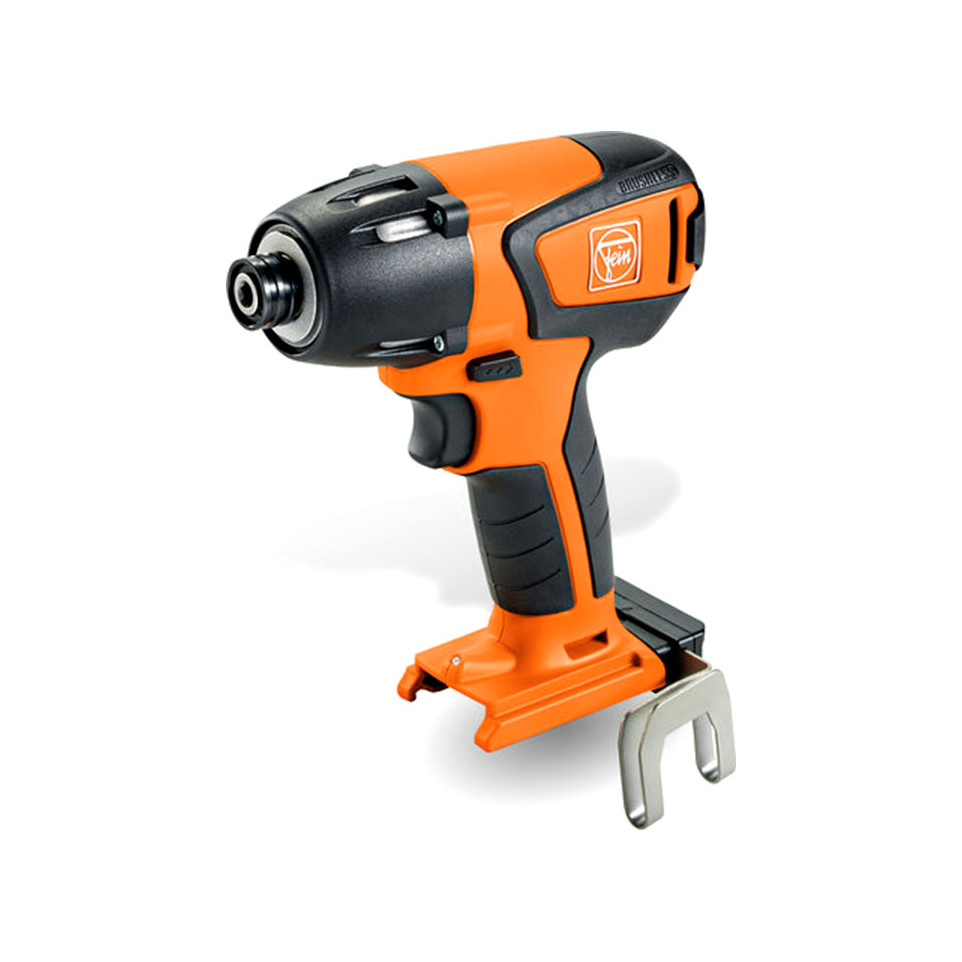

The Fein ASCD 18-200 W4 Select cordless impact wrench/driver is designed for high-torque screwdriving and bolting tasks in construction, assembly, and maintenance settings. It is compatible with standard 18V batteries and suitable for demanding professional use.
Advantages
- Brushless motor delivers up to 210 Nm torque with higher efficiency and extended service life.
- Six-stage electronic torque setting enhances precision, reducing the risk of shearing screw heads.
- Robust solid metal gearbox ensures durability under heavy-duty conditions.
- Compact design with ergonomic bit and belt holders offers comfortable handling in tight spaces.
- Compatible with Bosch Professional AMPShare batteries; battery not included.
Specifications
- Design: Brushless FEIN PowerDrive motor; solid metal impact gear; contact guard on gearbox head; compact build.
- Sustainability: Long service life due to brushless technology; protective ECP (Electronic Cell Protection) when used with compatible batteries; L-Boxx system for mobile working.
- Performance:
- Max torque: 210 Nm
- Speed (no load): up to 1,500 rpm
- Impacts: up to 3,000 per minute
- Torque levels: Six electronic settings
- Max wood screw size: Ø8 x 200 mm
- Weight without battery: approx. 1.20 kg
- Differentiators:
- +10% reverse torque for loosening tight screws;
- Compatible with Bosch Professional/AMPShare batteries since 2008;
- Up to approximately 700 M18 screws per ProCORE 4 Ah battery charge.
How it works
The user attaches a compatible AMPShare or Bosch Professional battery (not included), fits the desired bit into the quarter-inch hex socket, selects one of six available torque settings electronically, then drives or loosens fasteners using variable speed control and impact action as required by the application.
