Usage

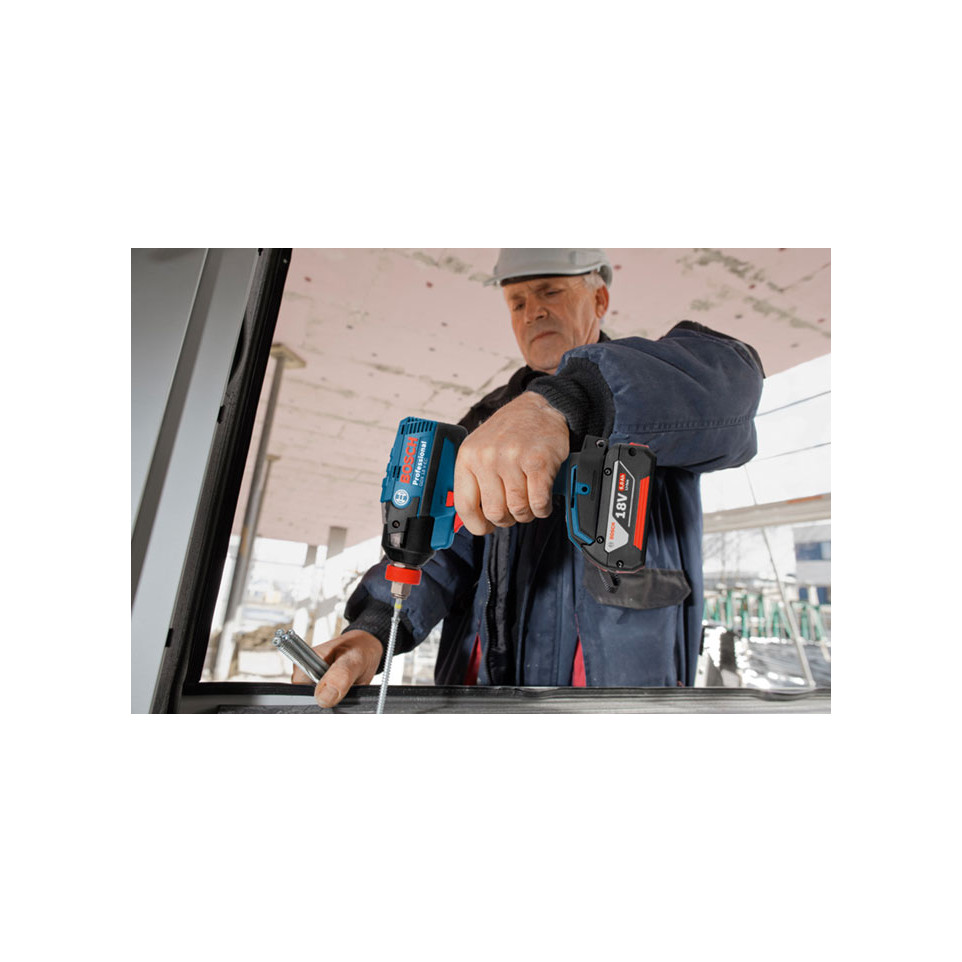

The Bosch GDX 18 V-200C Click & Go cordless impact driver/wrench is designed for tightening and loosening bolts and screws in wood, metal, and installations. Ideal for professionals needing versatility in confined or hard-to-reach areas.
Advantages
- Combines impact driver and impact wrench functions with a unique 2-in-1 tool holder (¼" internal hexagon & ½" external square)
- Brushless motor technology delivers more power efficiency and longer lifespan
- Maximum torque of up to 200 Nm enables reliable performance for demanding jobs
- Compact design (head length: approx. 147 mm, weight: only 1.2 kg without battery) facilitates operation in tight spaces
- Bluetooth connectivity option allows tool feedback, service information, and customizable settings via mobile app
Specifications
- Design: Durable construction with brushless motor; ergonomic grip; integrated LED light for workspace illumination; three selectable speed/impact modes[4][5][6]
- Sustainability: Electronic Motor Protection (EMP) and Electronic Cell Protection (ECP) safeguard the tool’s electronics against overloads[5][10]
- Main performance values:
No-load speed: up to 3,400 rpm
Tightening torque max.: up to 200 Nm
BPM: up to 4,000 impacts/minute
Screw diameter range: M6 – M16[6][9]
- Differentiating features:
- Universal bit holder compatible with standard screwdriver bits or sockets
- Three-stage electronic speed selection
- Compatible with all Bosch Professional “18V System” batteries and chargers[10]
How it works

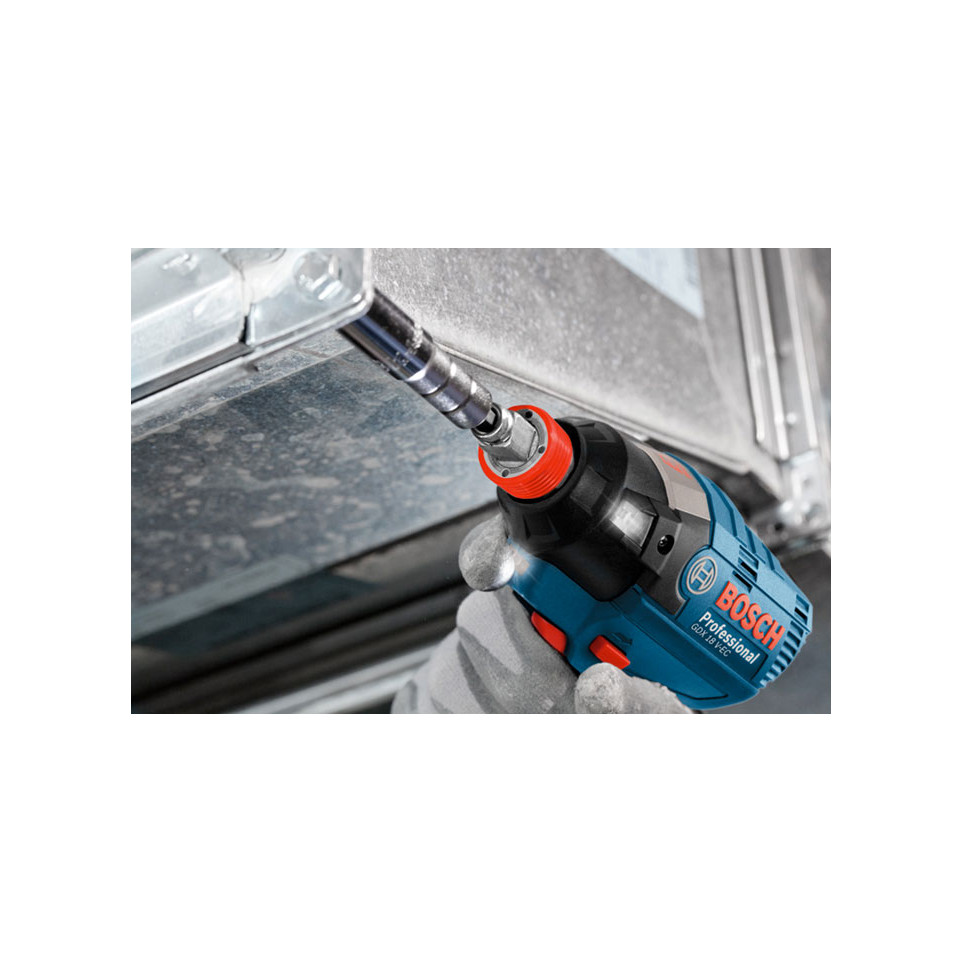

The user inserts either a screwdriver bit or socket into the appropriate section of the combined hex/square drive. With variable-speed trigger control and three selectable modes, screws or bolts can be tightened or loosened efficiently according to application needs.
