Pair of Security Rosettes PZ in Stainless Steel 304 for 35–80mm Door L&L Thickness 10mm per piece

Usage

This pair of PZ security escutcheons in 304 stainless steel is designed for doors with a thickness of 35 to 80 mm, providing reinforced protection for euro-profile cylinders on entry or interior doors.

Advantages

• Constructed from solid brushed AISI 304 stainless steel, ensuring high resistance to corrosion and mechanical attacks.
• Bevelled exterior edge prevents the escutcheon from being pried off.
• Fixed from the inside using M6 screws, creating a robust and tamper-proof assembly.
• Suitable for both indoor and outdoor applications thanks to its weather-resistant finish.
• The minimal cylinder overhang reduces risk of forced entry attempts; available in multiple thicknesses for optimal fit.

Specifications

• Design: Round security escutcheon set with brushed finish; solid AISI/INOX 304 construction.
• Durability: Suitable for public use; resistant to corrosion and impact. Designed for long service life in demanding environments.

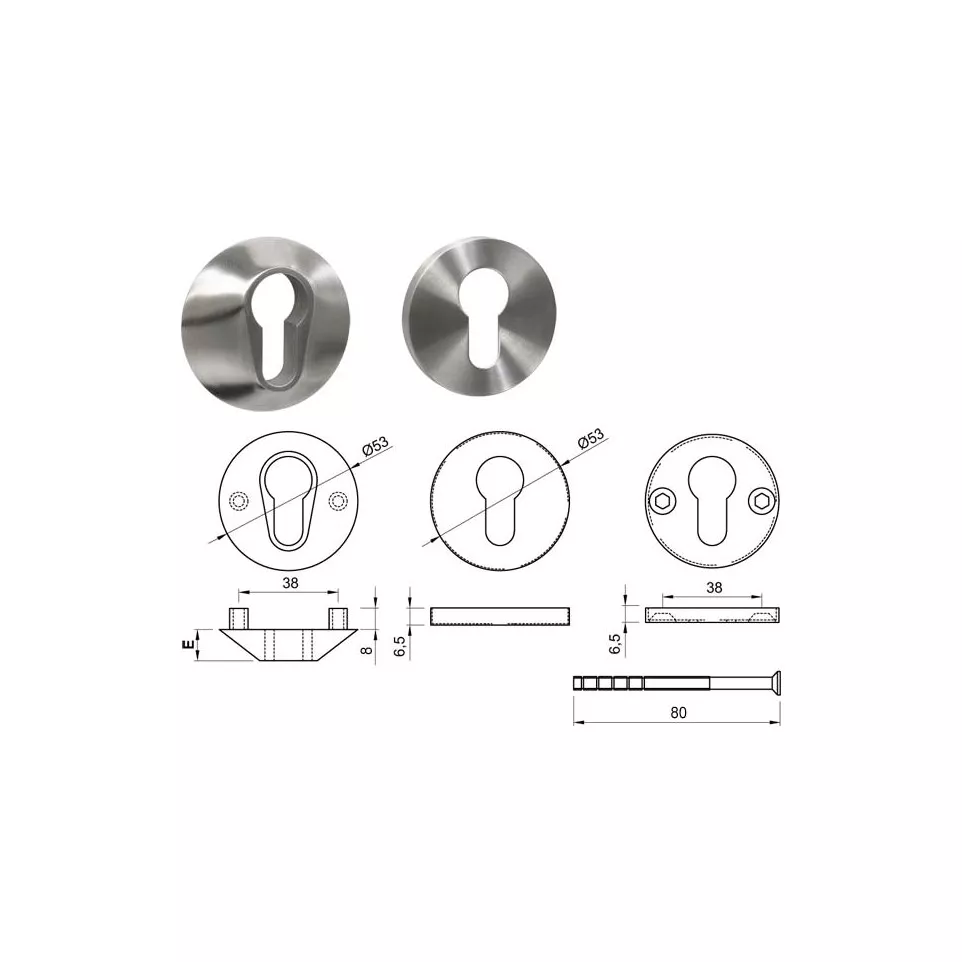

• Performance: Compatible with door thicknesses ranging from 35 mm up to approximately 80 mm. Escutcheon thickness: exterior part at either specified variant—commonly supplied at around 10 mm per piece. Inner cover dimensions: diameter 53 mm, thickness 6.5 mm.[1][3]
• Differentiators: Invisible internal fixing (M6 screws), bevelled anti-tear edge, can be used on outward-facing doors without compromising aesthetics or security.[1][3]

How it works

The two-part escutcheon set is installed by aligning the inner and outer components through pre-drilled holes in the door. The pieces are secured together by internal screws, covering and protecting the cylinder while making removal or forced attack significantly more difficult.[1][3]
