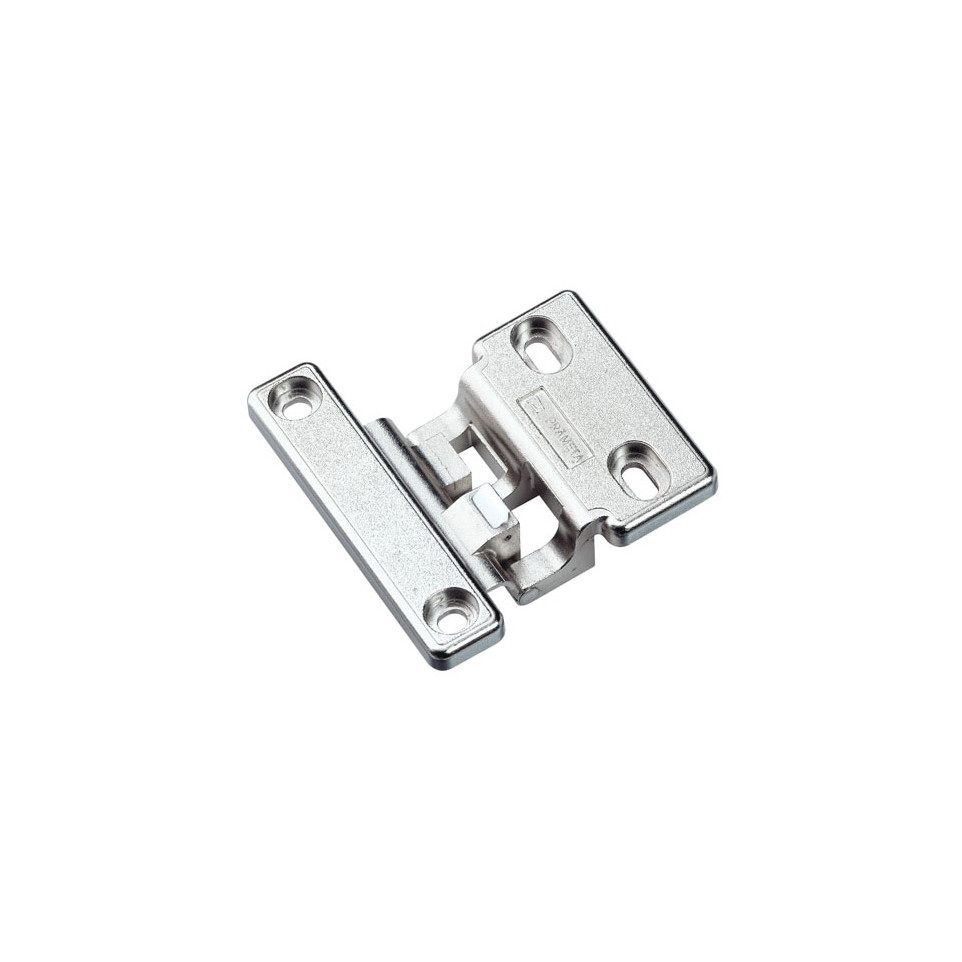

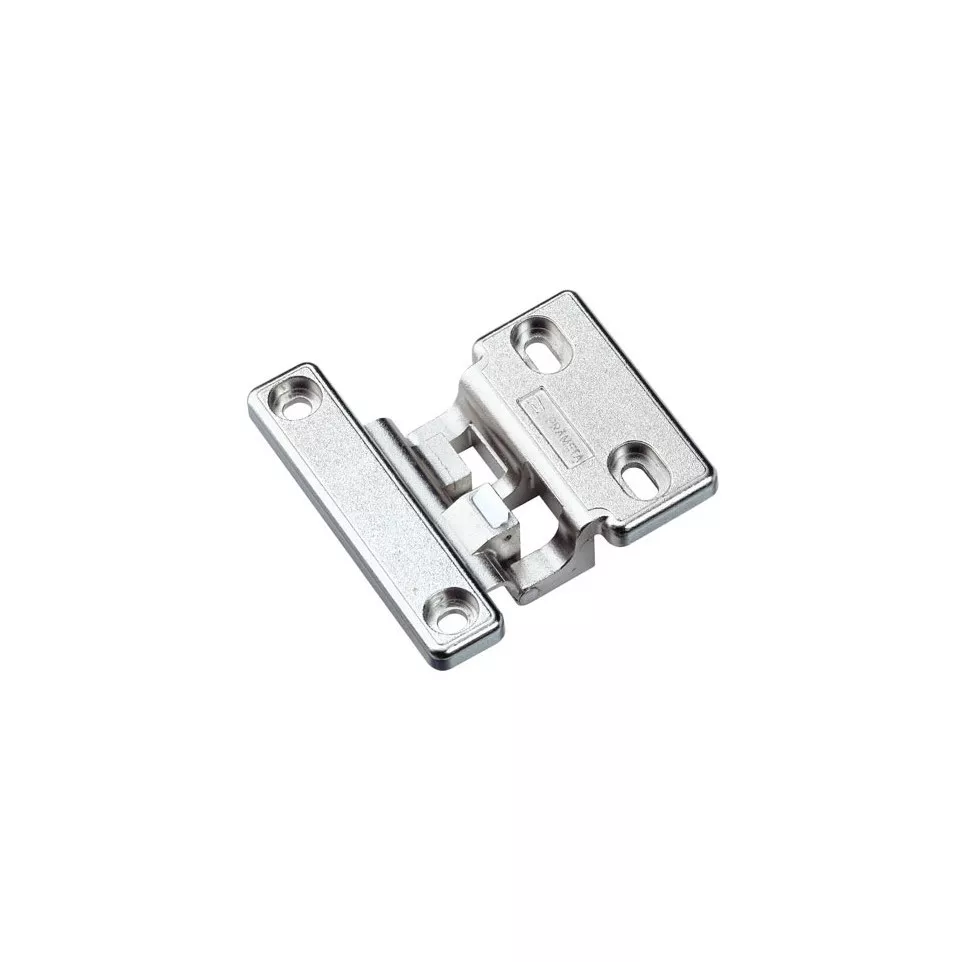

Flat Hinge for Thin and Laminated Panels 10 to 13 mm Thick and Single Overlay Door per Piece

Flat Hinge for Thin and Laminated Panels 10 to 13 mm Thick and Single Overlay Door per Piece
Flat Hinge for Thin and Laminated Panels 10 to 13 mm Thick and Single Overlay Door per Piece
Flat Hinge for Thin and Laminated Panels 10 to 13 mm Thick and Single Overlay Door per Piece
Flat Hinge for Thin and Laminated...
Flat Hinge for Thin and Laminated...
Flat Hinge for Thin and Laminated...

Estimated delivery date :  Wednesday 1 July
€64.78 TTC

Ref : FGT-234484

Variantes

Flat hinge for thin or laminated panels thickness 10 or 13 mm and single semi-overlay door per piece Flat hinge for thin or laminated panels thickness 10 or 13 mm and single semi-overlay door per piece Nickel-Plated Screw 3.9x9.5mm for Thin or Laminated Panels Thickness 10 to 13mm per piece Nickel-Plated Screw 3.9x9.5mm for Thin or Laminated Panels Thickness 10 to 13mm per piece Spacer Shim 1.5mm Thickness for Trespa Hinge / pc Spacer Shim 1.5mm Thickness for Trespa Hinge / pc Stainless Steel Screw 3.9x9.5mm for Thin or Laminated Panels Thickness 10-13mm per piece Stainless Steel Screw 3.9x9.5mm for Thin or Laminated Panels Thickness 10-13mm per piece
Quantity (Vendu par 20)

Add to your shopping List

You must be logged


Description

Usage

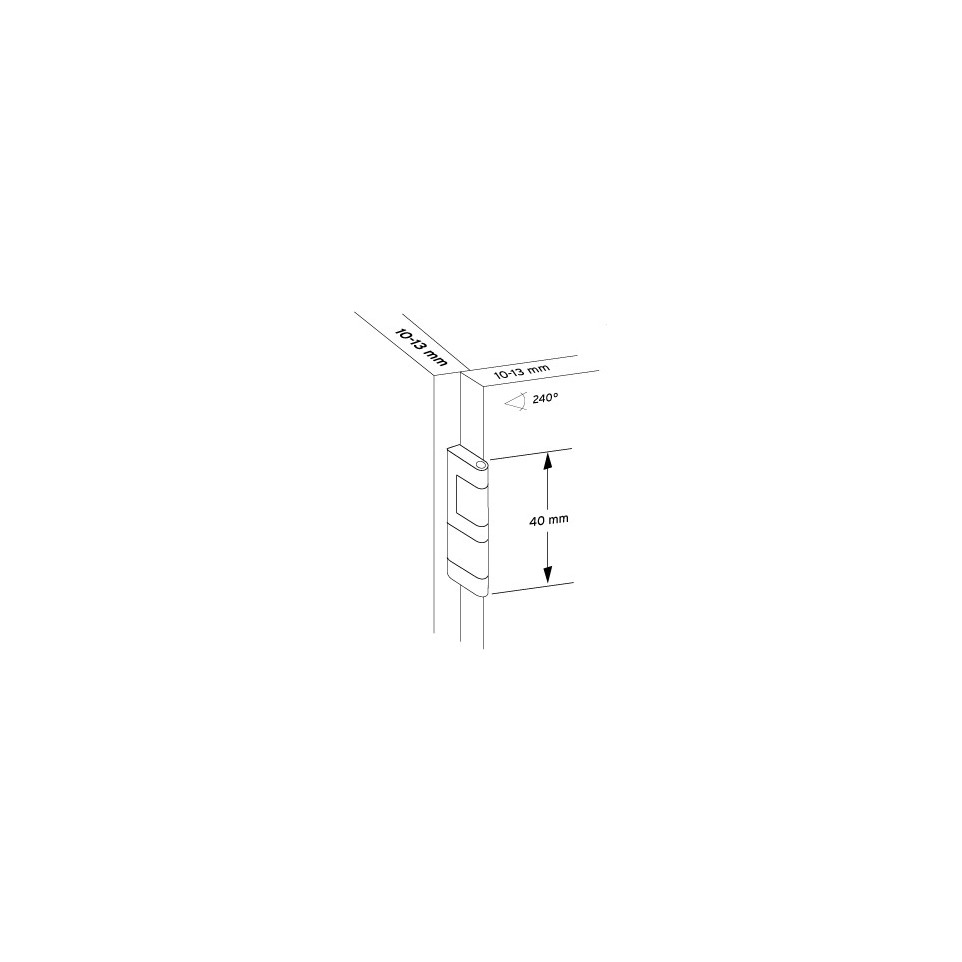

This flat hinge is designed for mounting thin and/or laminated panels with a thickness of 10 to 13 mm, as well as single doors in semi-overlay installations, commonly used in modular or partition furniture systems.

Advantages

  • Compatible with Trespa and other thin panel materials for versatile applications
  • Allows a wide door opening up to 240° for easy access and movement
  • Robust zinc alloy construction with stainless steel finish ensures reliability and corrosion resistance
  • Screw adjustment: vertical ±2 mm, overlay adjustment of door coverage by +1 mm for precise installation
  • No door withdrawal at openings above 140°, improving safety and usability in constrained spaces

Specifications

  • Zinc alloy (zamak) body, nickel-plated or stainless steel finish depending on model variant; hardened steel pin with maintenance-free plastic bearing bushings[1][3]
  • Corrosion-resistant materials suitable for indoor use and high-wear environments[1][3]
  • Total hinge arm thickness: 4.5 mm – supports modular system integration[1][3]
  • Maximum opening angle: up to 240° – suitable for full access doors[1][3]
  • Keeps panel edge distance (knot): 5 mm; bracket overlays the door by 3.5 mm (or 2 mm when used with a spacing shim on thinner panels)[1]

How it works

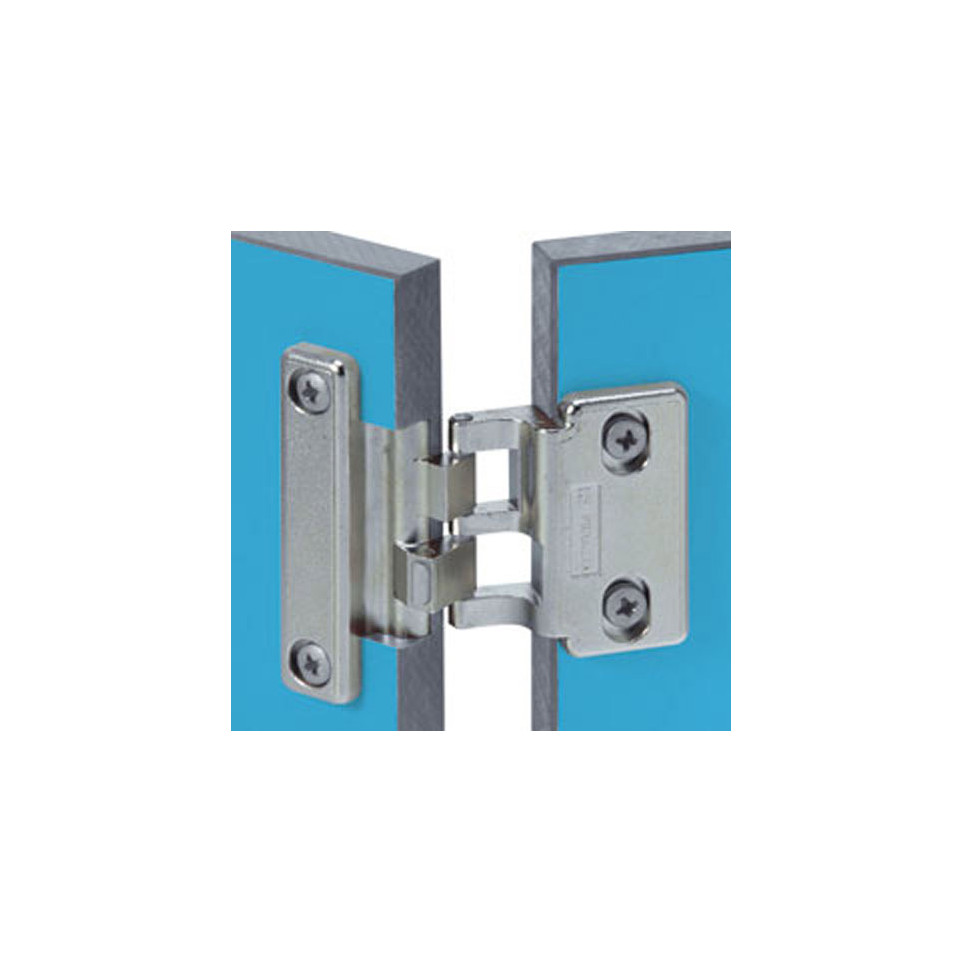

The hinge is mounted onto the side of the panel or door using compatible screws. It allows single-panel doors to swing open up to 240°, while built-in adjustment features make precise alignment quick during installation and use.

See more

Product Details

Brand Praemeta
Finishing inox
Material used acier
Description charnière plate pour simple porte (avec 234489)
Opening 240°
