Pivot and Retractable Hinge Kit R01 400mm Depth for Door Max 25kg per piece

Pivot and Retractable Hinge Kit R01 400mm Depth for Door Max 25kg per piece
Pivot and Retractable Hinge Kit R01 400mm Depth for Door Max 25kg per piece
Pivot and Retractable Hinge Kit R01...
Pivot and Retractable Hinge Kit R01...

Estimated delivery date :  Wednesday 10 June
€152.94 HT
In stock

Ref : FGT-247900

Variantes

Pivot and Retractable Fitting Kit R01 depth 700mm for doors up to 25kg per piece Pivot and Retractable Fitting Kit R01 depth 700mm for doors up to 25kg per piece Pivot and Retractable Hinge Kit R01 600mm Depth for Max 25kg Door per piece Pivot and Retractable Hinge Kit R01 600mm Depth for Max 25kg Door per piece Pivot and Retractable Hinge Kit R01 depth 650mm for door up to 25kg per piece Pivot and Retractable Hinge Kit R01 depth 650mm for door up to 25kg per piece Pivoting and Retractable Hardware Kit R01 Depth 450mm for Doors up to 25kg / pc Pivoting and Retractable Hardware Kit R01 Depth 450mm for Doors up to 25kg / pc Pivoting and Retractable Hinge Kit R01 550mm Depth for Max 25kg Door per piece Pivoting and Retractable Hinge Kit R01 550mm Depth for Max 25kg Door per piece Pivoting and Retractable Hinge Kit R01 Depth 500mm for Door up to 25kg per piece Pivoting and Retractable Hinge Kit R01 Depth 500mm for Door up to 25kg per piece
Quantity

Add to your shopping List

You must be logged


Description

Product

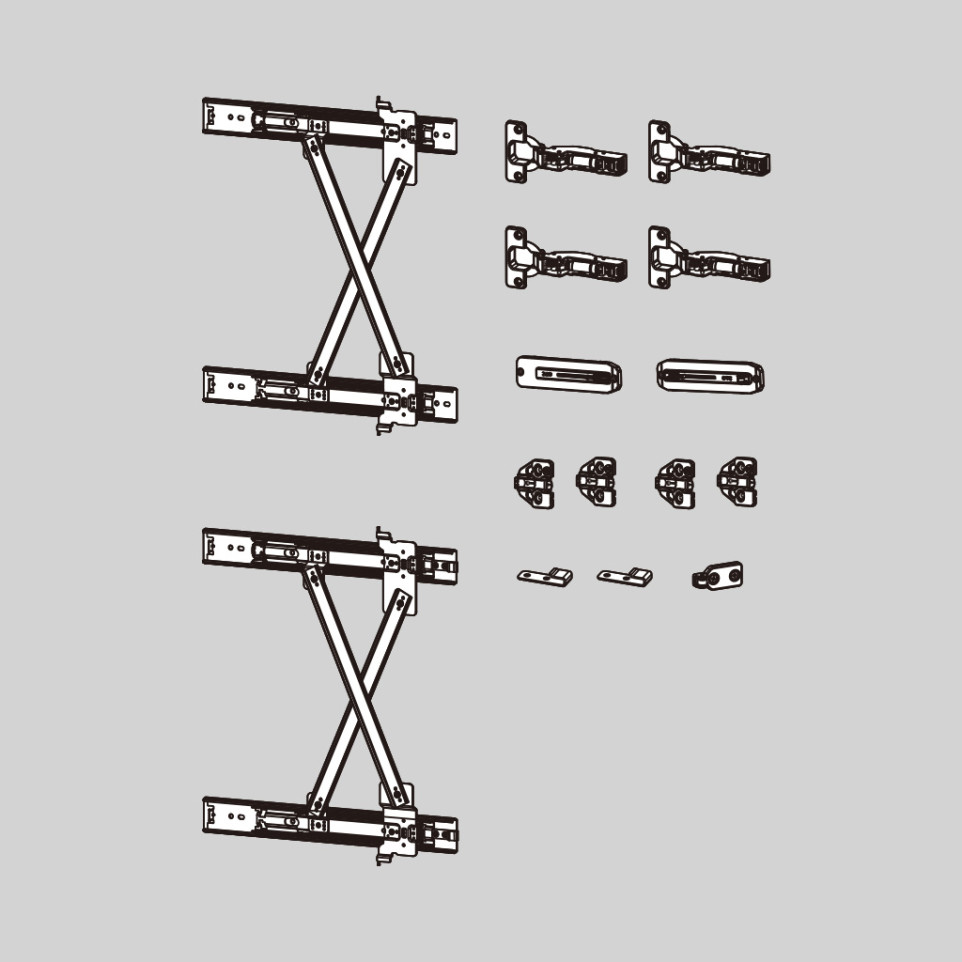

Kit for pivoting and retractable door hardware designed for cabinets with a depth of 400 mm, supporting a single door up to 25 kg. Suitable for concealed, smooth-operating, space-saving installations in living or office environments.

Specifications

  • Three-way (3D) adjustment: height ±2 mm, lateral +3/-2 mm, depth ±3 mm
  • Supports door thickness from 16 to 30 mm
  • Two guide sets: max. door height 2000 mm, max. weight 25 kg
  • Three guide sets: door height 1600–2700 mm, max. weight 30 kg
  • Enables doors to pivot open and slide into cabinet sides
  • Provides soft and controlled opening and closing

Usage

Install the kit within the cabinet structure to allow the door to pivot outward for initial opening, then slide smoothly into the cabinet sides. Adjust the door position in three dimensions for precise alignment. Ideal for applications where door concealment and unobstructed access are important.

FAQ

  1. What is the maximum weight the system can support?

    • Up to 25 kg with two guide sets and up to 30 kg with three guide sets.

  2. What are the compatible door thicknesses?

    • The hardware is suitable for door panels between 16 mm and 30 mm thick.

  3. Can the position of the door be finely adjusted?

    • Yes, the system provides 3D adjustment: in height (±2 mm), laterally (+3/-2 mm), and in depth (±3 mm).

  4. Is the opening and closing action smooth?

    • Yes, the kit is engineered for gentle, controlled opening and closing.

  5. What cabinet depths is this kit designed for?

    • It is optimized for cabinets with a 400 mm depth.
