Anodized Aluminum Straightening Fitting for Door Height 2240 to 2850 mm per piece

Usage

This anodised aluminium straightening fitting is designed to stabilise and prevent warping in wooden doors with heights from 2240 to 2850 mm. It is suitable for interior sliding or hinged door installations where long-term alignment is required.

Advantages

• Ensures lasting stability and precise alignment of tall wooden doors
• Suitable for a wide range of door sizes: height 2240–2850 mm, width 300–1600 mm, thickness 16–50 mm
• Discrete integration into the door surface for minimal visual impact
• Flexible installation: can be bonded or mechanically fixed, adapting to project requirements
• Avoids deformation over time; note: not suitable for hardwood doors

Specifications

• The fitting consists of anodised aluminium profiles and black plastic anchor elements, offering both corrosion resistance and robust mechanical support[1][5].
• The product supports wooden doors up to a maximum weight of approximately 80 kg; all components are manufactured according to industry standards for commercial door hardware[4][8].
• Covers a measurable performance range: compatible with doors from H2240–2850 mm, width between 300–1600 mm, thickness from16–50mm; profiles length typically supplied at approx.1038mm per piece (may require cutting on site)[1][5].

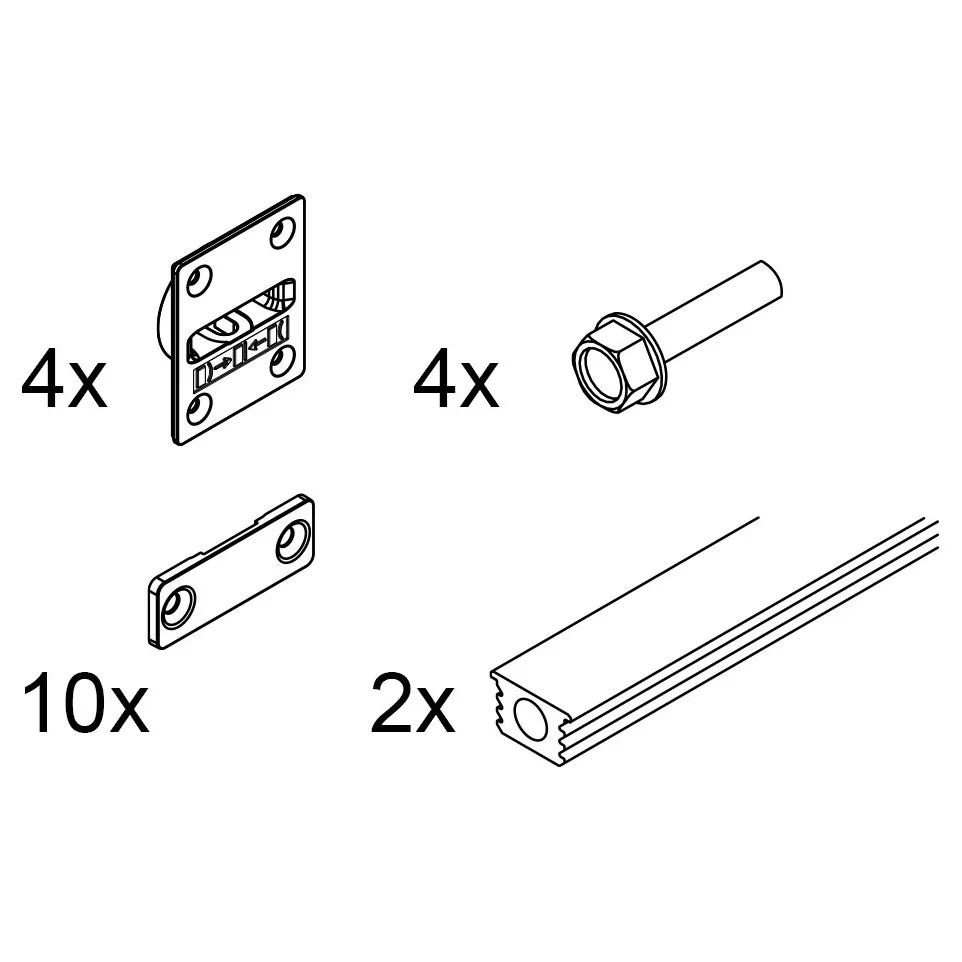

• Differentiating features include three available surface finishes (including anodised) and an adaptable profile system allowing cutting to size as needed. Includes anchor elements in plastic or zinc die-cast, fixing screws M6x40mm in zinc-plated steel, and optional cover kits[1][5][8].

How it works

This straightening fitting installs along the vertical axis inside the wooden door leaf using screws or adhesive bonding. Once installed according to mounting instructions, it counteracts bowing by maintaining internal tension across the panel height—ensuring consistently smooth operation during opening and closing cycles[1][4].[5]
