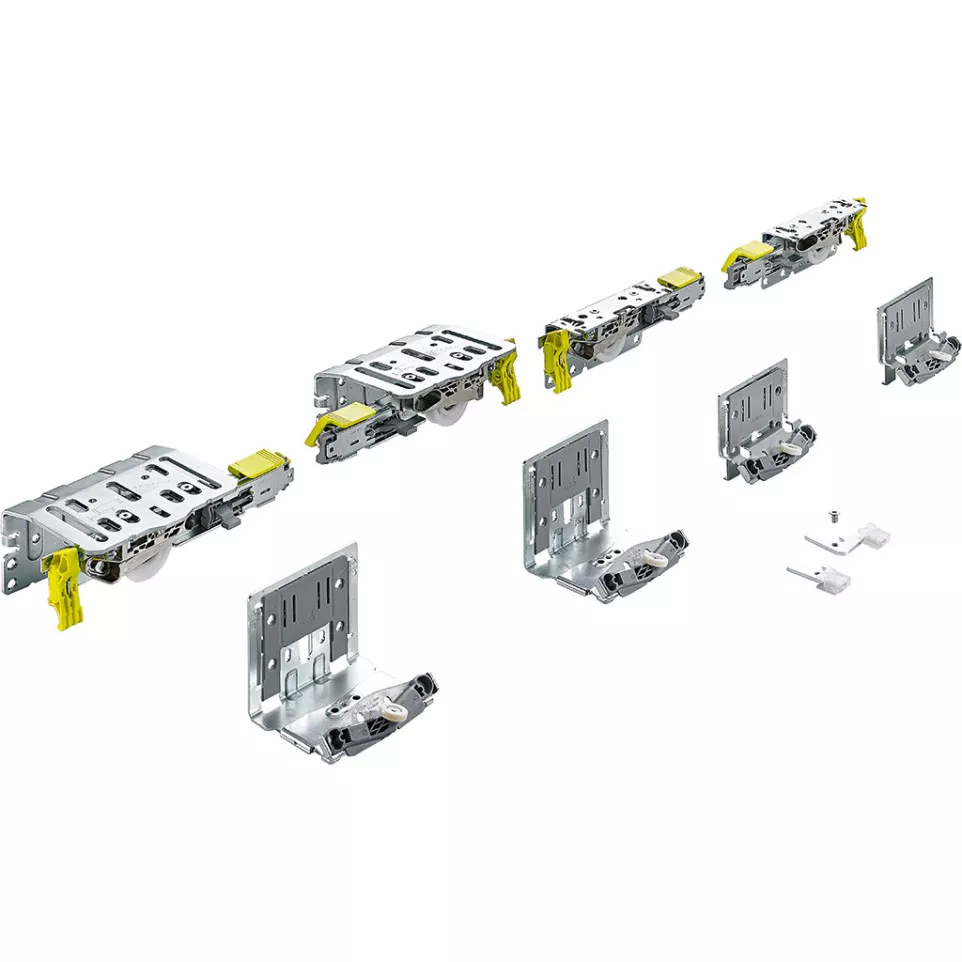

TopLine XL Sliding and Guiding Kit for 4 Doors Max Thickness 18-30mm Max 60kg per Panel / pc

Product

Kit for sliding and guiding TopLine XL by Hettich, designed to equip cabinets with four sliding doors. Suitable for door panels with a thickness of 18–30 mm and a maximum weight of 60 kg per panel. All essential hardware for sliding and guiding is included, ensuring seamless integration for wardrobes or storage cabinets with sliding doors.

Specifications

• Advanced top-running sliding door system utilizing robust, precision-engineered metal tracks and profiles
• Certified to EN 15706, Level 3 standards for safety and durability
• Designed for overlay door position, adjustable height and overlay, silent system for soft opening and closing, shallow running components for minimal visibility, minimum 17 mm floor clearance, compatible with both wood and aluminum framed doors

Usage

Install the kit by attaching the sliding and guiding mechanisms to cabinet panels and frame. Adjust door height, overlay, and soft close features as needed for optimal performance. The system ensures smooth, quiet operation with low opening forces, suitable for home or commercial cabinetry with four sliding doors.

FAQ

1. What are the supported door thickness and weight specifications?
   The kit is designed for door panels with thickness between 18–30 mm and up to 60 kg per panel.

2. Is the silent soft-close function included for all door positions?
   Yes, the integrated Silent System provides soft closing and opening for all doors.

3. Can the kit be used with different door materials?
   The system is suitable for both wooden doors and aluminum frame doors.

4. How much clearance from the floor is required?
   A minimum floor clearance of 17 mm is required for proper installation and operation.

5. Is the system adjustable after installation?
   Yes, adjustments for door height, overlay, and closing force can be made post-installation for precise alignment and performance.
