Usage

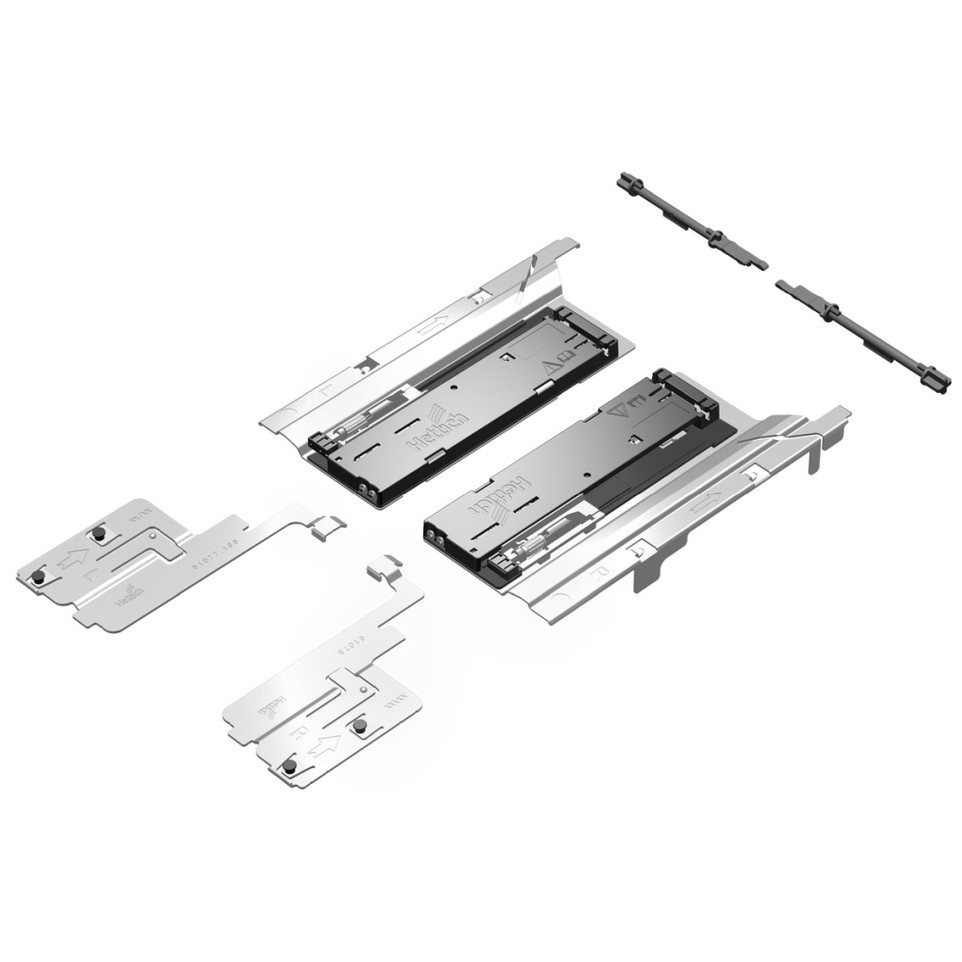

The Push to Open Silent kit is designed for handleless drawers using Actro runners, supporting loads from 8 to 20 kg and compatible with ArciTech drawer systems for cabinet depths between 270 and 650 mm. Suitable for residential or commercial furniture applications.
Advantages
- Enables push-to-open functionality combined with a gentle silent closing mechanism.
- Permits minimal drawer front gaps of just 2.5 mm, enhancing modern design aesthetics.
- Offers three-dimensional front adjustment for standard drawers and four-dimensional adjustment for pot-and-pan drawers.
- Quick and tool-free assembly simplifies installation processes.
- A synchronization option is available to optimize large or wide drawer operation.
Specifications
- Design & Technologies: Double-walled system accessories; integrates both push-to-open and silent closing features; left and right mounting compatibility.
- Sustainability & Standards: Compatible with Hettich’s Actro runners (load class L); suitable for cabinet widths from at least 275 mm up, ensuring versatile fitting across cabinetry ranges.
- Performance: Supports total loaded drawer weight between max. 8–20 kg; fits nominal lengths from 270 mm up to 650 mm without loss of function[1].
- Differentiating Features: Minimum gap requirement of only 2.5 mm, mechanical store-and-release energy system slows closing movement, and adaptable synchronization function available[1].
How it works
The kit uses a mechanical activator that releases the drawer when lightly pressed on the front panel—no handles needed—while an integrated damper ensures controlled, quiet retraction when closing. Synchronization adapters allow smooth opening even on wider fronts.[1]
