Product

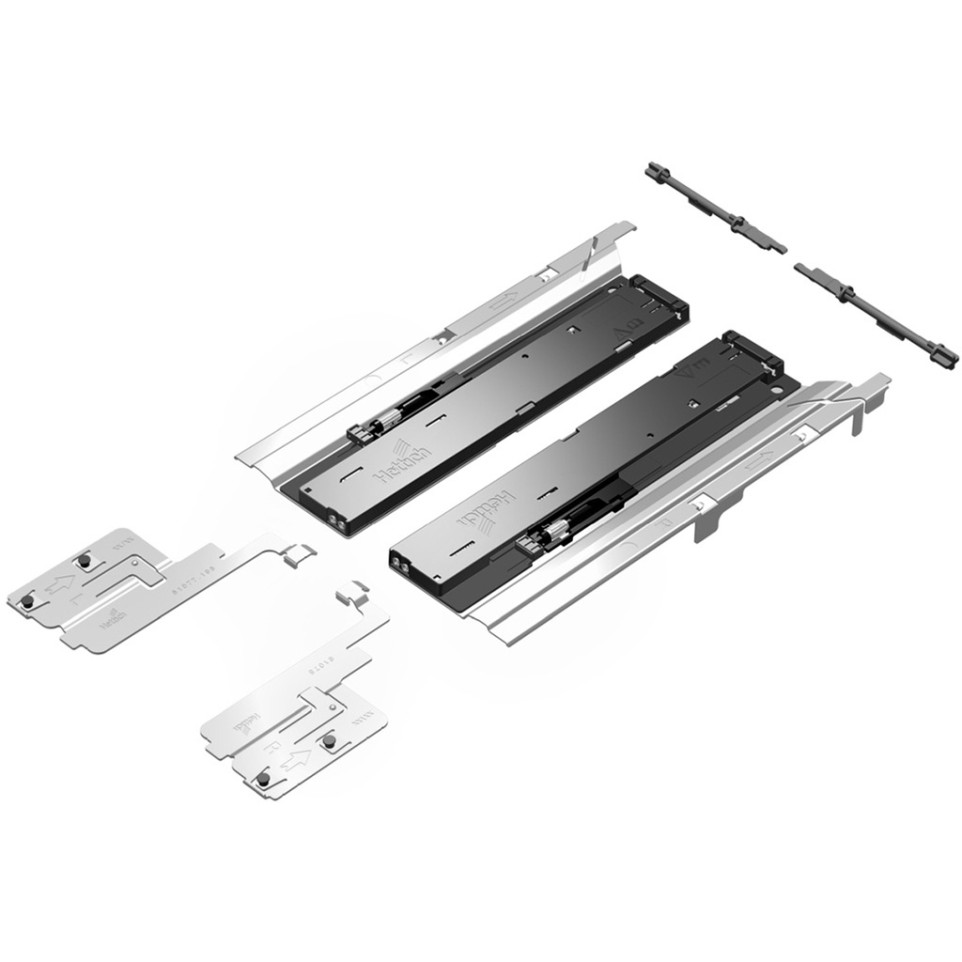

Push to Open Silent Kit max.20 to 70kg for Actro runners, suitable for Hettich ArciTech drawers with depths from 450 to 650mm. Designed for seamless, handle-free opening and enhanced soft closing, ideal for residential and commercial cabinetry.
Specifications
- Combined push-to-open mechanism with integrated Silent System technology
- Supports drawer weights from 20 to 70kg and compatible with nominal lengths (depths) between 450mm and 650mm
- Allows for a minimum front gap of 2.5mm; can be used with cabinet body widths from 275mm
- Features three-dimensional front adjustment for drawers, four-dimensional for pot drawers
- Includes energy reserve for soft closing and guided closing/opening
- Facilitates tool-free installation
- Set includes left/right push-to-open units, activators, and adapters for synchronization
Usage
The kit enables drawers to open with a gentle push, eliminating the need for handles while providing a soft and controlled closing thanks to the Silent System. Synchronization is recommended for optimal activation, especially with wide fronts or multiple drawers. Adjustments can be made for precise front alignment. The system is suitable for all nominal drawer lengths within supported cabinet body widths.
FAQ
- Which drawer weights are supported?
The kit accommodates drawers with loads ranging from 20kg up to 70kg.
- Is special mounting equipment required?
No, the system is designed for tool-free installation.
- Can the drawers be opened by pulling as well as pushing?
Yes, both push-to-open and pull-open options are supported.
- Is synchronization mandatory for all installations?
Synchronization is recommended for perfect function, especially for wide or multi-drawer setups.
- What adjustment options are available?
The system allows for three-dimensional front adjustment on standard drawers and four-dimensional on pot drawers.
