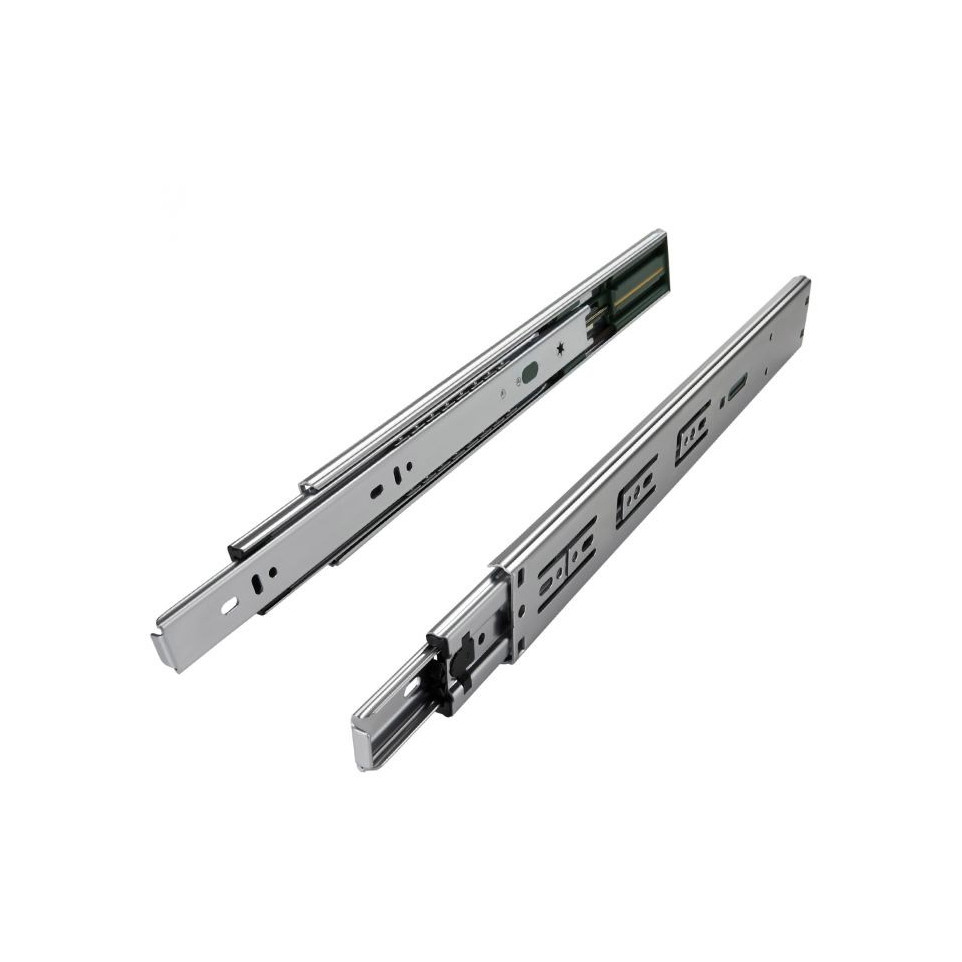

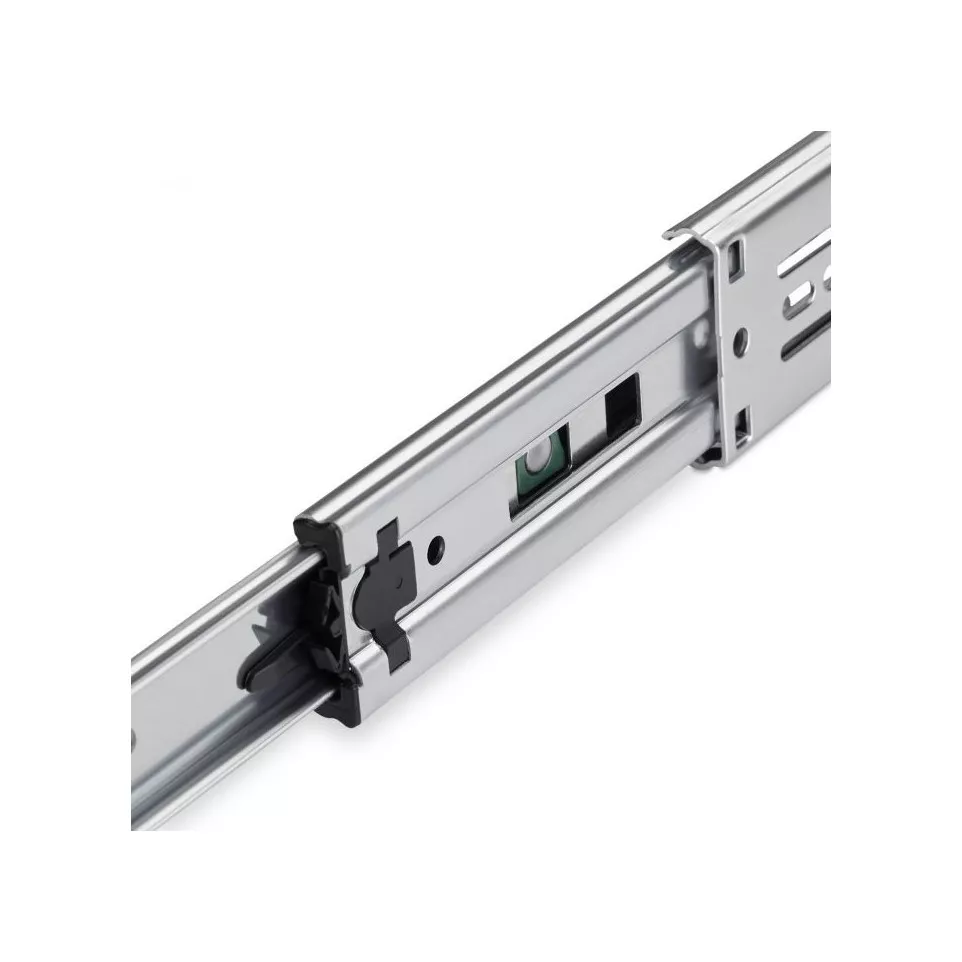

Full Extension Ball Bearing Drawer Slides 650mm Soft Close H45 45kg per piece

Full Extension Ball Bearing Drawer Slides 650mm Soft Close H45 45kg per piece
Full Extension Ball Bearing Drawer Slides 650mm Soft Close H45 45kg per piece
Full Extension Ball Bearing Drawer Slides 650mm Soft Close H45 45kg per piece
Full Extension Ball Bearing Drawer...
Full Extension Ball Bearing Drawer...
Full Extension Ball Bearing Drawer...

Estimated delivery date :  Wednesday 10 June
€29.89 HT
In stock

Ref : FGT-248227

Variantes

Full Extension Ball Bearing Drawer Slides 700mm Soft Close H45 45kg per piece Full Extension Ball Bearing Drawer Slides 700mm Soft Close H45 45kg per piece Full Extension Soft-Close Ball Bearing Drawer Slides 350mm H45 45kg per piece Full Extension Soft-Close Ball Bearing Drawer Slides 350mm H45 45kg per piece
Quantity

Add to your shopping List

You must be logged


Description

Usage

This full extension ball bearing runner is designed for drawers in furniture, industrial units, or cabinetry where smooth, quiet closing with a softclose feature is required. Suitable for applications requiring a robust slide at 650mm length.

Advantages

  • Ensures gentle and noise-free drawer closure thanks to integrated softclose technology.
  • Supports up to 45 kg per slide for heavy or fully loaded drawers.
  • Total extension allows complete access to the drawer's contents.
  • Smooth operation reduces wear on both the runner and furniture over time.
  • If mounted flat (horizontally), load capacity drops to about 25% of specified value.

Specifications

  • Robust construction with precision ball bearings; steel components typically galvanized for corrosion resistance.
  • Durable design tested for high cycle performance—commonly certified beyond tens of thousands of opening/closing cycles under load[1][3][4].
  • Total length: 650 mm; height: approximately H45 (45 mm); maximum load capacity: up to 45 kg per piece[2]. Installation thickness is typically around 12.7 mm per side[2][3].
  • Differentiated by its integrated hydraulic softclose mechanism, providing controlled motion during final closure phase[6][7][9]. Full extension enables complete drawer accessibility.

How it works

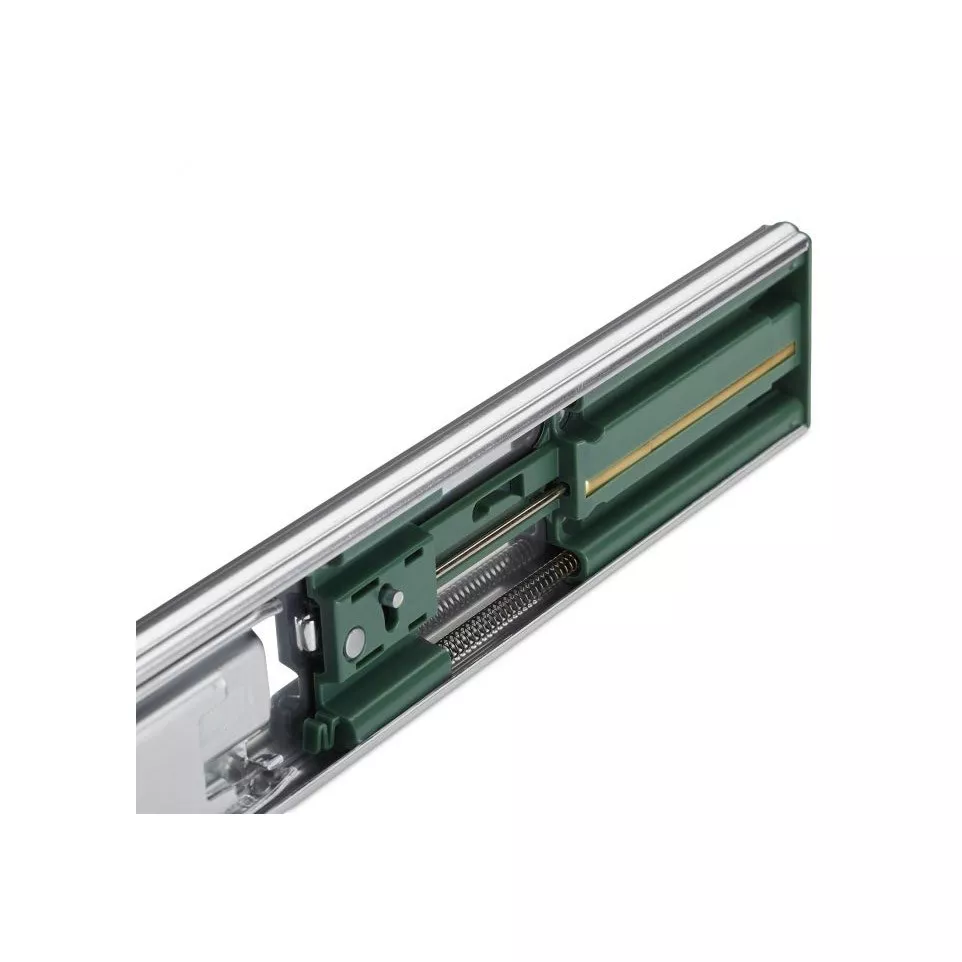

The slide uses hardened ball bearings for smooth movement along its full length. When closing, an internal hydraulic damper activates automatically in the last few centimeters, gently pulling and securing the drawer quietly without slamming[6][7][9].

See more

Product Details

Brand Autre
Thickness (mm) 12,70
Height (mm) 45,00
Load capacity (kg) 45
Nominal length (mm) 650
Output type totale
