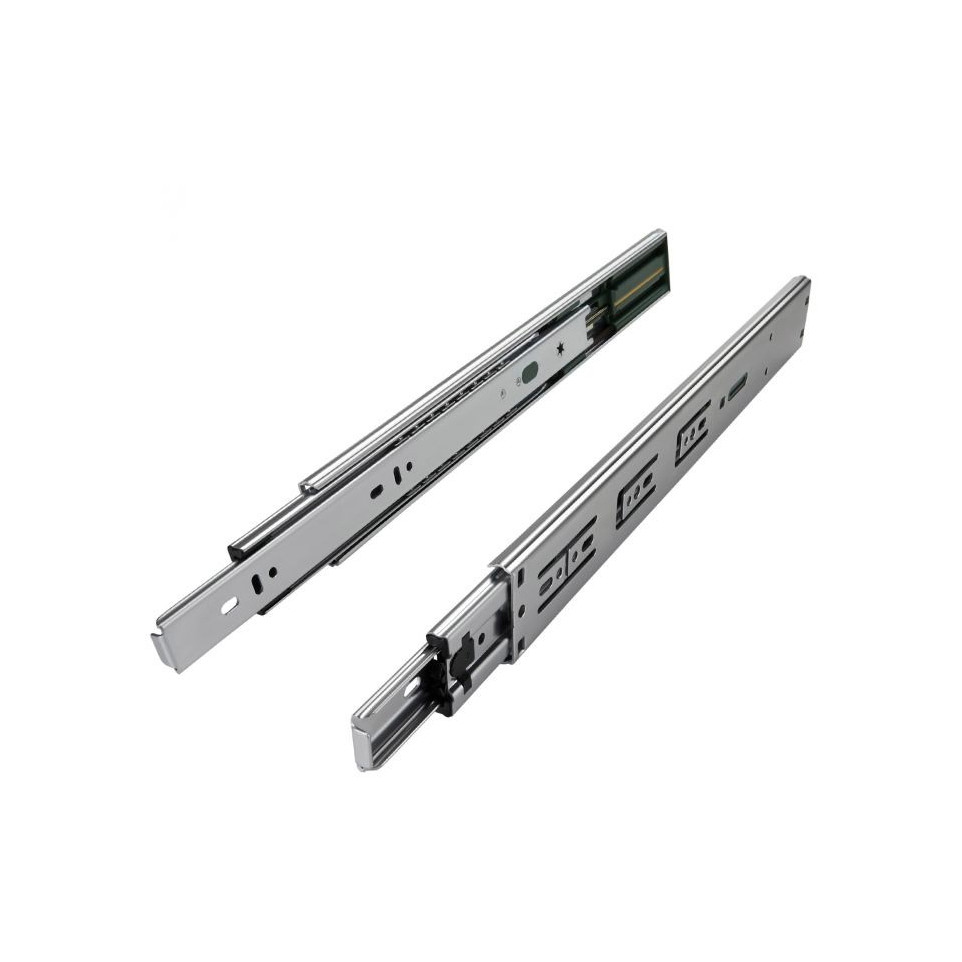

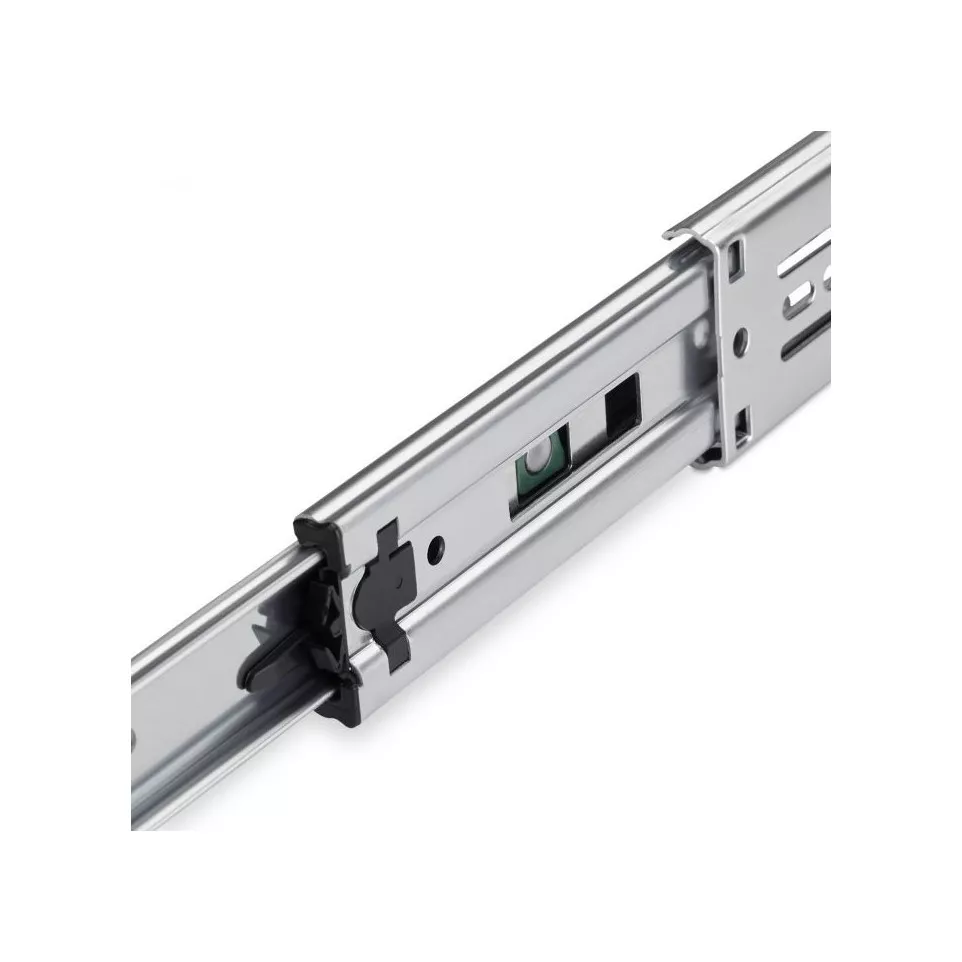

Full Extension Ball Bearing Drawer Slides 700mm Soft Close H45 45kg per piece

Full Extension Ball Bearing Drawer Slides 700mm Soft Close H45 45kg per piece
Full Extension Ball Bearing Drawer Slides 700mm Soft Close H45 45kg per piece
Full Extension Ball Bearing Drawer Slides 700mm Soft Close H45 45kg per piece
Full Extension Ball Bearing Drawer...
Full Extension Ball Bearing Drawer...
Full Extension Ball Bearing Drawer...

Estimated delivery date :  Wednesday 10 June
€30.42 HT
In stock (2)

Ref : FGT-248228

Variantes

Full Extension Ball Bearing Drawer Slides 650mm Soft Close H45 45kg per piece Full Extension Ball Bearing Drawer Slides 650mm Soft Close H45 45kg per piece Full Extension Soft-Close Ball Bearing Drawer Slides 350mm H45 45kg per piece Full Extension Soft-Close Ball Bearing Drawer Slides 350mm H45 45kg per piece
Quantity

Add to your shopping List

You must be logged


Description

Usage

This full-extension 700mm soft-close ball bearing runner is designed for drawers in furniture, industrial equipment, and machine construction where controlled, smooth movement and quiet closure are important.

Advantages

  • Enables the drawer to extend fully for complete access to contents
  • Soft-close mechanism ensures gentle and silent closing
  • Robust load capacity of up to 45 kg per pair supports heavier drawers
  • Smooth ball bearing action reduces wear on hardware and cabinetry
  • If mounted flat (horizontally), load capacity decreases to approximately 25% of the rated value—a consideration in some installations

Specifications

  • Galvanized steel design with hardened steel ball bearings for durability and resistance to corrosion[3]
  • Suitable for intensive use; tested in demanding furniture and industrial applications[3]
  • Total length: 700 mm; height: 45 mm; thickness: approximately 12.7 mm; maximum dynamic load: up to 45 kg when mounted vertically[3]
  • Differentiating feature: integrated soft-close damping system that automatically slows and pulls the drawer closed without slamming[3][6][9]

How it works

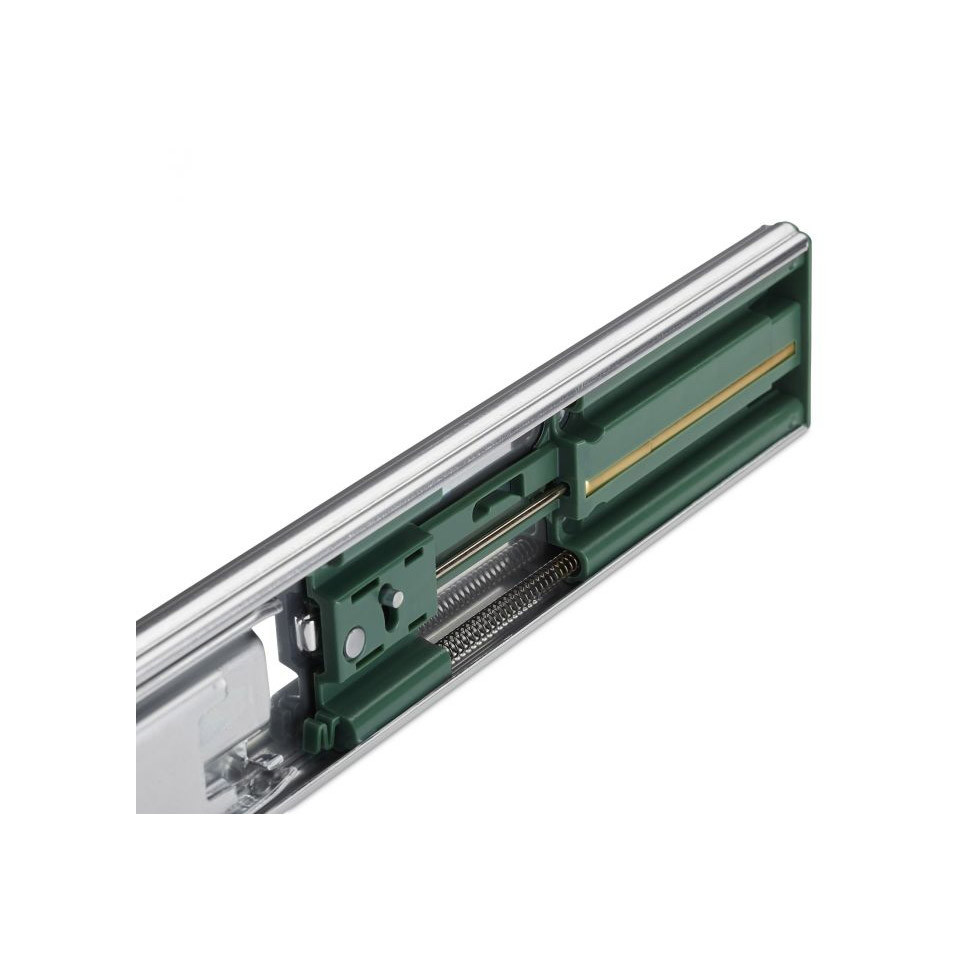

The slide uses precision ball bearings for smooth extension. When closing, a hydraulic damper within the soft-close mechanism gently catches the final movement, automatically drawing the drawer shut quietly and securely after a light push[6][7][9]. No manual force is needed beyond an initial close.

See more

Product Details

Brand Autre
Thickness (mm) 12,70
Height (mm) 45,00
Load capacity (kg) 45
Nominal length (mm) 700
Output type totale
