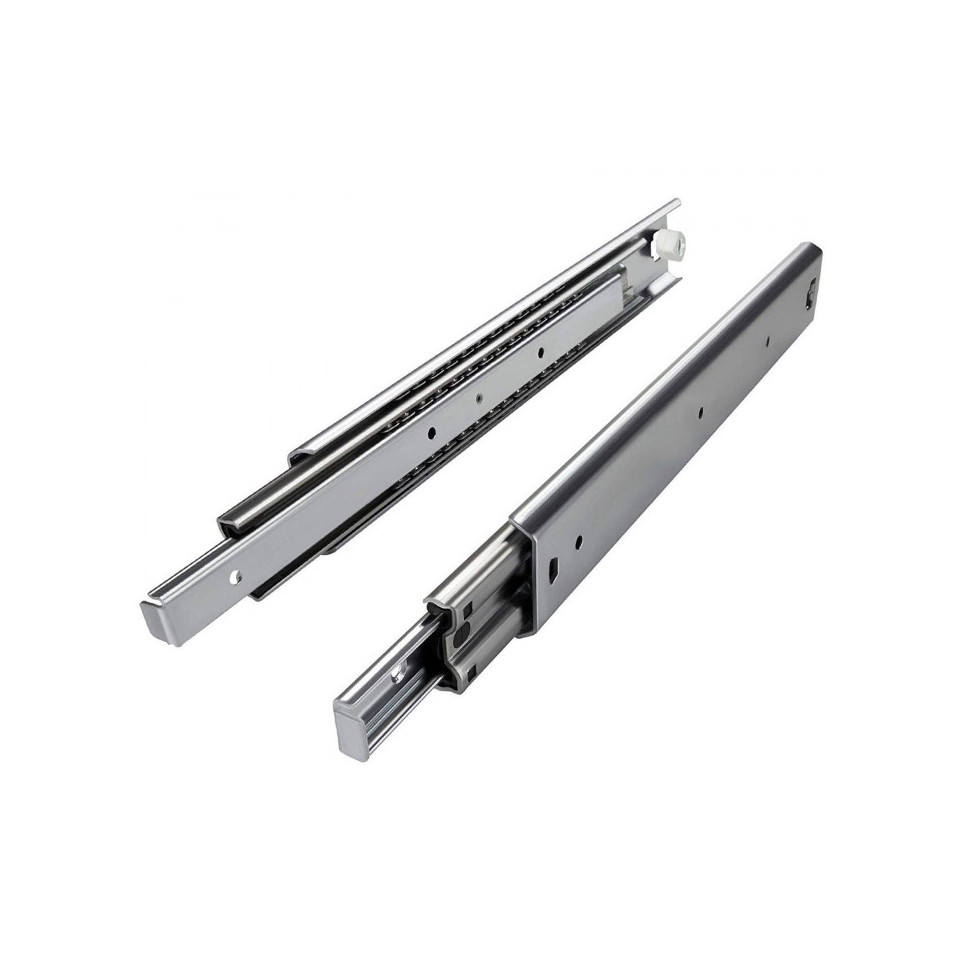

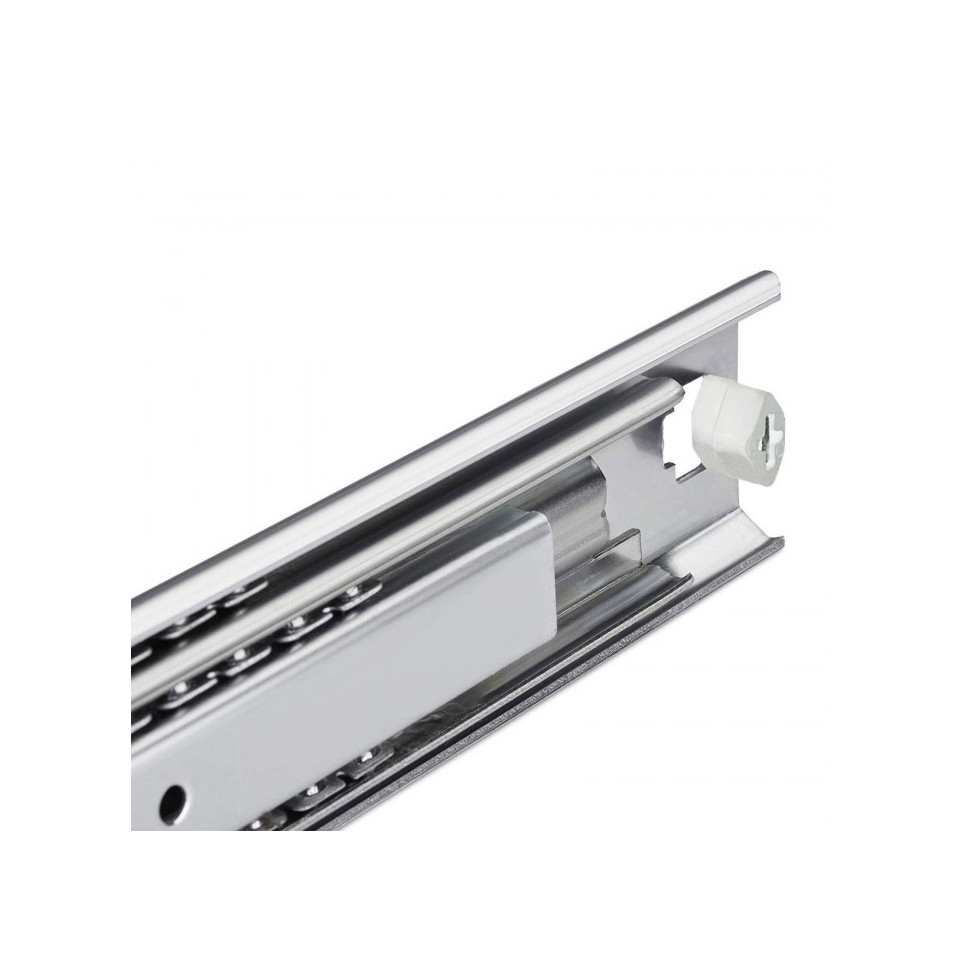

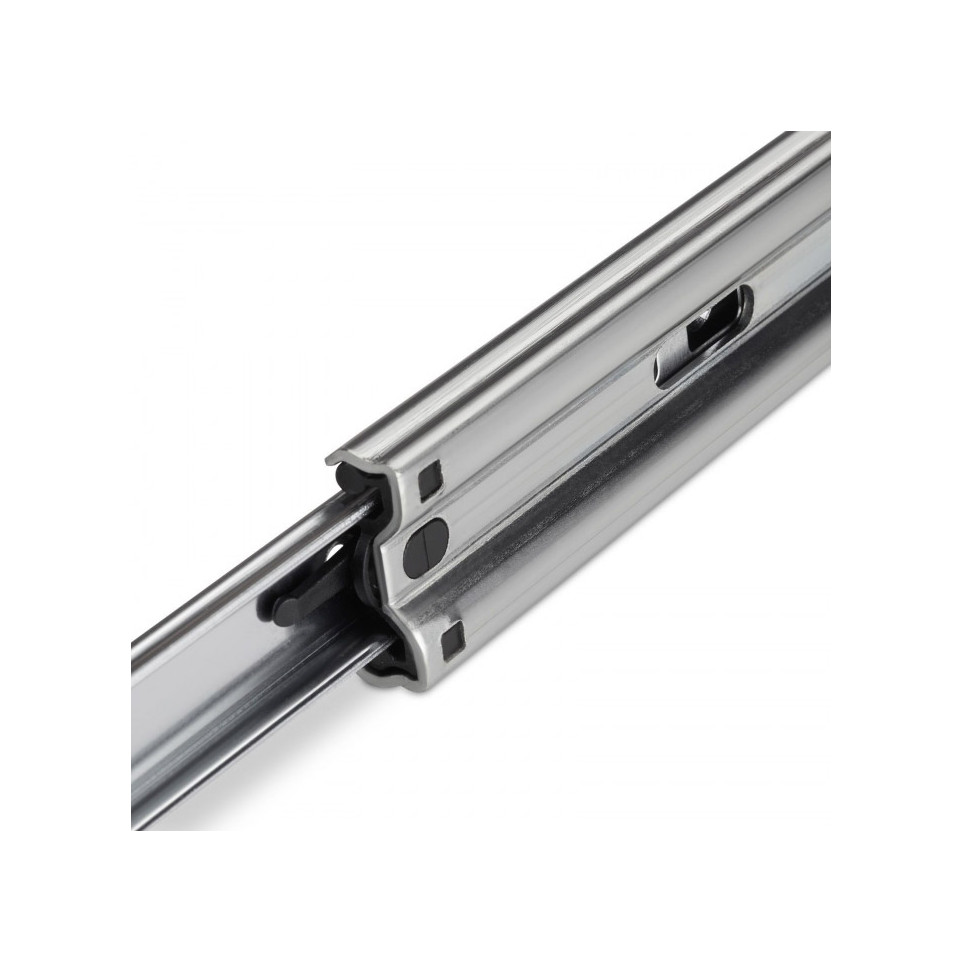

Full Extension Ball Bearing Drawer Slides 1100mm H53 100kg per piece

Usage

Designed for heavy-duty drawers or industrial sliding components, these full-extension ball bearing slides ensure smooth movement and stability for applications requiring a travel length of up to 1100 mm.

Advantages

• Supports loads up to 100 kg per pair, suitable for demanding environments.
• Full extension allows complete drawer access and maximizes usable space.
• Smooth and quiet sliding action thanks to precision-hardened steel ball bearings.
• Robust galvanized steel construction provides high corrosion resistance.
• Slim height design (53 mm) enables compatibility with various drawer sizes; note that load capacity decreases if installed flat.

Specifications

• Main components made of galvanized steel; ball bearings in hardened steel for increased lifespan and reliability.
• Engineered for long-term durability in commercial, industrial, or residential settings; meets standard load requirements for heavy-duty slides.
• Total length: 1100 mm; height: approximately 53 mm; nominal load capacity: up to 100 kg per set when properly mounted vertically.
• Total extension mechanism allows the drawer or component to be pulled out fully without tipping or binding. Slim thickness facilitates installation even in limited spaces.

How it works

The slide consists of interlocking rails with internal hardened steel balls that roll between them. When mounted on the sides of a drawer or partition, they enable the component to extend smoothly along its full length while securely supporting its weight throughout the opening range.
