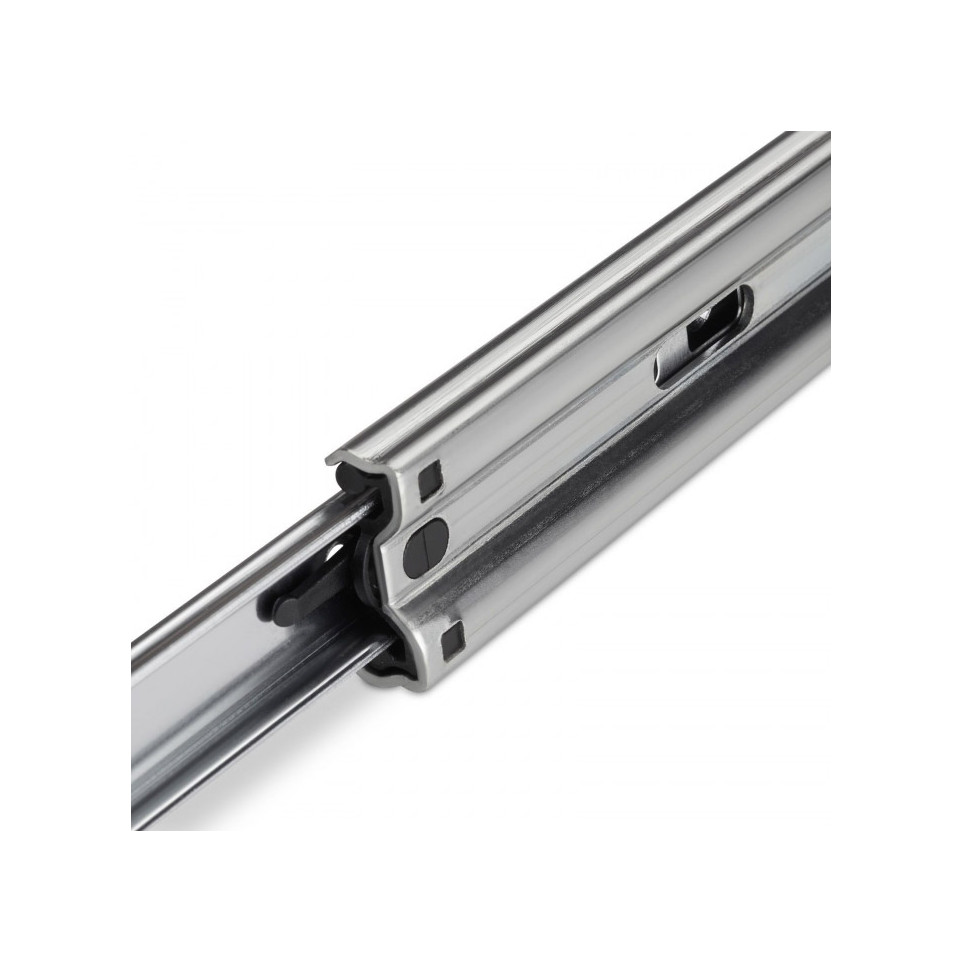

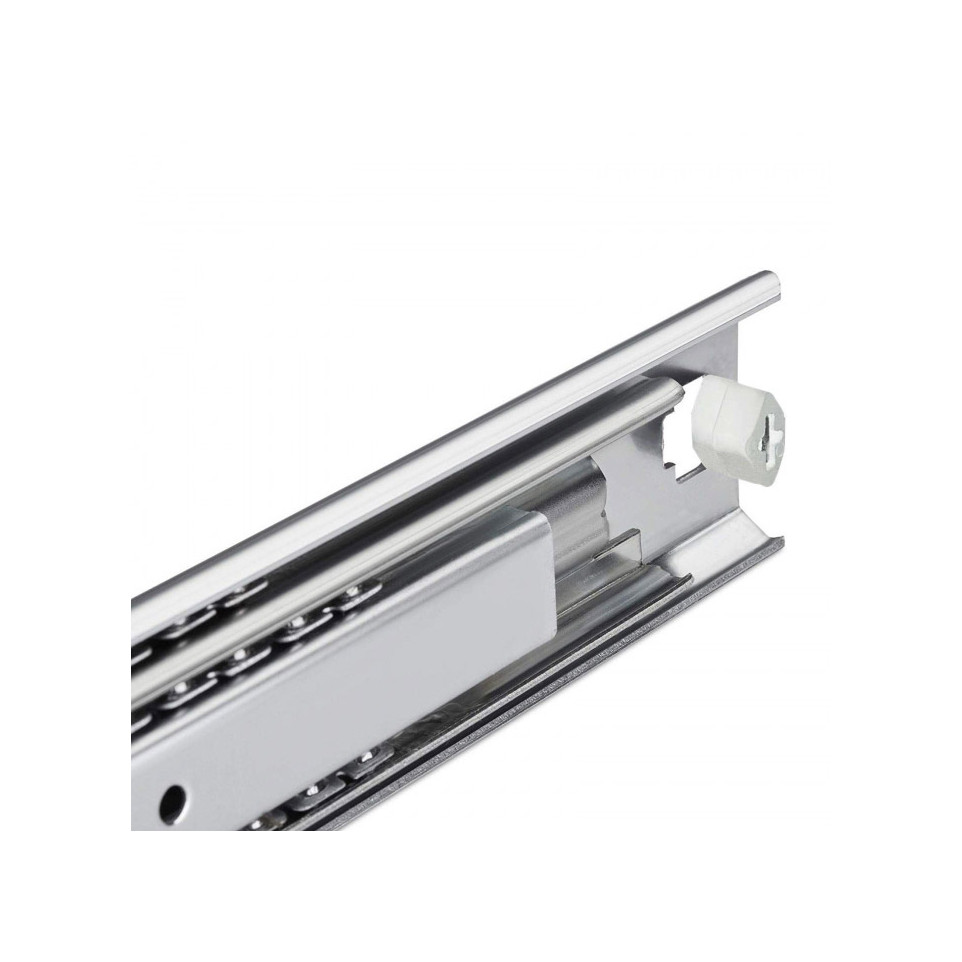

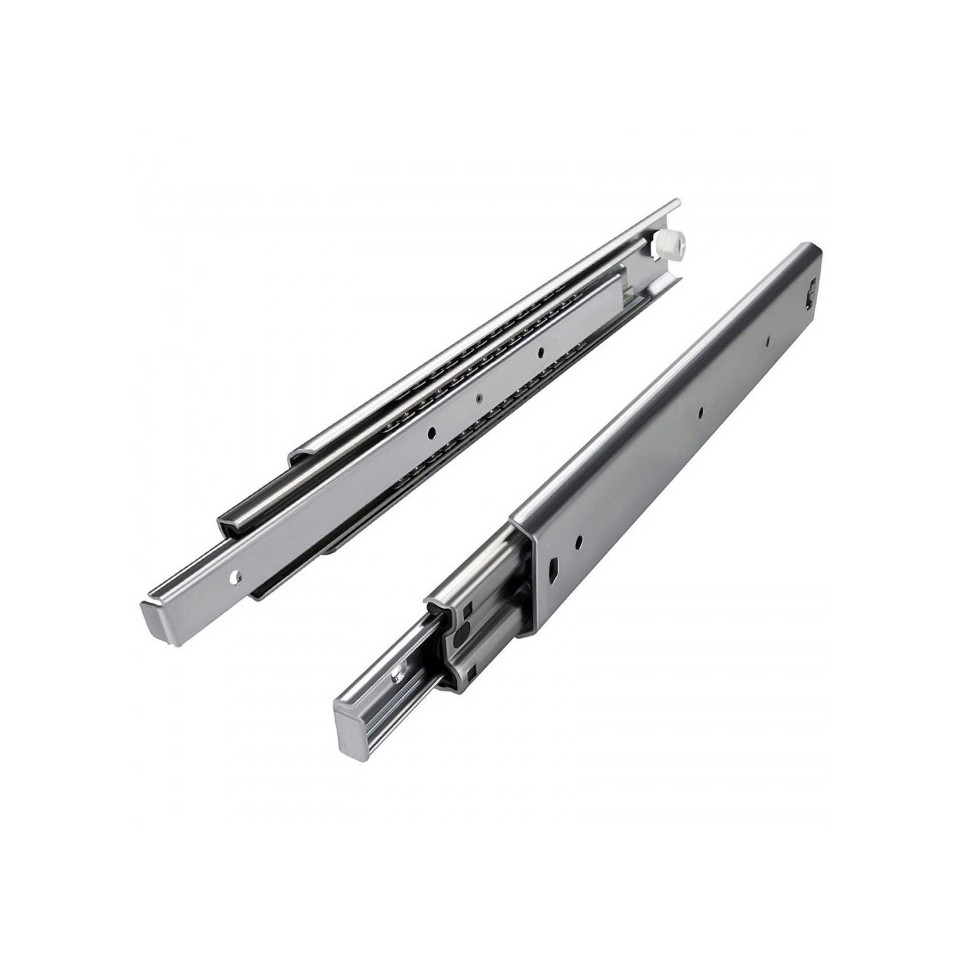

Full Extension Ball Bearing Drawer Slides 1500mm H53 100kg per piece

Usage

The full-extension ball bearing runner 1500mm H53 100kg is designed for installing large drawers or sliding components in furniture, industrial workstations, or storage systems requiring reliable support and smooth movement over extended lengths.

Advantages

• Enables total drawer extension for complete and easy access to contents.
• Supports high loads up to 100 kg per runner, suitable for heavy-duty applications.
• Smooth, stable operation thanks to precision ball bearing technology.
• Constructed from robust steel for enhanced durability and resistance to deformation.
• Larger installation size may require careful planning in compact environments.

Specifications

• Design: Three-section telescopic runner with full extension; made from high-strength galvanized steel with hardened steel ball bearings for long-lasting performance.
• Durability: Engineered for repetitive use under heavy loads; corrosion-resistant finish meets demanding industrial standards.
• Performance: Maximum recommended load per piece is 100 kg; length—1,500 mm; height—53 mm. Maintains stability even at maximum extension and weight capacity.[4]
• Differentiators: Offers one of the longest drawer extensions available on the market with a substantial load rating, making it ideal for oversized drawers or specialist applications such as tool chests or industrial equipment bays.[4]

How it works

Install the runners laterally onto both the cabinet structure and corresponding drawer section. Ball bearings ensure smooth movement along the rail’s full length; users can fully extend drawers without compromising stability or load capacity.
