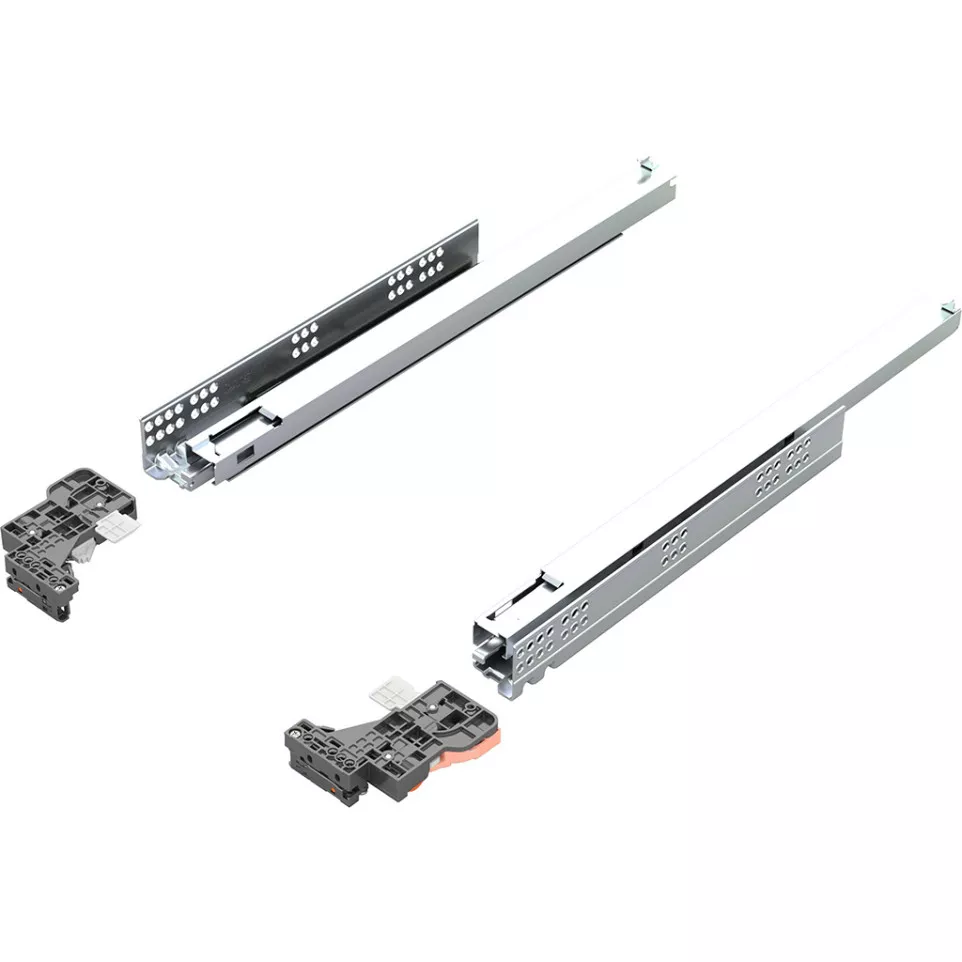

Pair of Magic-Move Synchronized Full-Extension Soft-Close Undermount Drawer Slides 550mm 40kg with Clips per piece

Product

The DTC Magic-Move full-extension soft-close runner pair is designed for premium drawer applications, supporting up to 40 kg with a 550 mm length. Ideal for kitchens, wardrobes, and furniture requiring smooth, silent performance and precise alignment adjustments.

Specifications

• Zinc-plated steel construction with synchronized full-extension technology for durable, reliable drawer operation
• Robust load capacity up to 40 kg; supports side thickness up to 19 mm
• Integrated soft-close mechanism ensures quiet, controlled drawer closure
• 3D adjustment for precise alignment: vertical 0–2.5 mm, lateral ±1.5 mm, depth 0–3 mm
• Undermount design keeps hardware concealed for a clean appearance

Usage

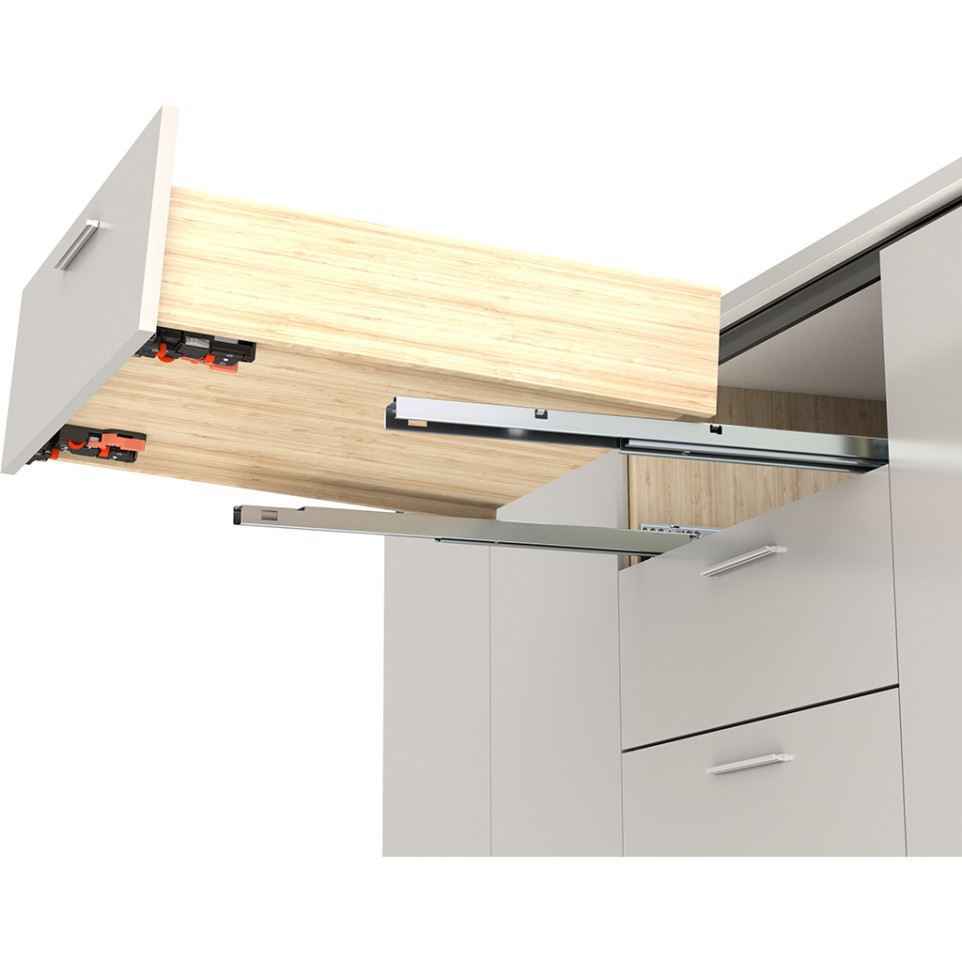

Install the Magic-Move runners under the drawer box for a concealed, full-extension movement. The soft-close system automatically engages to gently and silently close the drawer. Tool-free 3D adjustment enables quick, precise drawer front alignment after installation.

FAQ

1. What is the maximum weight capacity for each pair?
   Each pair supports drawers up to 40 kg when properly installed.

2. Can these runners be used with all types of drawers?
   They are compatible with most kitchen, wardrobe, and furniture drawers with a side thickness up to 19 mm.

3. Does the soft-close feature require additional installation steps?
   The soft-close system is integrated and engages automatically during final drawer closure without extra setup.

4. How do I adjust the drawer’s position after installation?
   Use the built-in 3D adjustment: vertical (0–2.5 mm), lateral (±1.5 mm), and depth (0–3 mm) to align the drawer front.

5. Are the runners visible after installation?
   No, the undermount design keeps the hardware hidden beneath the drawer for a streamlined look.
