Usage

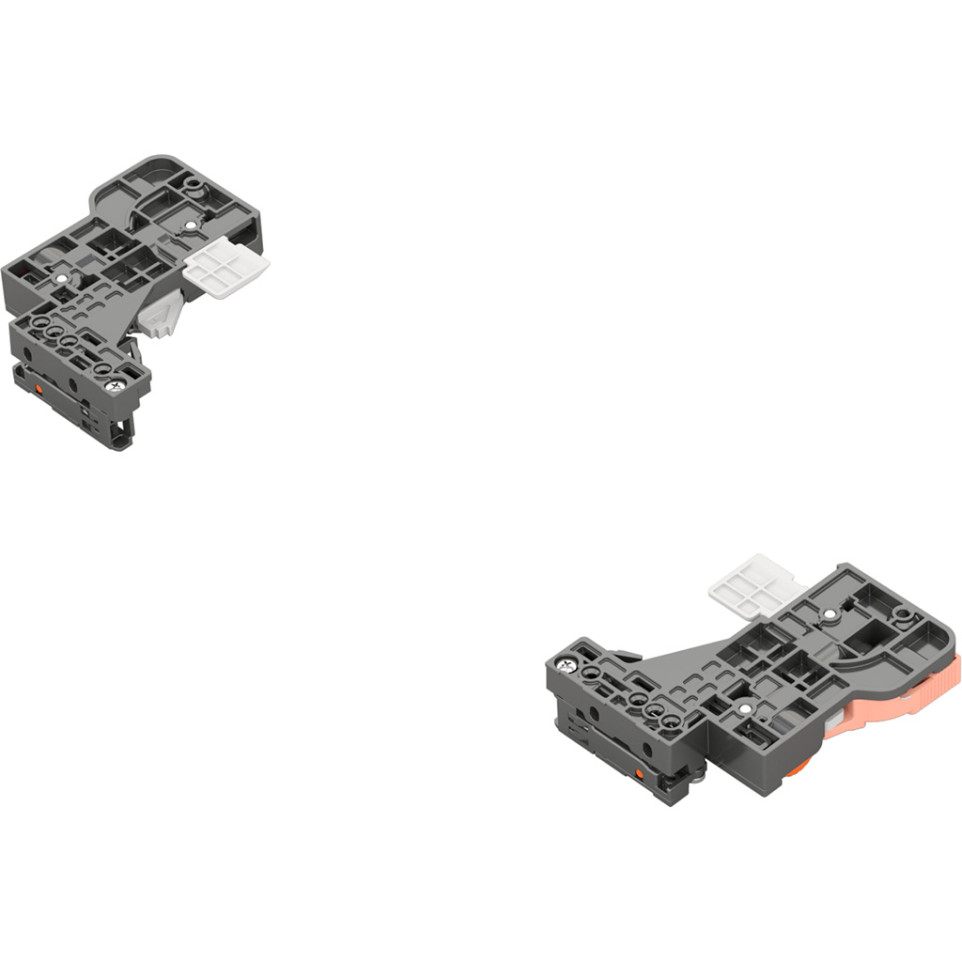

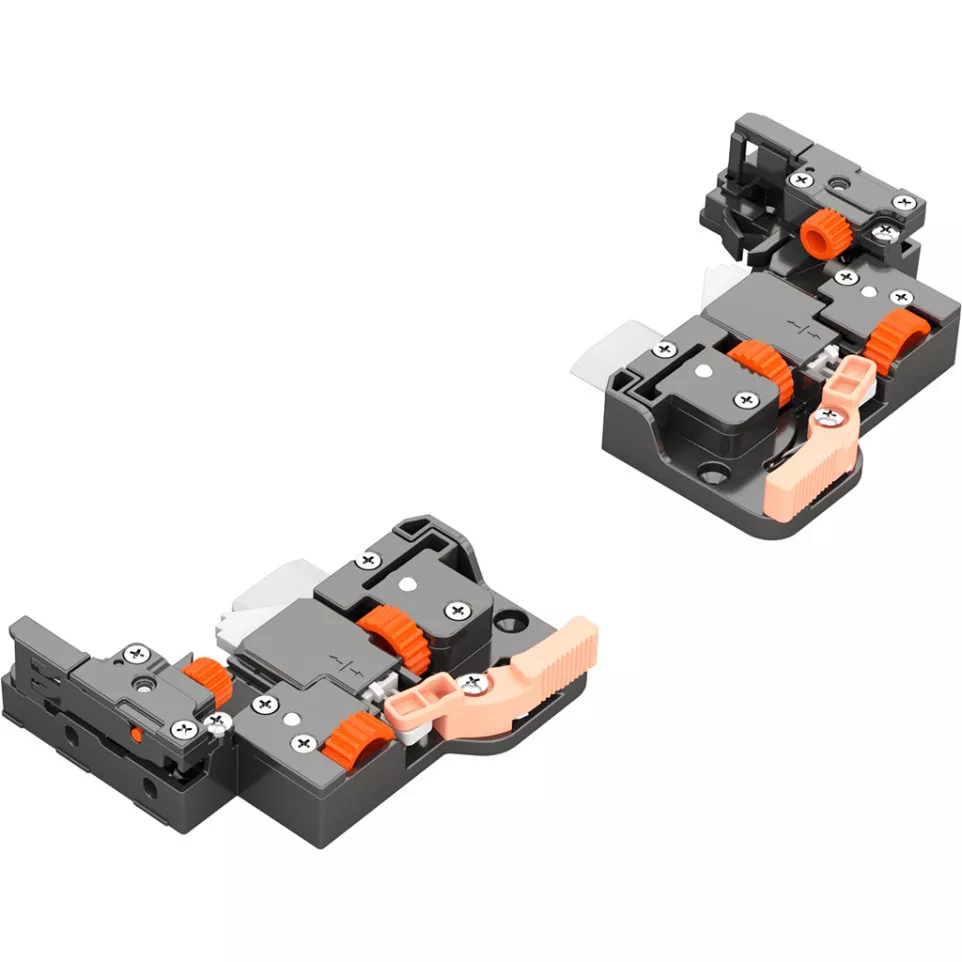

The 3D Locking and Adjustment Clip Kit is designed for secure and precise installation of Magic-Move drawer runners, enabling tool-free vertical, lateral, and depth adjustments in cabinetry and furniture applications.
Advantages
- Ensures quick locking of drawers to runners for safe operation
- Offers accurate three-dimensional adjustment: height up to +2.5 mm, lateral ±1.5 mm, depth up to 3 mm[1][2]
- Compatible with Quadro 4D V6 and Magic-Move full-extension runner systems[1]
- No tools required for most adjustment operations, simplifying setup[1]
- Made from robust grey plastic for long-term durability under daily use[1]
Specifications
- Molded in high-strength grey plastic for resistance to mechanical stress and wear[1]
- No formal certifications; meets typical standards for internal furniture hardware components based on manufacturer data
- Adjustment range: Height (0–+2.5 mm), Side (±1.5 mm), Depth (0–3 mm); supports loads as per runner specification (up to ~60 kg)[1][2]
- Differentiating feature: Enables fast drawer removal or repositioning with simple locking clip mechanism; compatible only with specified runner models[1][3]
How it works

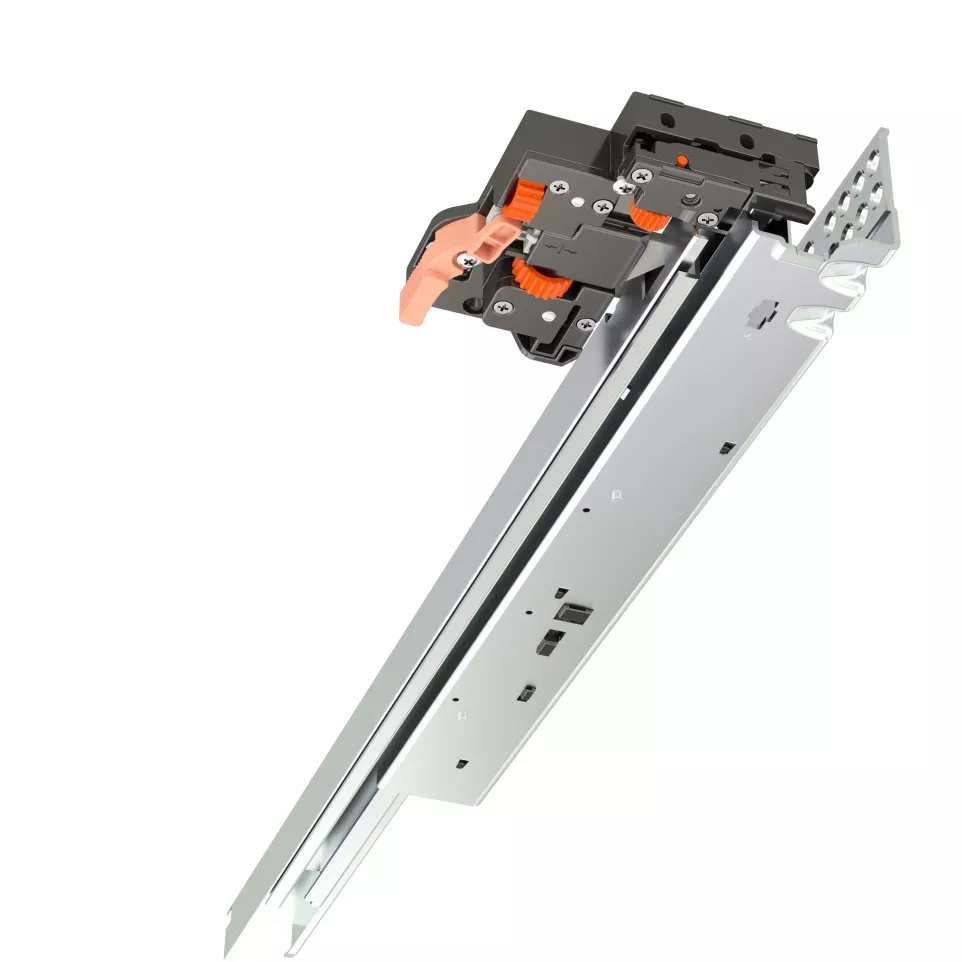

After securing the clips onto the drawer box front panel, users insert the assembled box onto the Magic-Move runners. The clips lock automatically into place; users fine-tune alignment vertically, laterally, or in depth using integrated manual adjusters—without removing drawers or using tools.[1]
