Usage

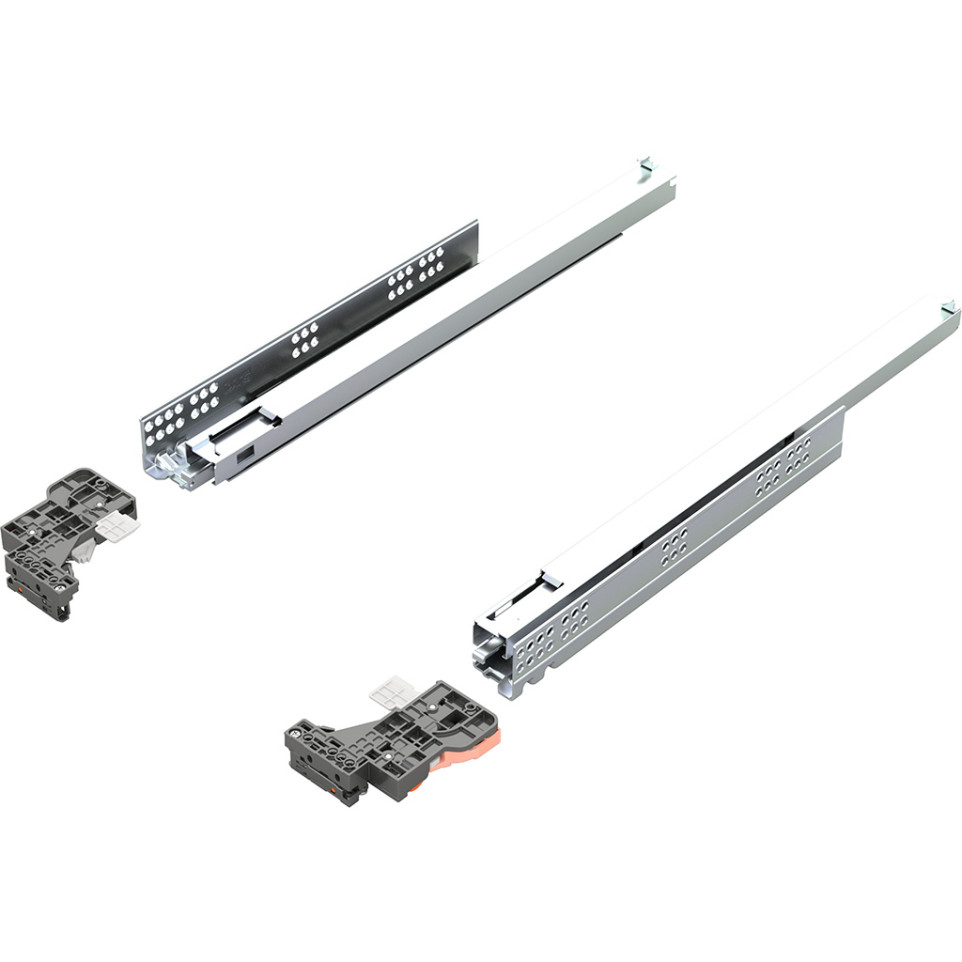

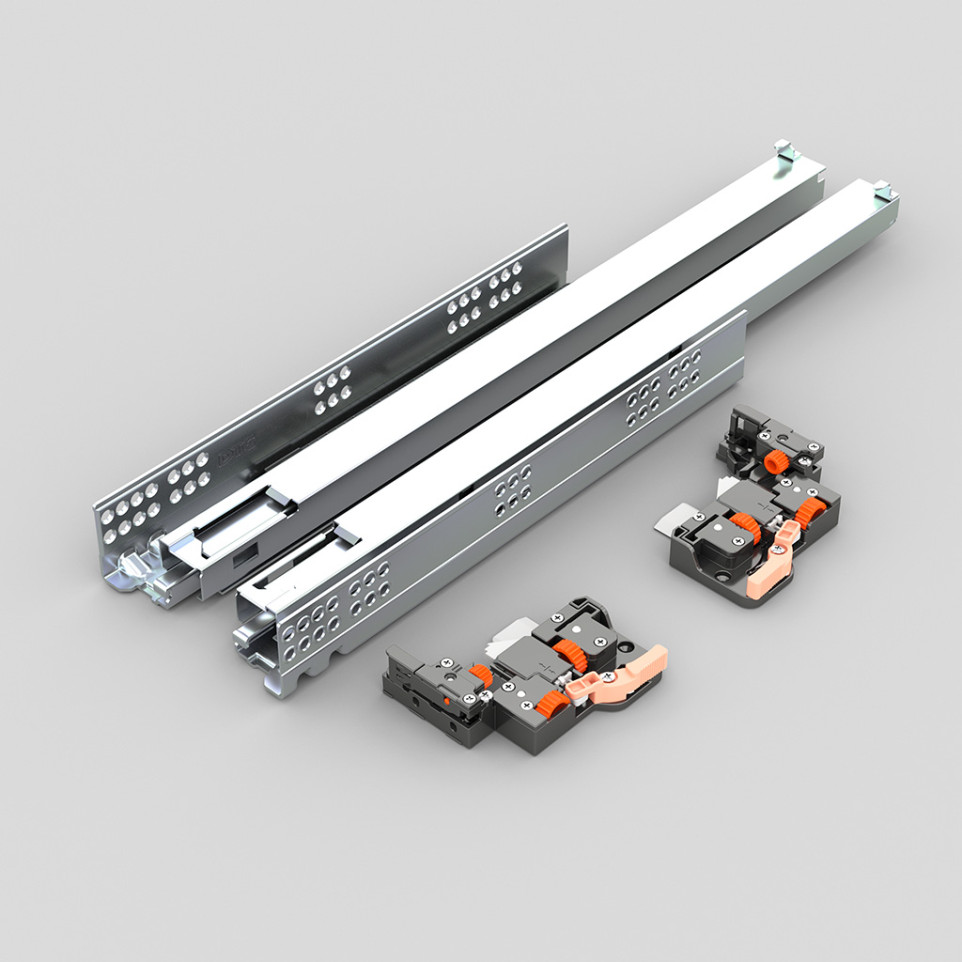

This pair of Magic-Move full-extension runners with integrated soft-close is designed for heavy-duty drawers up to 550mm long, ideal for kitchen, bathroom, bedroom, or office cabinetry requiring smooth, silent and reliable drawer operation.
Advantages
- Synchronized full-extension ensures complete access and simultaneous movement of both sides for stability
- Soft-close mechanism provides smooth and quiet closing action
- High dynamic load capacity up to 60 kg supports large or heavily loaded drawers
- Concealed undermount design keeps hardware hidden for a clean cabinet appearance
- Tool-free three-dimensional adjustment enables precise alignment during installation
Specifications
- Synchronized full-extension runners made from zinc-plated steel with nylon rollers for durable performance and low-friction movement[1][3][5]
- No visible outside hardware; undermount installation preserves cabinet aesthetics[1][5]
- Bearing capacity: up to 60 kg per pair; maximum recommended drawer length: 550 mm[1][5]
- Soft-close damping system integrated in the slide mechanism eliminates slamming[4][5]
- 3D front clip brackets allow easy height, side-to-side and depth adjustments without tools[3][5]
How it works

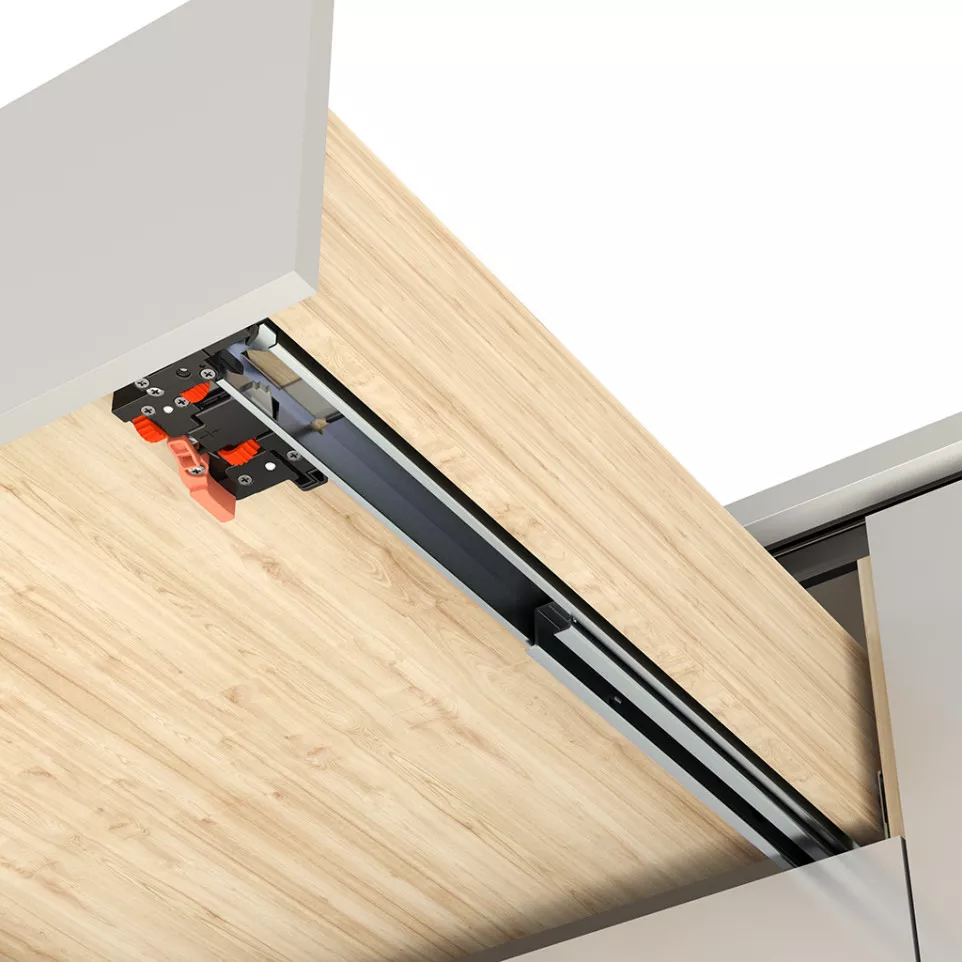

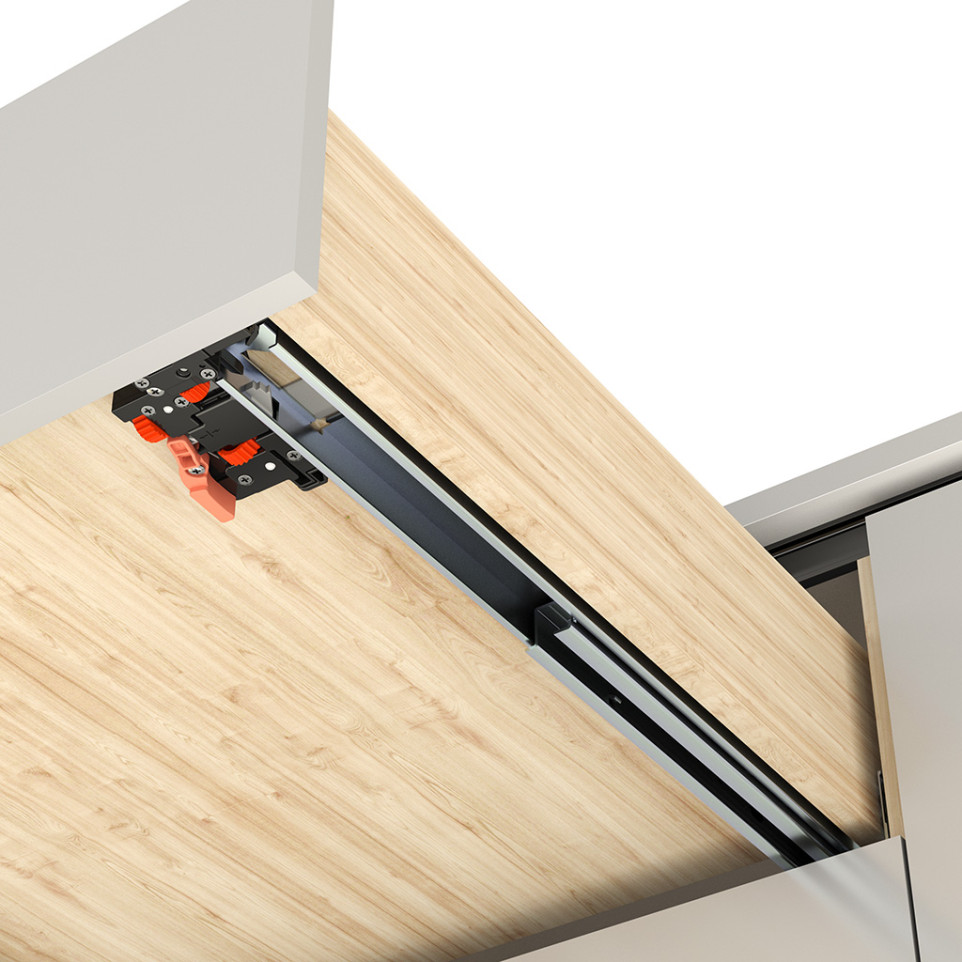

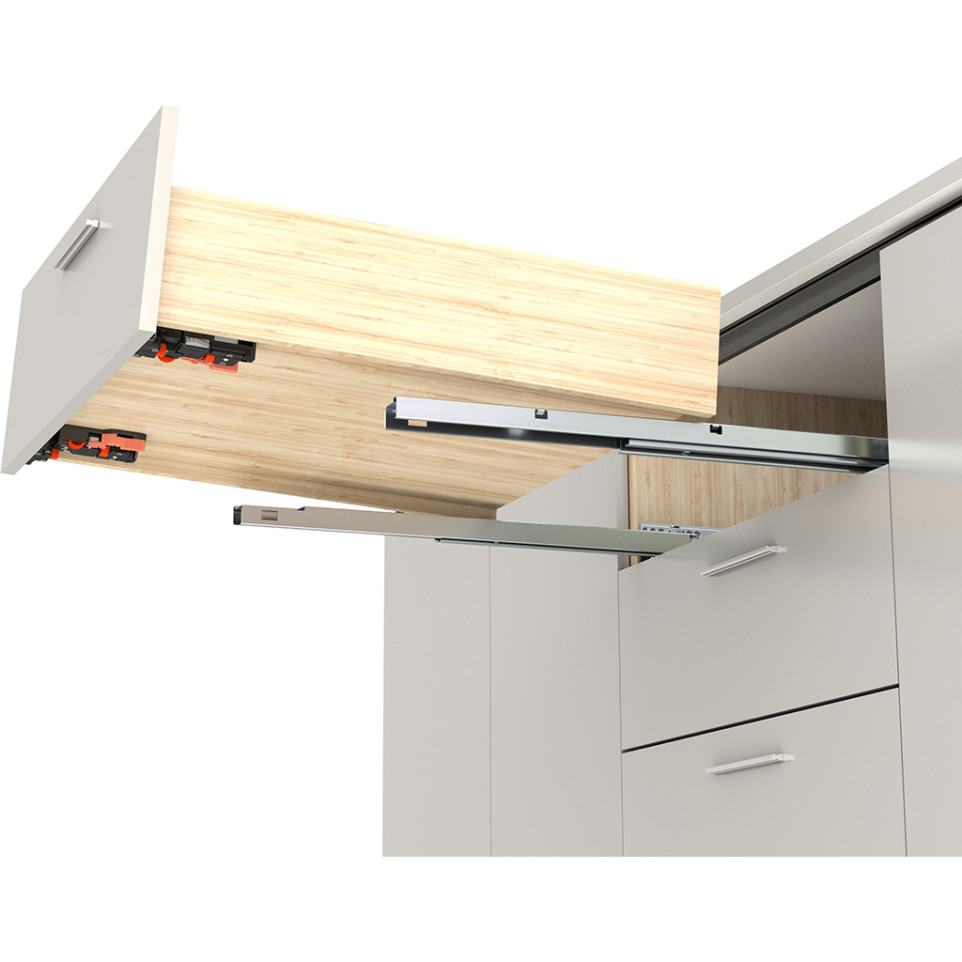

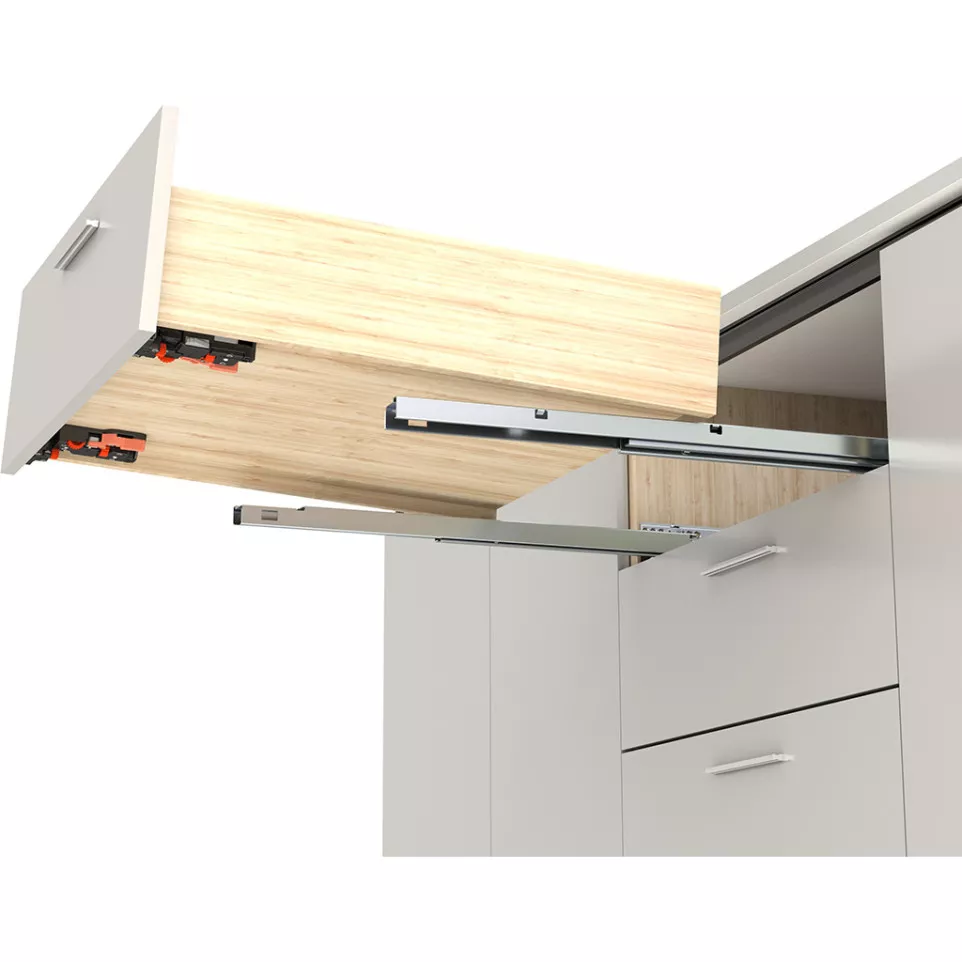

The slides are fixed under the drawer base. When opened, synchronized mechanisms ensure stable extension. To close, the built-in soft-close damper engages automatically—silently guiding the drawer shut. The included clips enable fast mounting and precise fine-tuning after installation.
