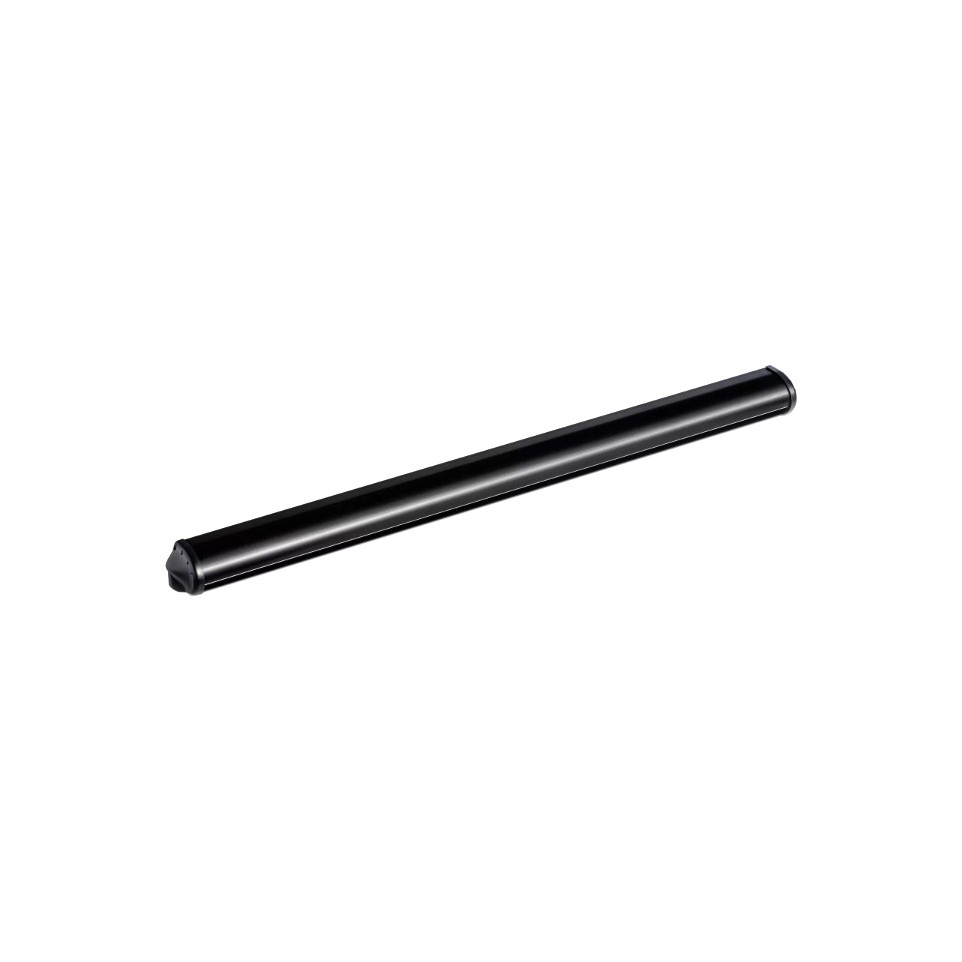

BEA 4Safe 900 On Door Safety Sensor 900mm each

Usage

The 4SAFE 900mm safety detector is designed for secure operation of automatic swing doors. It is used to prevent accidental contact by monitoring the area in front of the door leaf, especially in environments requiring elevated user protection.

Advantages

• Actively prevents contact between moving doors and users using distance-measuring infrared technology
• Provides a three-dimensional detection area, enhancing safety for people with disabilities
• Easy installation and adjustment with push-button setup and fine-tuning via DIP-switches
• Daisy-chain capability allows up to six modules for full door coverage
• Suits varied floor types, including contrasting surfaces such as stainless steel plates or water puddles; minor drawback: requires compatible power supply (SELV)

Specifications

• Active infrared technology with background suppression; durable plastic housing; fog-proof front face available as accessory
• Lifespan up to 20 years; certified to EN 16005, EN ISO 13849-1 Performance Level "c" CAT.2, IP54 rated for dust and splash resistance
• Detection field: width of up to 400 mm x depth of up to 70 mm at a mounting height of two meters (adjustable from approximately 1.3 m–3.5 m); typical reaction time is just under milliseconds (64 ms); supports mounting heights from approximately 1.1 m–3.5 m depending on installation needs and reflectivity requirements; supply voltage: AC/DC range from12 V –24 V AC ±10%, or DC range from12V–30V DC -5%/+10%
• Differentiators include infinite presence time detection, tool-assisted visualisation ("Spotfinder"), remote control compatibility, modular design enabling multiple sensors per doorway, high resistance against condensation with non-condensing humidity tolerance (0-95%), operational temperature range -25°C to +55°C.

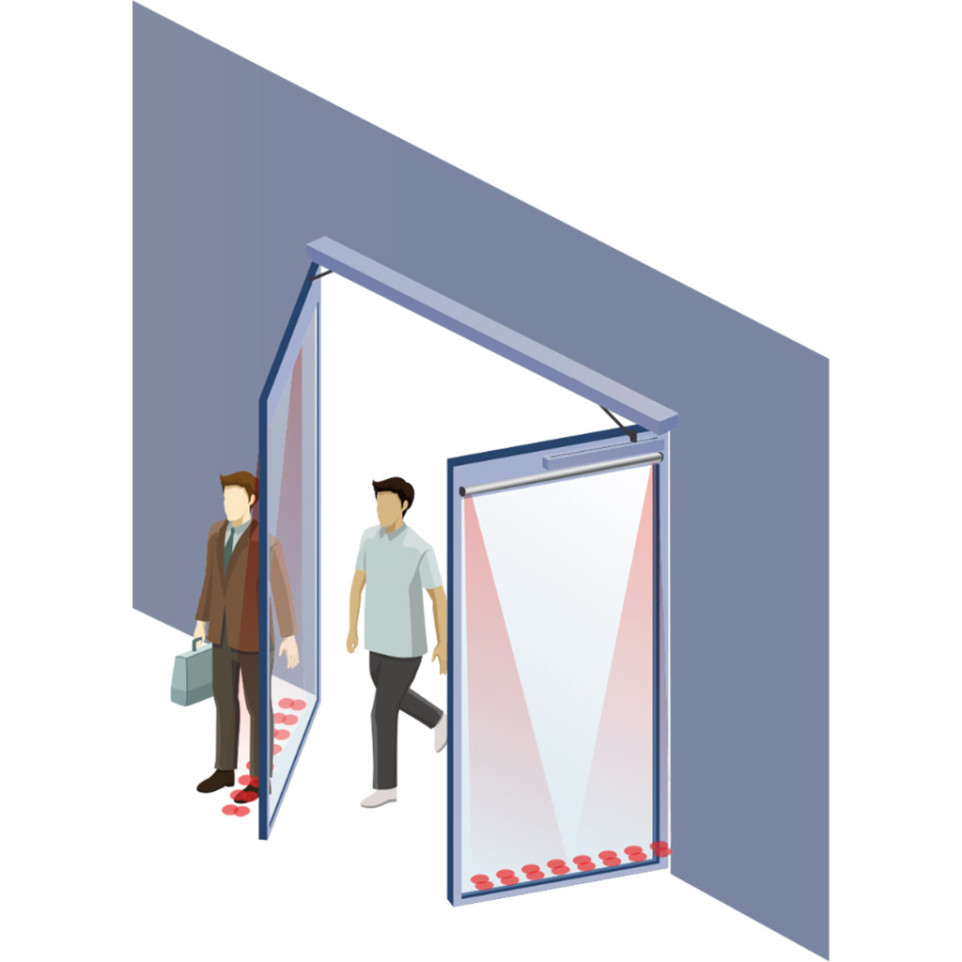

How it works

The sensor uses active infrared beams arranged across its length to detect movement or presence within a defined area in front of the swing door leaf. When an object or person enters this zone while the door moves, it signals the operator to halt or reverse motion—ensuring safe passage for all users.
