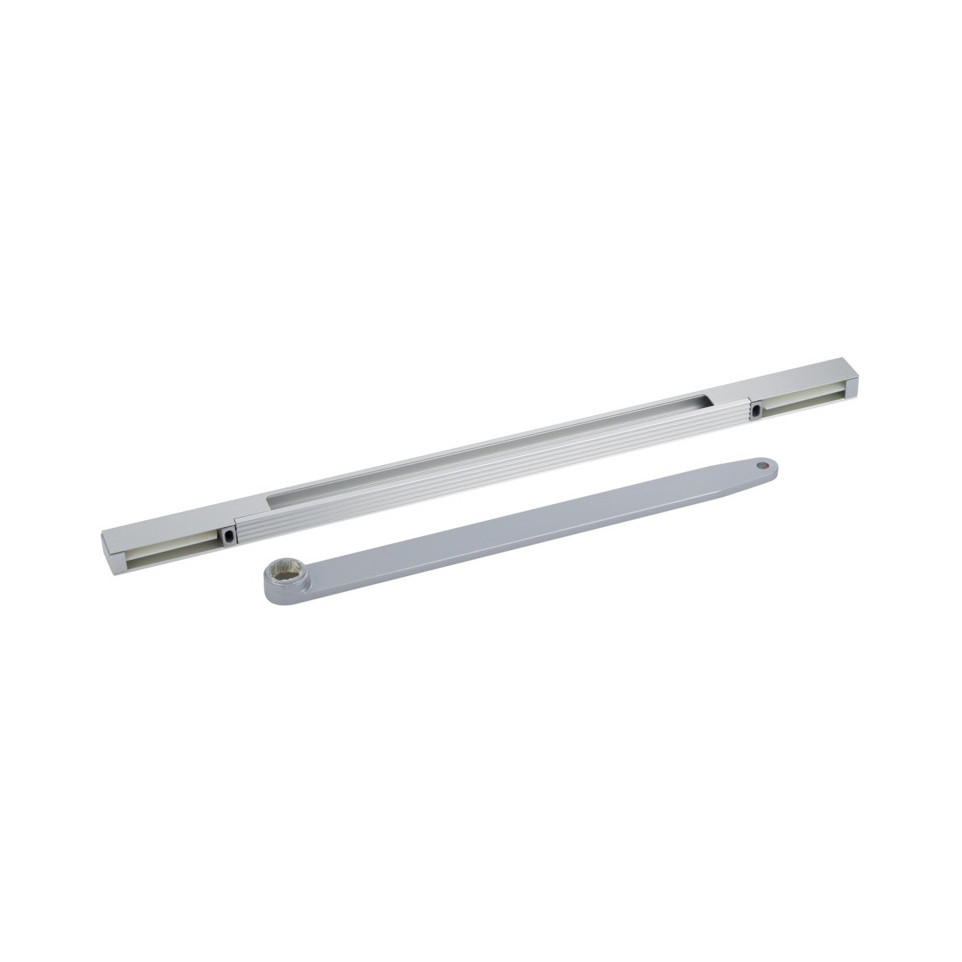

Dorma ED 100 and ED 250 Slide Channel Arm Set for Lintel Depth -30 to 30 mm Silver per piece

Dorma ED 100 and ED 250 Slide Channel...

Estimated delivery date :  Tuesday 9 June
€219.86 HT
In stock

Ref : FGT-8209101

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Usage

The Dorma jeu de bras glissière is intended for mounting ED 100 and ED 250 drives on hinged doors with a lintel depth from -30 mm to +30 mm, enabling reliable automatic door operation in commercial and public settings.

Advantages

  • Compatible with both Dorma ED 100 and ED 250 swing door operators for versatile installation.
  • Suitable for single- or double-leaf doors, including fire and smoke-rated applications.
  • Simplifies mounting of door drives in situations where the lintel depth varies between -30 mm to +30 mm.
  • Makes use of robust slide channel technology to ensure consistent movement and reduced wear over time.
  • A minor limitation: restricted usage if reveal depths exceed specified range, which may require alternative accessories.

Specifications

  • Designed for use with Dorma electromechanical swing door operators (ED 100/ED 250) using slide channel arm configuration.
  • Satisfies standards for automated access systems; suitable for integration into fire and smoke protection doors as required by EN regulations.
    Durability tested with associated operators up to one million cycles.[7][9]
  • Permits installation at lintel (reveal) depths from -30 mm up to +30 mm relative to the frame; supports operator drive forces as per standard configurations—up to maximum allowable leaf weights (160 kg/ED100, up to specified threshold on ED250 depending on reveal depth).[3][9]
  • Differentiating feature: precise fit adjustment accommodates a wide range of doorway reveals without compromising operational integrity or automation performance.[1][3]

How it works

The jeu de bras glissière mounts between the door operator and the hinged door. It transmits force via a sliding mechanism, ensuring smooth automated opening and closing even when the space above (lintel) varies within -30mm to +30mm tolerance.[1][3]

See more

Product Details

Brand Dorma
FGT-8209101
New
