Product
The OPERA GATE-LOCK 28800 is a high-security electric floor lock designed for automatic gates. Built for durability in outdoor environments, it ensures robust, reliable locking with mechanical access and electromechanical control.
Specifications
- Stainless steel, aluminum, and anticorrosion-treated steel body for maximum resistance
- Stainless steel faceplate and lock body; rubber-protected cylinder port for weatherproofing

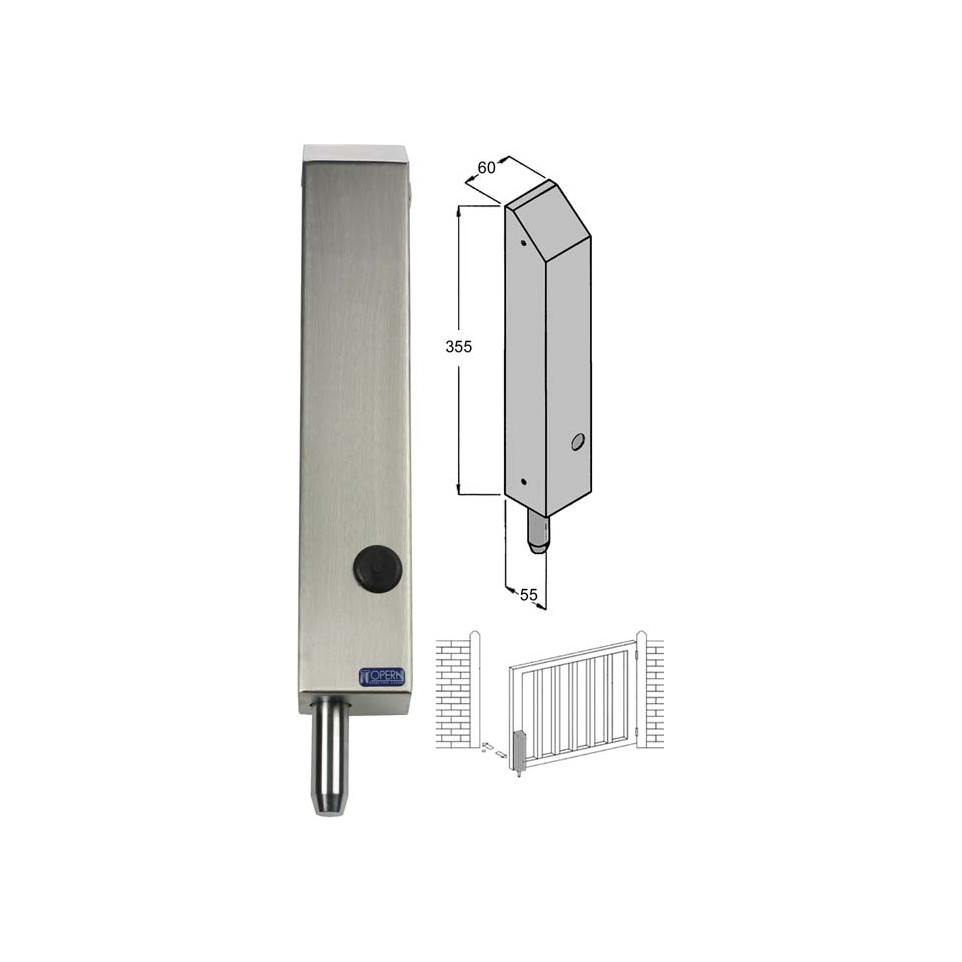

- Body dimensions: 335 x 60 x 55 mm
- Mechanical 4-turn operation with European cylinder, double-sided locking
- 20 mm steel bolt with 15 mm strike centering stop; 60 mm extension, 50 mm travel
- Anti-burglary bolt system with complete lockout on closure
- 24 Vdc power supply, 5 A startup, 750/900 mA holding current
Usage
Install the lock on the gate with floor anchoring. The lock secures or releases the gate electrically or manually via a key using the European cylinder. Rubber protection and corrosion-resistant materials allow for reliable operation in all weather. The anti-burglary system mechanically blocks the bolt when fully closed, providing enhanced security.
FAQ
- What type of gates is this lock compatible with?
- It is designed for automatic gates requiring secure floor locking, particularly in high-security or outdoor settings.
- How is the lock powered?
- It operates on a 24 Vdc power supply, with a start current of 5 A and a hold current of 750 to 900 mA.
- Is manual operation possible if power fails?
- Yes, the lock features a mechanical opening with a 4-turn European cylinder for access from both sides.
- What measures protect the lock from weather?
- Stainless steel and anticorrosion-treated materials, plus a rubber seal for the cylinder port, ensure weather resistance.
- How does the anti-burglary system work?
- The bolt is fully blocked in the locked position, preventing forced opening and increasing security.
