Usage

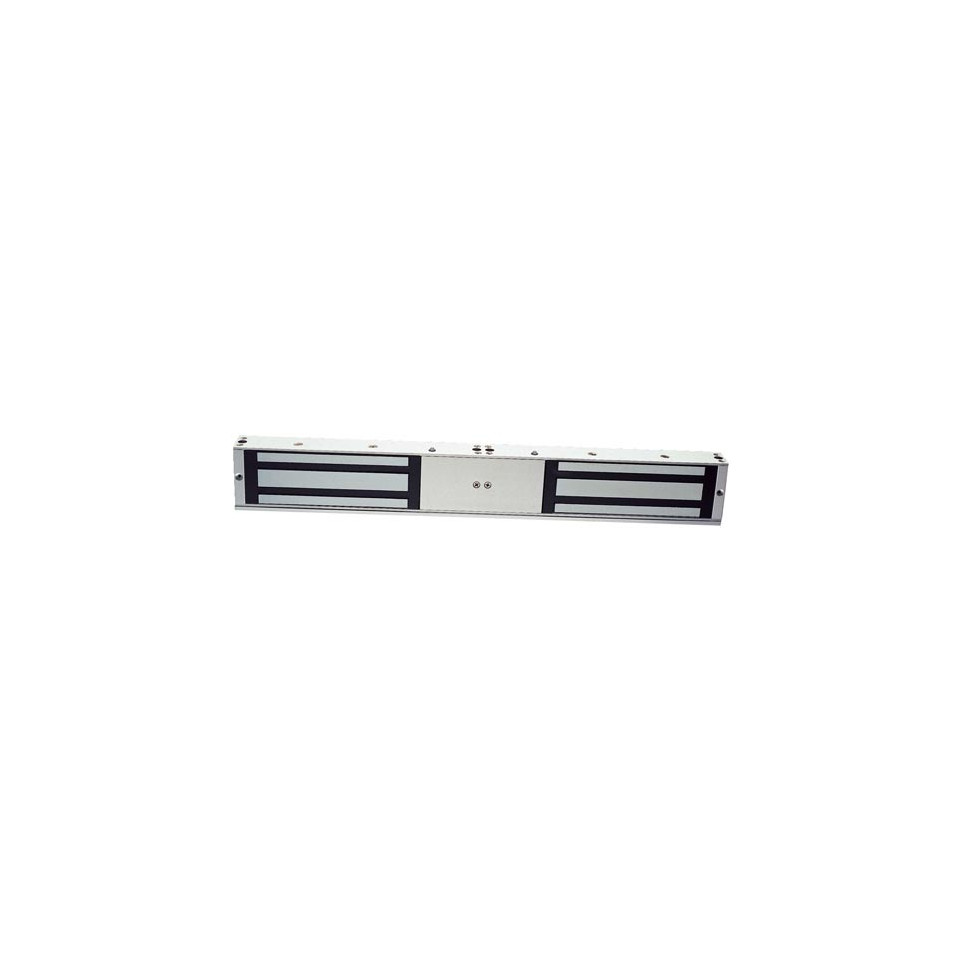

The Ventouse double en applique DIAX P1000ALR is designed for secure electromagnetic locking of double-leaf doors in commercial and industrial environments. It provides a robust, surface-mounted solution for access control systems where high retention force is required.
Advantages
- High holding force with 2 x 500 kg electromagnets ensures reliable door security
- Dual independent operation supports flexible installation on double doors
- Position signaling via NO/NC relay contact enables integration with access control systems
- Resistant to corrosion, suitable for long-term indoor use in demanding conditions
- No residual magnetism and integrated electronic protection against self-induction effects; requires separate L or Z brackets per magnet as a minor consideration
Specifications
- The assembly features two surface-mount electromagnets constructed from durable materials, supplied with matching counterplates; compatible with DIAX mounting brackets and safety cables included.
- The product is built for high durability and meets specifications for interior door security; provides enhanced corrosion resistance over time.
- Total holding force: 1,000 kg (two magnets at up to 500 kg each); power supply: selectable between 12 V DC (1.2 A) and 24 V DC (620 mA).
- Main body dimensions: ventouse – 532 × 66.5 × 42.5 mm; counterplate – 185 × 60 × 12 mm; includes position status relay output (NO/NC), no residual magnetism design, and electronic surge protection.
How it works
This electromagnetic lock operates by energizing the coils to create strong magnetic attraction between the housing and its counterplates when powered by a DC source. Each unit can be managed independently for flexible door control, while integrated relays signal lock status to building management or access systems.
