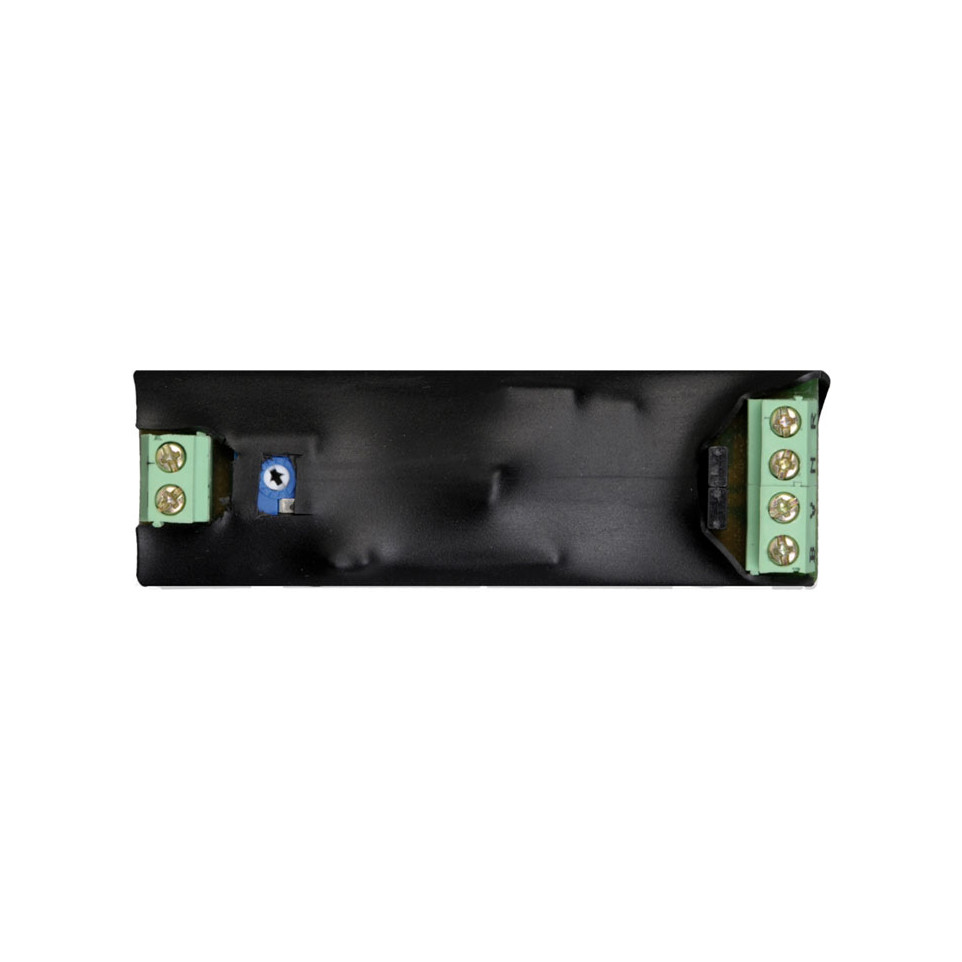

Compact time delay module for electromagnetic locks, the Temporisation pour ventouse Diax by Cdvi manages the opening duration of up to two compatible maglocks or magnetic bars in security and access control systems.
Connect the module to your maglock(s) or magnetic bar. When triggered, it controls how long the lock(s) stay open before automatically re-activating, improving security and managing controlled access points efficiently.
Which types of locks is this timer compatible with?
The module supports up to two V3S(R) or V5S(R) electromagnetic locks, or a magnetic bar equipped with up to two of these locks.
What is the adjustable time delay range?
The delay can be set between 1.5 and 20 seconds to match your specific access requirements.
What power supply is required for operation?
It operates on a DC voltage of either 12V or 24V.
How big is the module?
The dimensions are 81 mm in length, 26.5 mm in width, and 11 mm in depth.
Where is this timer typically installed?
It is generally installed within the electrical cabinet or close to the entry point, integrated into the electromagnetic access control system.
mvm-dt-2025-07-07
| Brand | Cdvi |
|---|
