Estimated delivery date :  Tuesday 9 June
€68.38 HT
In stock

Ref : FGT-585630

Quantity


Description

Product

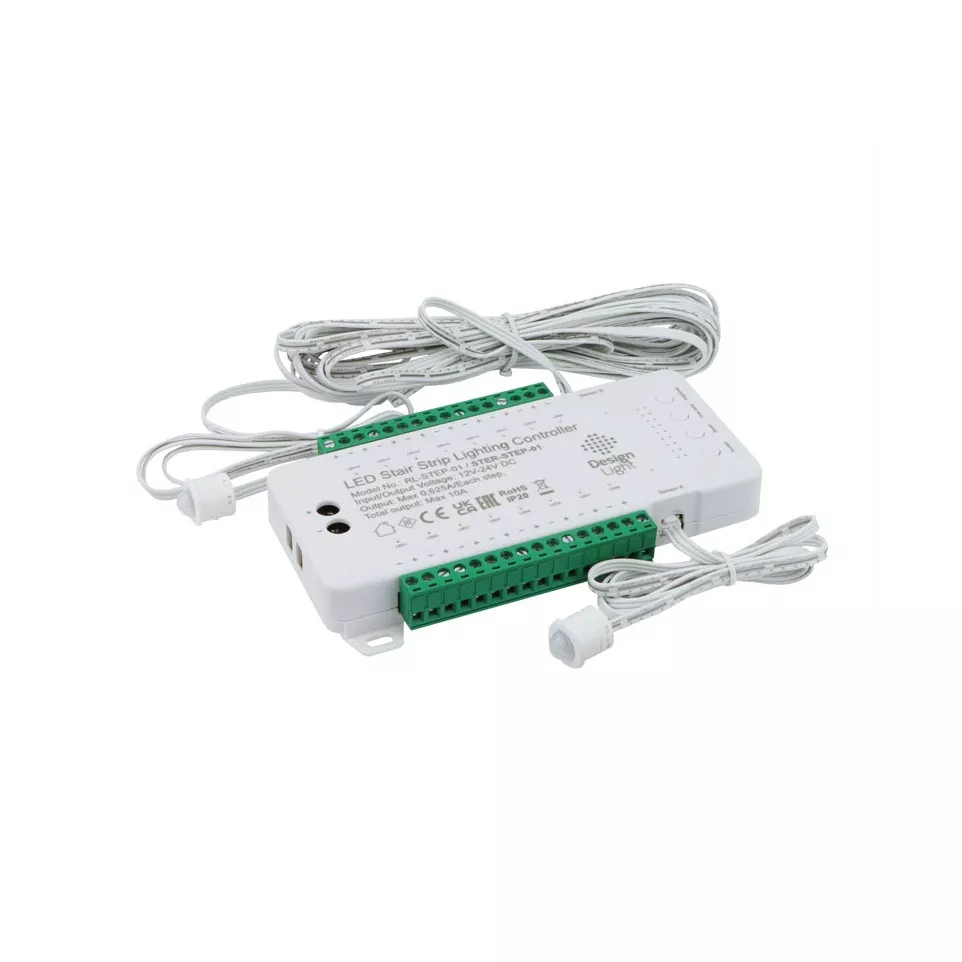

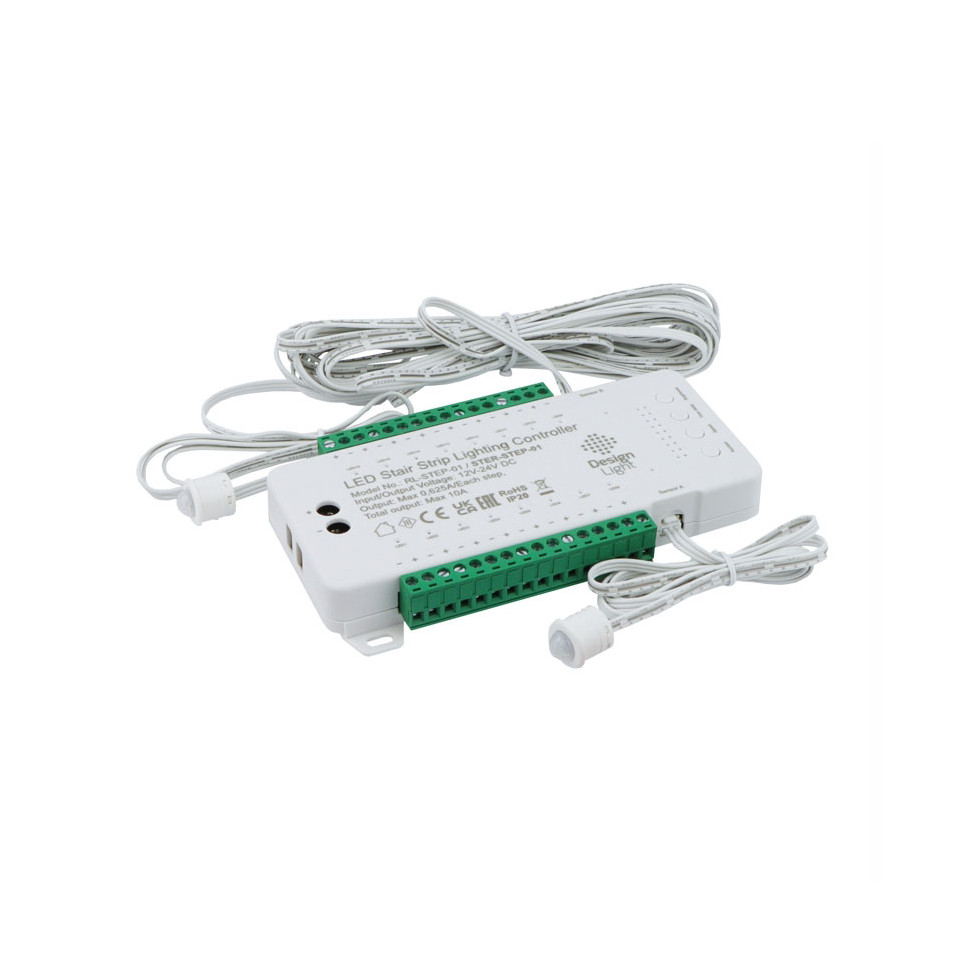

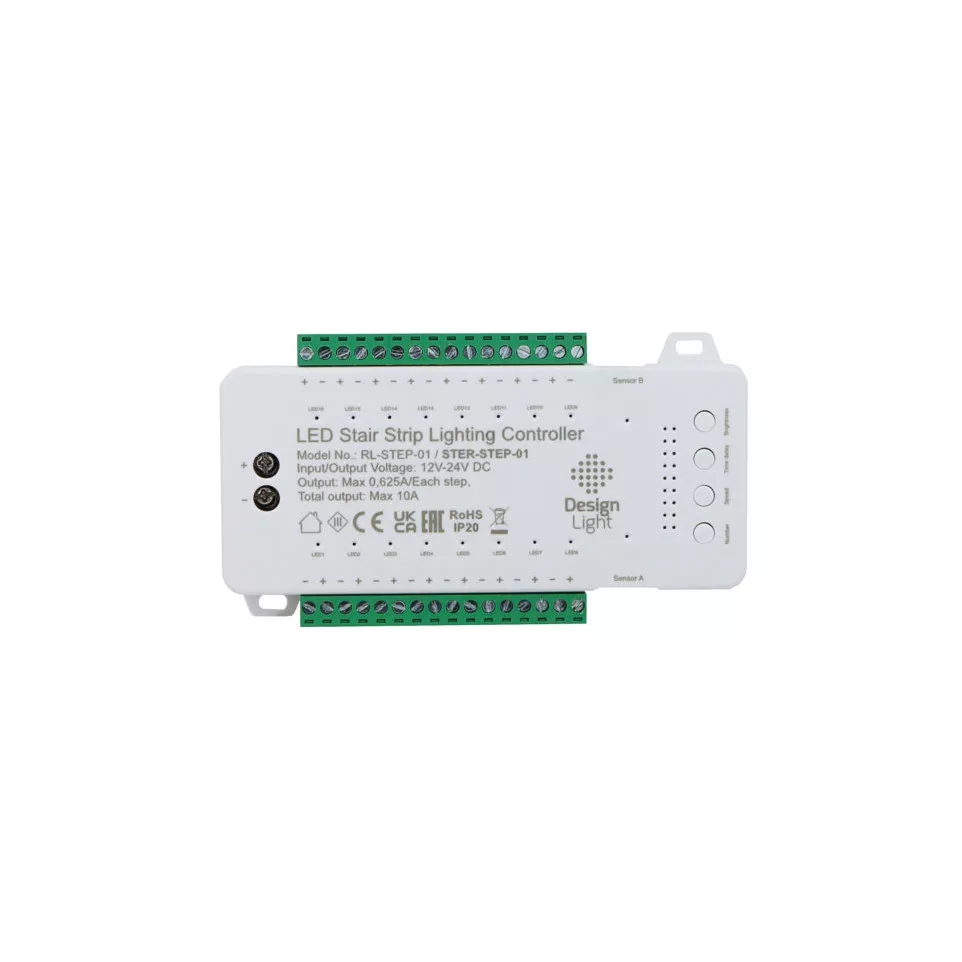

The STEP 10A Stair Controller automates sequential LED lighting for staircases up to 16 steps, enhancing safety and convenience in indoor settings with motion detection.

Specifications

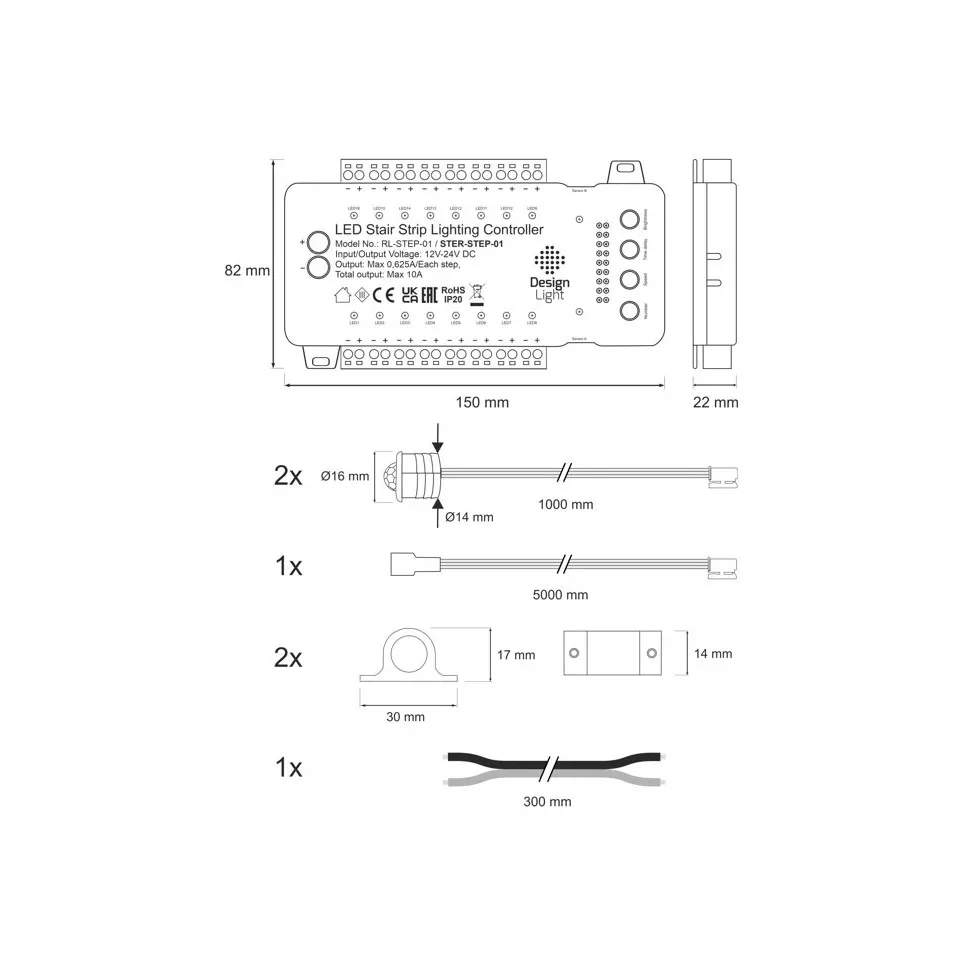

  • Compact design with IP20 rating for indoor use, supporting 12V-24V DC LED strips up to 10A (120W at 12V or 240W at 24V).
  • CE certified, operates from -20°C to +50°C, includes two PIR sensors with 1.5m detection range.
  • Customizable for number of steps illuminated, lighting duration (2-30 seconds in 9 levels), and brightness (25%, 50%, 75%, 100%).

Usage

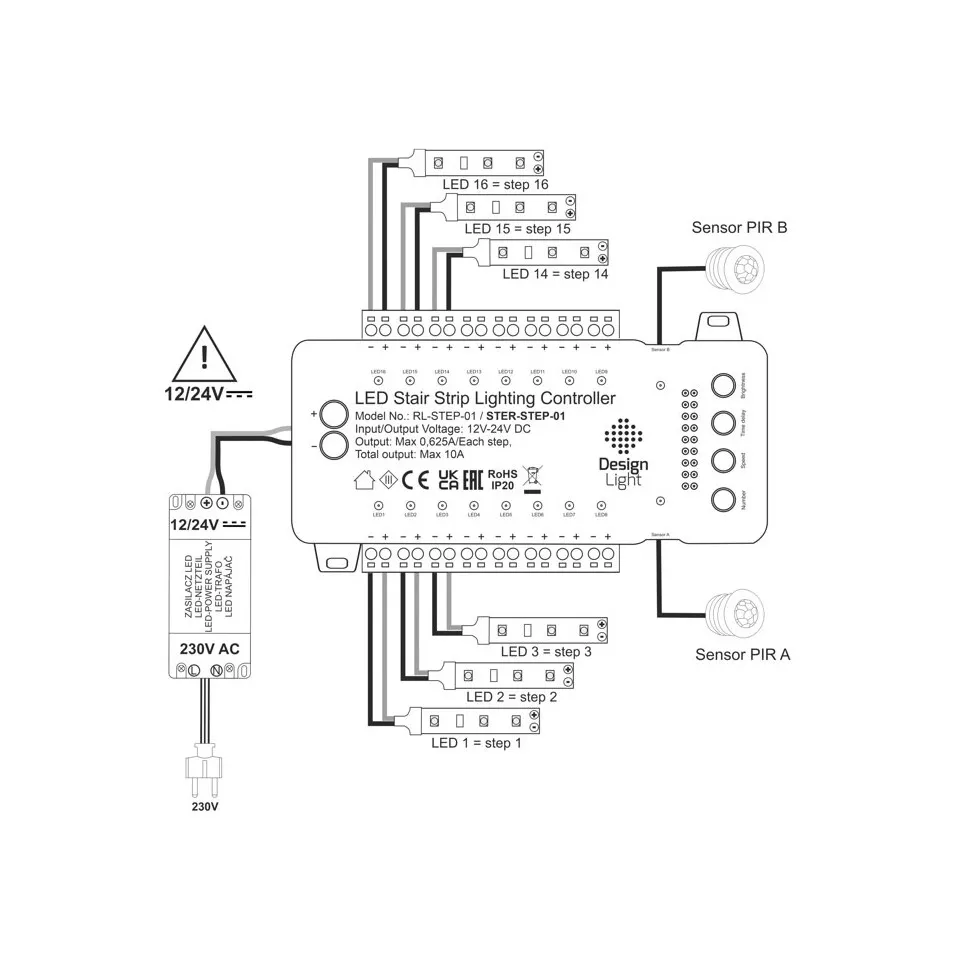

Install PIR sensors at the top and bottom of stairs; motion triggers sequential lighting of LED strips on each step. Adjust settings directly on the controller for step count, hold time, and intensity to match your staircase.

FAQ

  1. What voltage does the STEP 10A support? It operates with 12V-24V DC LED lighting, delivering up to 120W at 12V or 240W at 24V.
  2. How many steps can it control? It handles up to 16 steps with sequential illumination.
  3. What sensors are included? Two PIR motion detectors, one for top and one for bottom, each with 1.5m range.
  4. Can brightness and duration be adjusted? Yes, set brightness in 25% increments and duration from 2 to 30 seconds across 9 levels.
  5. Is it suitable for outdoor use? No, IP20 rating limits it to indoor installations.

mvm-dt-2025-07-20

See more

Product Details

Brand Autre
Colour alu
Description capteur tactile
FGT-585630
