Usage
This push-button with dimming function is designed for controlling and adjusting the brightness of LED lighting in furniture, such as cabinets, wardrobes, or shelves. Suitable for integration in modern furniture systems.
Advantages
- Enables both on/off switching and smooth dimming of connected LED lighting
- Supports connection of up to three identical push-buttons to a single main unit
- Smooth soft-start and soft-stop functionality for gentle light transitions
- Compatible with mini LED M1 / MP2 connections for easy integration
- Requires no minimum load ballast; not compatible with upstream dimmers (limitation)
Specifications
- Sleek design; built-in technology enabling use with multiple identical buttons and simple wiring within furniture installations

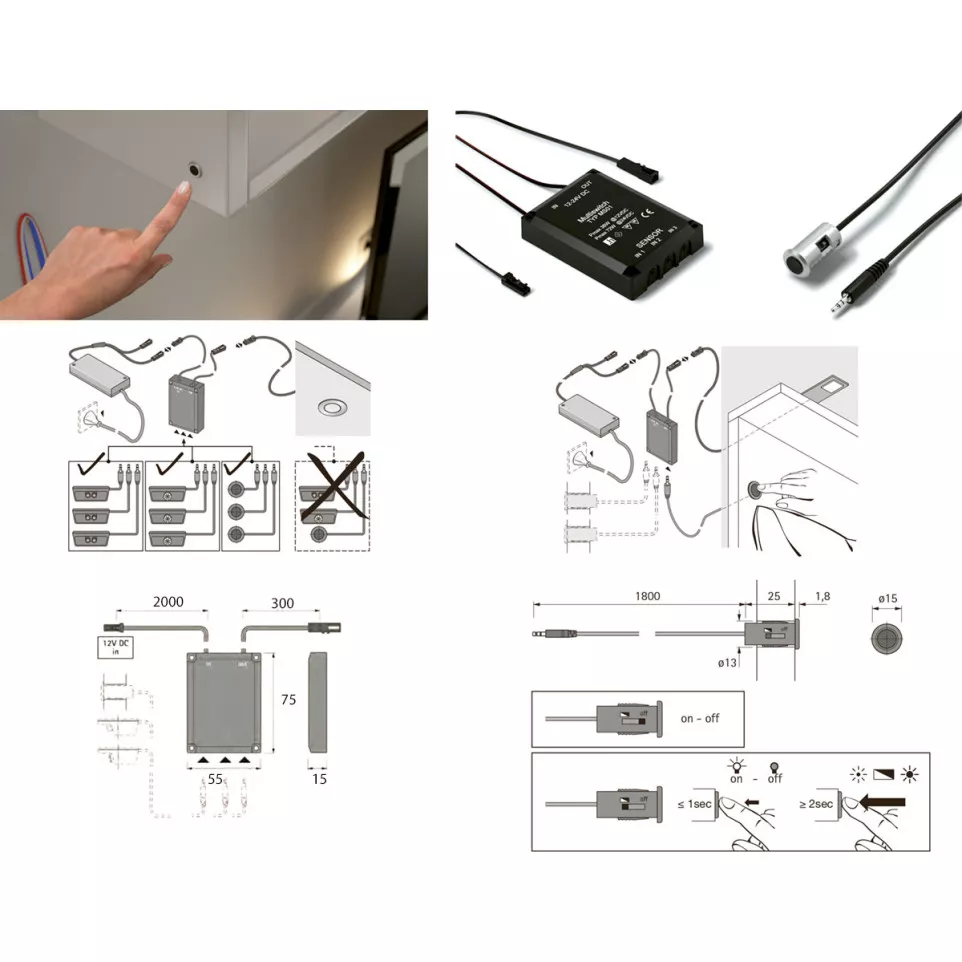

- Cable length: detector cable – approximately 1800 mm; power supply cable – approximately 2000 mm; switching cable to luminaire – approximately 300 mm[3][5]
- Smooth on/off operation through integrated dimming function, optimizing comfort and energy management[3][5]
- Differentiating feature: allows several buttons at various points in the same piece of furniture, controlled by a single master unit[3][4][5]
How it works
The unit connects between an LED driver and lighting fixture. Pressing the button toggles power or gradually adjusts brightness. Multiple push-buttons can be wired together via a central controller so users can operate or dim lights from different locations on the same furniture.
