Usage

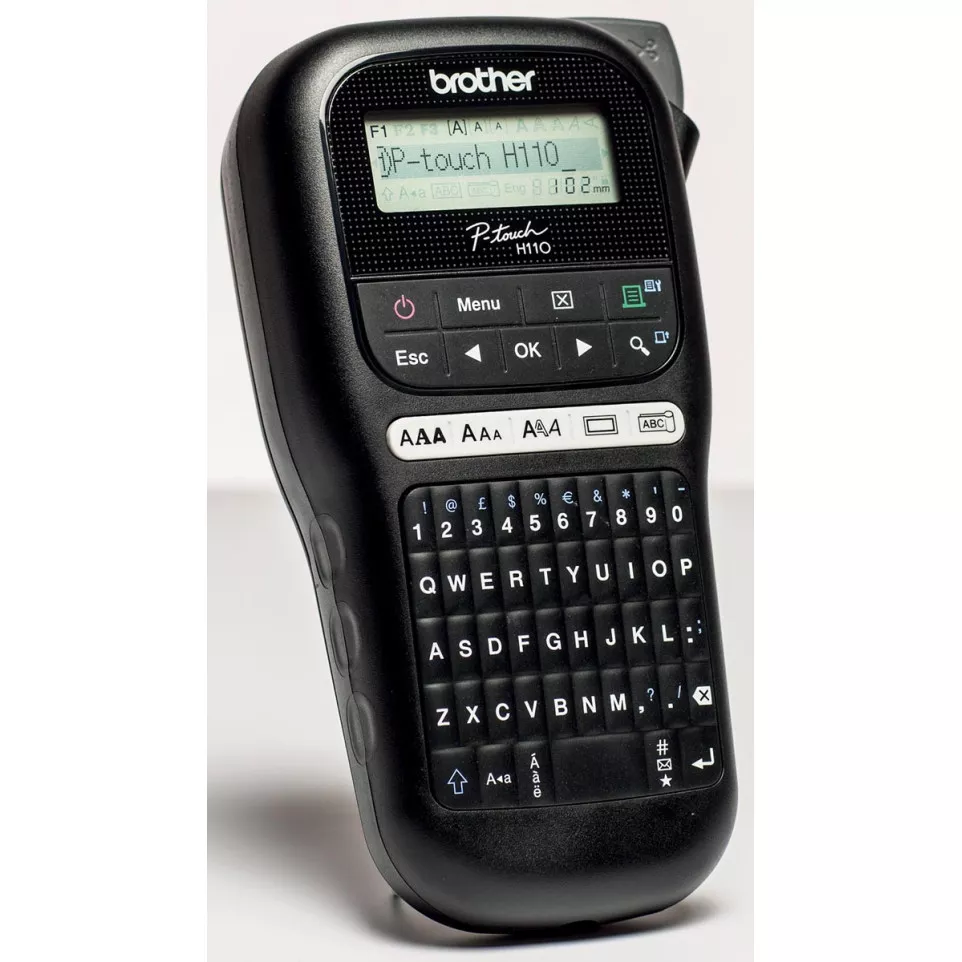

The Brother PT-H110 is a portable labeling system designed for creating durable, custom self-adhesive labels in office, home, workshop, and educational environments. Compact and lightweight, it suits labeling files, cables, folders, storage bins, and more.
Advantages
- QWERTY keyboard enables quick and intuitive text entry for efficient label creation.
- Supports a wide range of Brother TZe laminated tapes in widths from 3.5 mm to 12 mm for varied labeling needs.
- Offers three fonts, ten font styles, fifteen frames, and over 250 symbols to personalize every label.
- Built-in memory saves up to fifteen frequently used labels for fast reprinting tasks.
- The manual cutter requires user operation; not an automatic cutting system.
Specifications

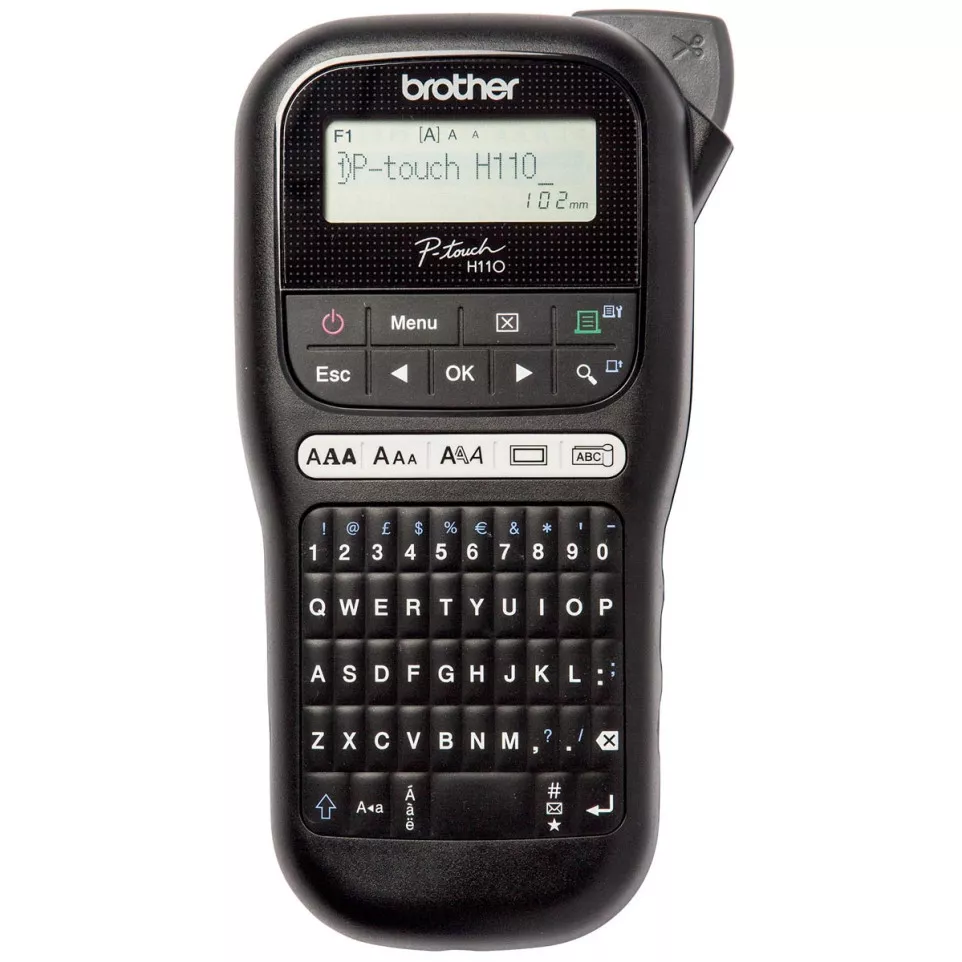

- Design: Lightweight handheld device with ergonomic rubber QWERTY keyboard; easy-to-read graphic LCD (up to sixteen characters).
- Tape Compatibility: Uses Brother TZe tape cassettes (laminated/non-laminated) in widths of 3.5 mm / 6 mm / 9 mm /12 mm.
Prints up to two lines per label; label length adjustable from approximately thirty to three hundred millimeters.
- Mains/Battery Operation: Powered by six AAA batteries or optional AC adapter (AD-24ES), providing flexibility whether stationary or mobile.
- Diverse Features: Includes cable/wire labeling mode; vertical printing option; print preview function before printing.
- User Memory: Save up to fifteen custom labels in device memory for repeated use.
Supports twenty interface languages.
Main Performance Data:
- Print resolution:180 dpi
- Maximum print height:9.0 mm
- Maximum print speed:20 mm per second
- Device dimensions:approximately109×202×55mm(W×D×H)
- Weight:approximately400g(excluding batteries/tape cassette)
How it works
To operate the PT-H110 system insert a compatible TZe tape cassette and power the unit with batteries or an AC adapter. Enter your desired text using the QWERTY keyboard; select fonts or decorative elements via function keys on the display screen. Preview your design—then press print—cutting each finished label manually using the integrated cutter.
