Product

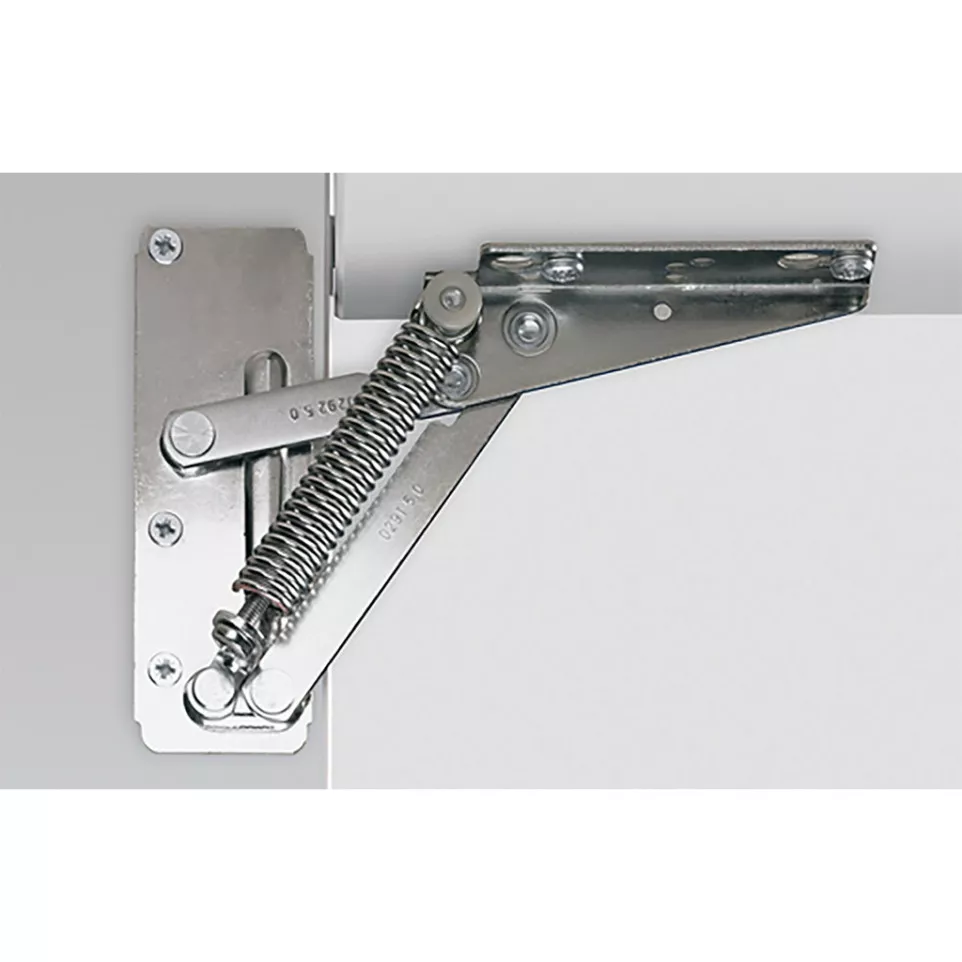

Pair of Lift-type opening compasses from Hettich designed for lifting wooden or wood-framed panel fronts. With a 75° opening angle and a maximum supported flap weight of 4.6 kg per piece, these fittings are suitable for functional and aesthetic cabinet and furniture solutions.
Specifications
- Nickel-plated steel construction provides solid corrosion resistance and reliability
- Adjustable spring force between 80 and 220N ensures compatibility with various flap weights and dimensions
- Supports panel heights from 200 to 500 mm and widths from 300 to 1000 mm
- Uses the efficient 32 mm system hole rows for rational installation
- Designed specifically for wood and wood-framed fronts
Usage

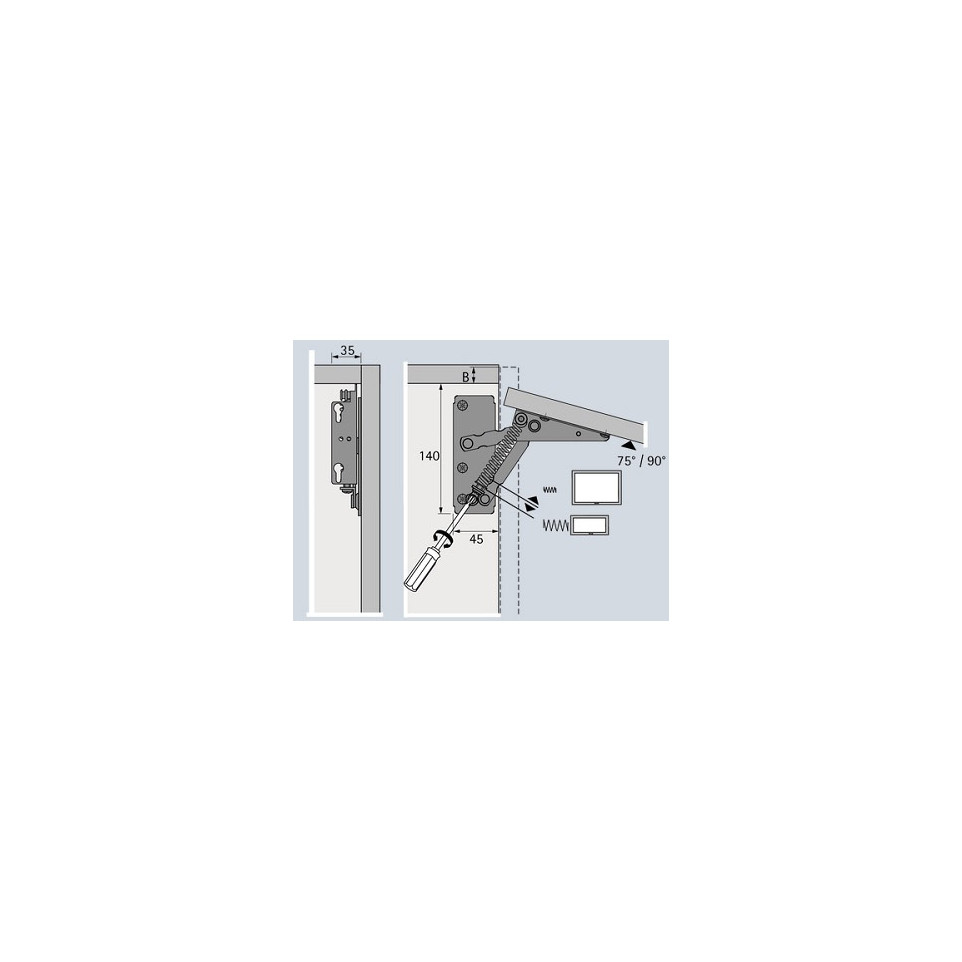

Mount the lift compasses inside cabinets for upward-opening flaps. The adjustable spring force allows precise tuning based on the flap size and weight, ensuring smooth and controlled opening up to 75°. Install using the system 32 hole rows for quick and consistent alignment.
FAQ
-
What is the maximum weight this lifting compass can support?
- Each piece supports a flap up to 4.6 kg.
-
Are these compasses suitable for glass or metal doors?
- No, they are designed specifically for wooden or wood-framed fronts.
-
How is the opening angle adjusted?
- The compass provides a fixed 75° opening angle; adjustment is for spring force only.
-
What are the required panel dimensions?
- Suitable for panels 200–500 mm in height and 300–1000 mm in width.
-
Is it possible to fine-tune the opening force?
- Yes, the spring force can be adjusted between 80 and 220N to match the flap weight.
