Pair of Lift-Up Hinges 90° Opening Angle Max Load 3.3kg per Piece

Product

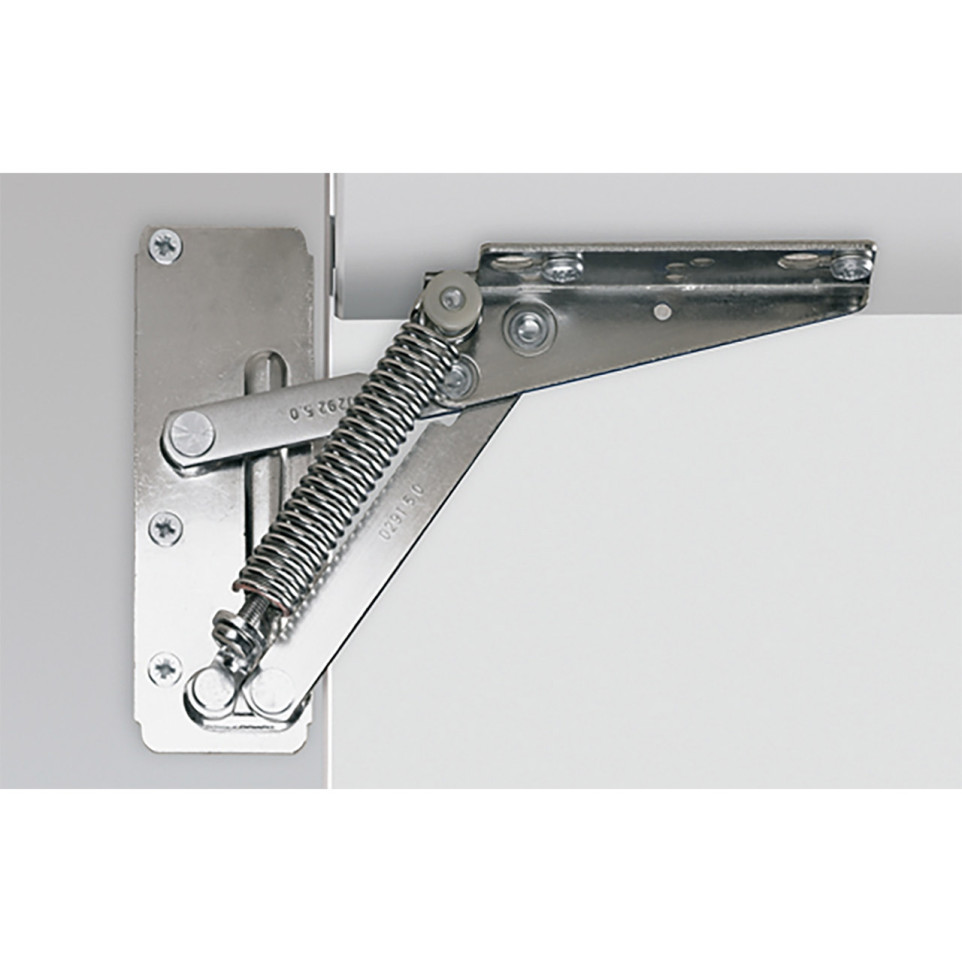

This pair of Hettich lift-up compasses is designed for wooden or framed wood fronts, enabling efficient upward opening of cabinet flaps to a 90° angle. Ideal for residential or commercial cabinetry where controlled, ergonomic access is required.

Specifications

• Constructed from nickel-plated steel for enhanced durability and corrosion resistance
• Designed for flap heights between 200–500 mm and widths from 300–1000 mm
• Maximum supported flap weight is 3.3 kg per piece
• Integrated spring mechanism provides 180 N of lifting force

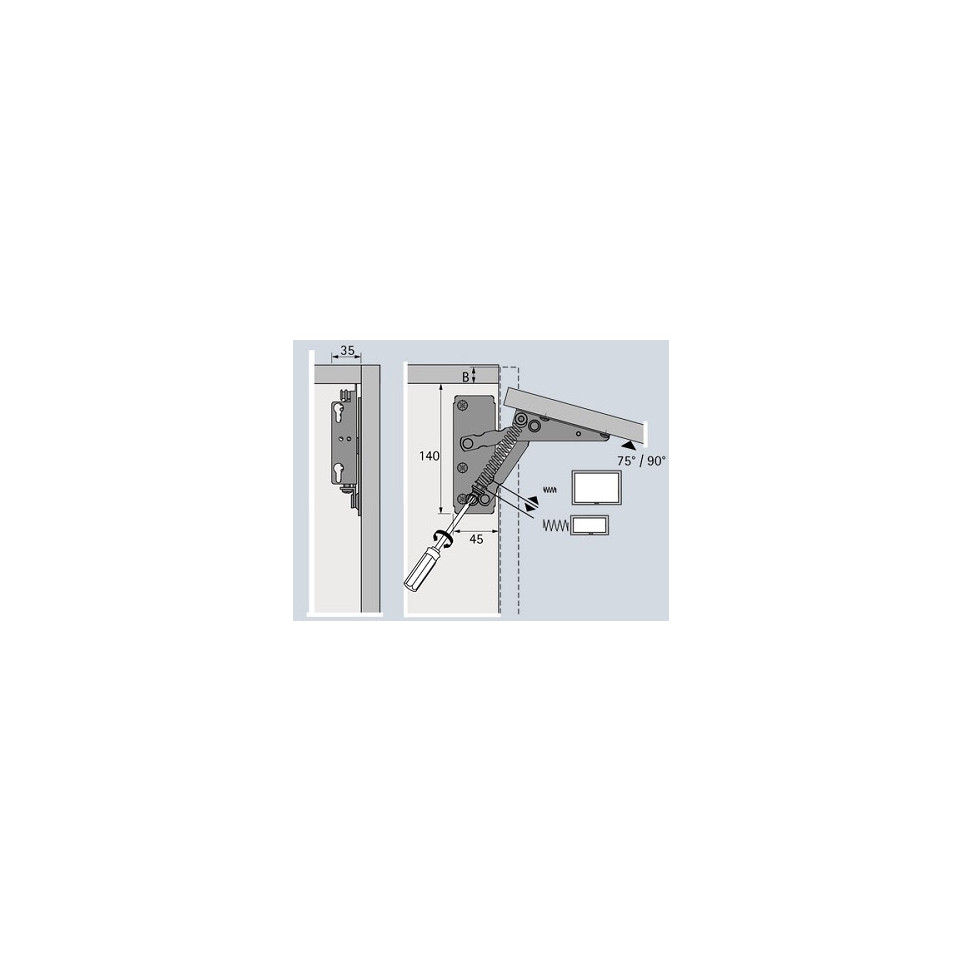

• Compatible with 32 mm system hole rows for streamlined, rational installation

Usage

Install the lifting compasses on either side of a wooden flap using the system 32 hole arrangement. Once fitted, the compasses allow the flap to open upwards to 90°, providing smooth, controlled operation. Suitable for both new builds and retrofit applications in kitchens, offices, or storage furniture.

FAQ

1. What flap materials are supported?
   These lifting compasses are compatible with solid wood and framed wooden flaps.

2. What are the minimum and maximum flap dimensions?
   They support flap heights from 200 mm to 500 mm and widths from 300 mm to 1000 mm.

3. What is the maximum weight each compass can lift?
   Each unit is rated for flaps up to 3.3 kg.

4. How is installation performed?
   Fasten directly using 32 mm system hole rows, ensuring accurate alignment and secure mounting.

5. Is the spring force adjustable?
   The integrated spring delivers a fixed force of 180 N for reliable, repeatable lifting action.
