Product

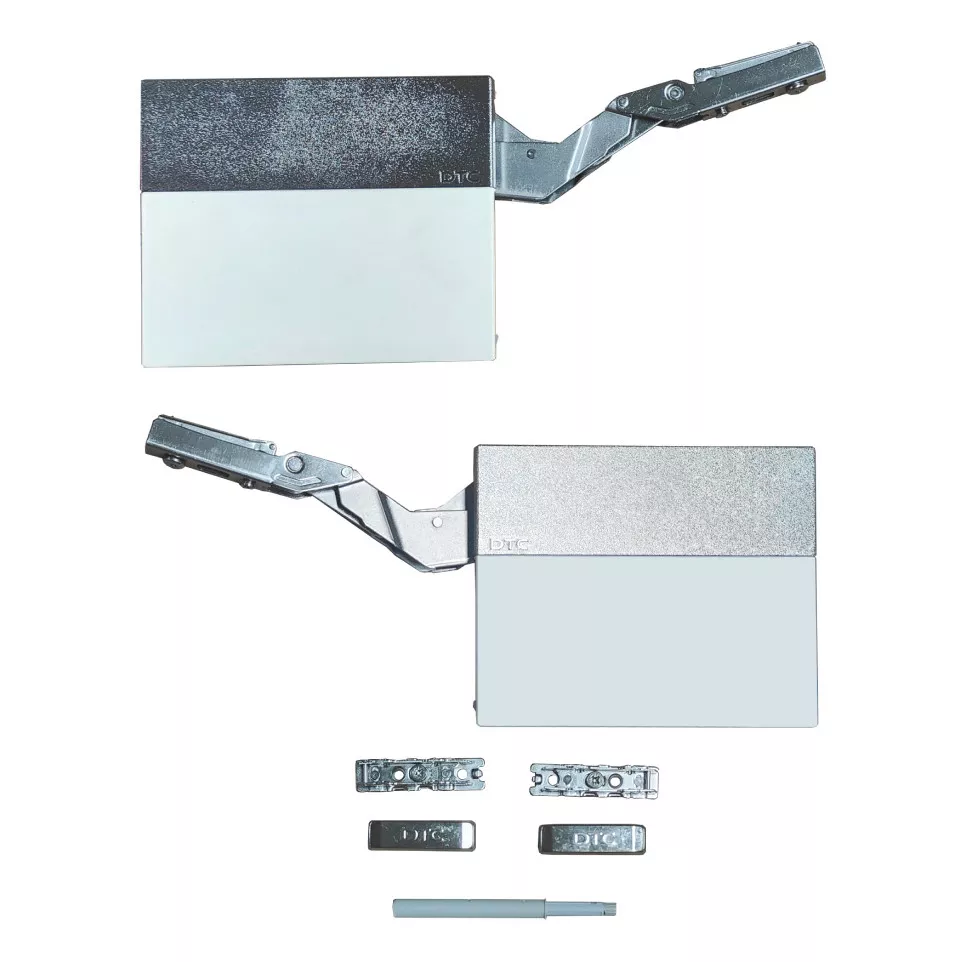

This kit includes 2 lightweight SQ force lifting compasses with a 107° opening angle and push-to-open system in white/nickel finish, engineered for cabinet heights of 250–400 mm, ideal for handleless modern cabinetry and furniture.
Specifications
- Designed for cabinet widths up to 1200 mm and door thicknesses from 16 to 28 mm
- Three-dimensional door adjustment: height ±2 mm, depth ±2 mm, lateral ±2 mm
- Adjustable soft-close speed for controlled, gentle closure
- Tool-free assembly and disassembly
- Push-to-open function, operates handle-free and holds position at any angle
- Adjustable opening and swing forces suit various door weights
- Durable bicolor caps in white and nickel
- Power factor (LF): 580–1350, calculated as cabinet height (mm) × door weight (kg)
- compatible with a third lift mechanism to support up to 50% greater LF and door weight
Usage
Install the lifting compasses on cabinet doors within specified dimensions using the tool-free fittings, adjust door positioning in three directions, and set closing speed and force as required. The push-to-open mechanism lets users operate the door without handles, holding securely at the desired opening angle.
FAQ
-
What cabinet sizes are compatible with this lifting compass kit?
Suitable for cabinets with widths up to 1200 mm and heights between 250 and 400 mm.
-
How do I adjust the settings once installed?
Door height, depth, and lateral position can each be adjusted ±2 mm; opening forces and soft-close speed are also adjustable for optimal performance.
-
Is this product suitable for handleless cabinets?
Yes, it features a push-to-open system, making it ideal for handleless or minimalist cabinet designs.
-
Can the lifting capacity be increased?
Adding a third lifting mechanism allows for a 50% increase in both power factor and door weight capacity.
-
Is installation complicated?
No tools are needed for assembly or removal, making installation and adjustments quick and straightforward.
