Product

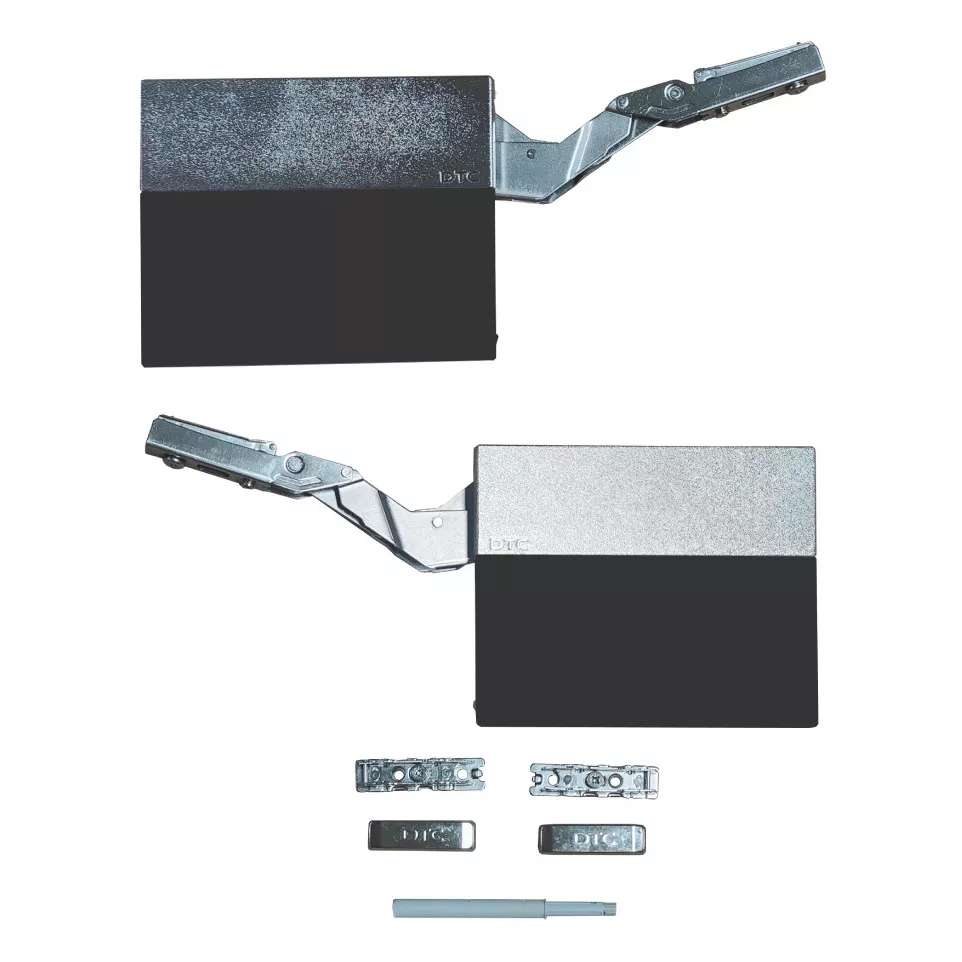

Lightweight lifting compass kit, set of two, designed for cabinet doors with a 107° opening angle and integrated push-to-open mechanism in anthracite/nickel finish. Suitable for cabinets with widths up to 1200 mm and heights from 250 to 400 mm.
Specifications
- Opening angle: 107°
- Fits cabinet width up to 1200 mm
- Compatible cabinet height: 250–400 mm
- Power factor LF: 580–1350
- Door thickness supported: 16–28 mm
- 3D adjustable door settings: height ±2 mm, depth ±2 mm, lateral ±2 mm
- Adjustable soft-close speed
- Push to open: handle-free operation, holds position
- Adjustable opening and swing force
- Tool-free installation and removal
- Bicolor caps in grey/nickel
Usage
Install the compasses inside cabinet frames to enable smooth upward opening and stable positioning of doors. Use the 3D adjustments to align doors precisely, and set the opening and closing force to match door weight and user preference. Soft-close, push-to-open operation offers handleless convenience.
FAQ
-
What is the maximum cabinet size supported?
- Cabinet width up to 1200 mm and height between 250–400 mm.
-
Is tool-free installation possible?
- Yes, these compasses can be mounted and removed without tools.
-
How is the opening force adjusted?
- Both the opening and swing force are adjustable using built-in settings to accommodate different door weights.
-
Does it support soft-close action?
- Yes, the soft-close speed is adjustable for smooth, controlled closing.
-
Can it be used for handle-free cabinets?
- Yes, the push-to-open feature allows for handleless design, with doors staying in the desired open position.
