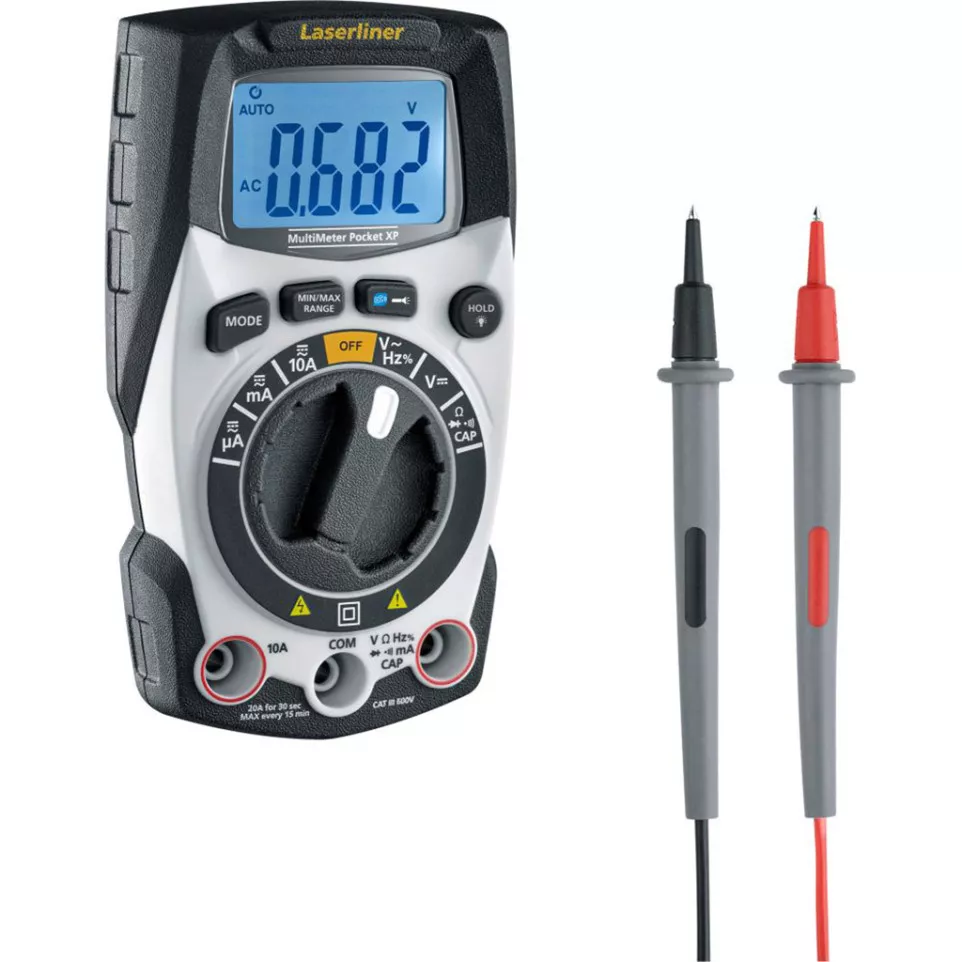

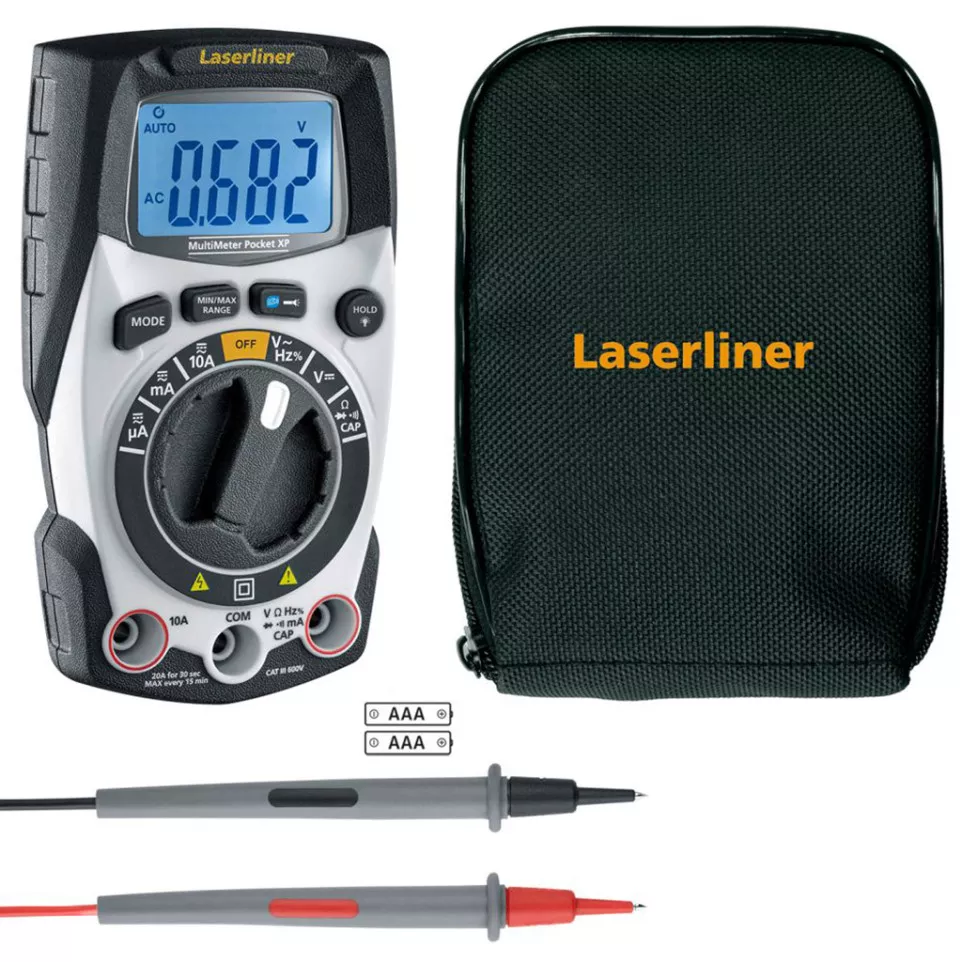

Laserliner Pocket XP Digital Multimeter per piece

Product

The Laserliner Pocket XP 083.036A is a compact, robust digital multimeter designed for precise measurement of voltage, current, resistance, capacitance, frequency, and pulse rate. Ideal for electrical installation, building maintenance, and technical diagnostics, it features integrated Bluetooth for seamless data transfer.

Specifications

• Compact, shock-resistant housing with ergonomic rubberized protection and built-in stand

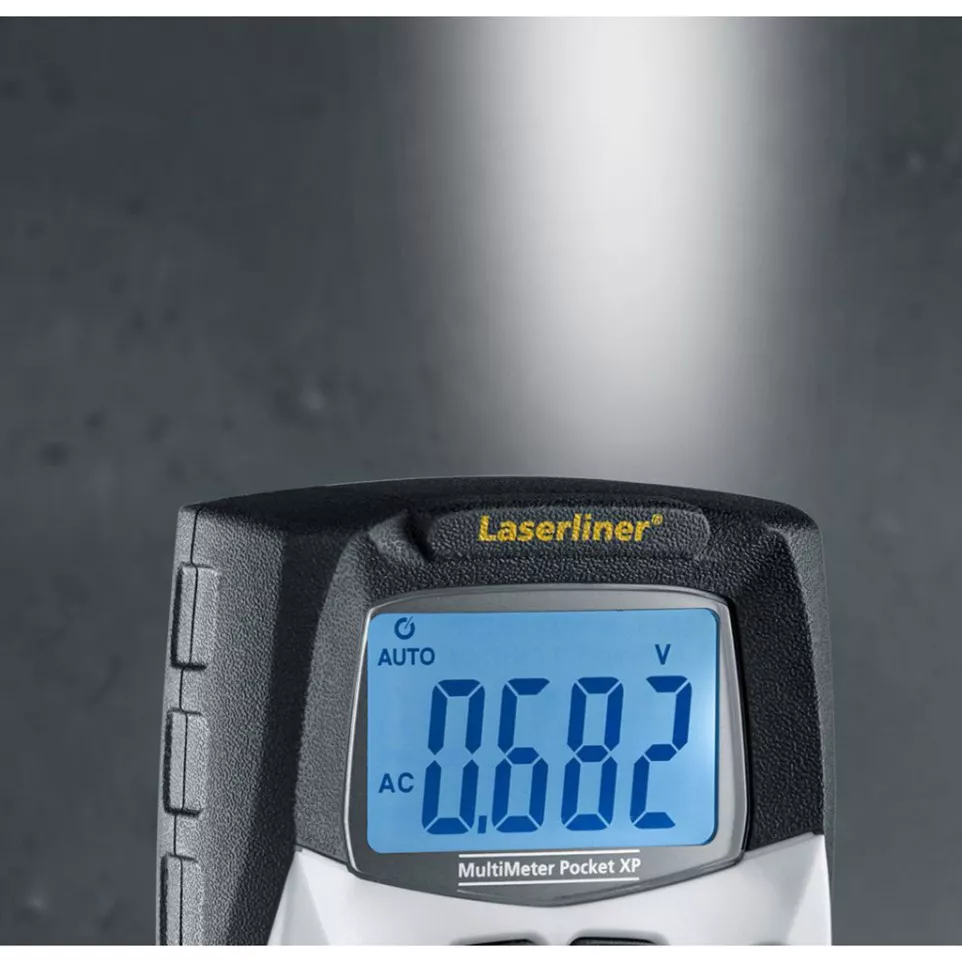

• Display: 4000-count high-resolution digital readout
• Measurements: voltage (DC/AC), current (DC/AC), resistance, capacitance, frequency (10 Hz to 10 KHz), pulse, diode testing, and continuity with acoustic signal
• Safety: CAT III-600V, CAT IV-600V ratings for comprehensive use in building and industrial environments
• Features: Bluetooth connectivity, auto/manual range selection, data hold, min/max value functions, memory storage for measured values

Usage

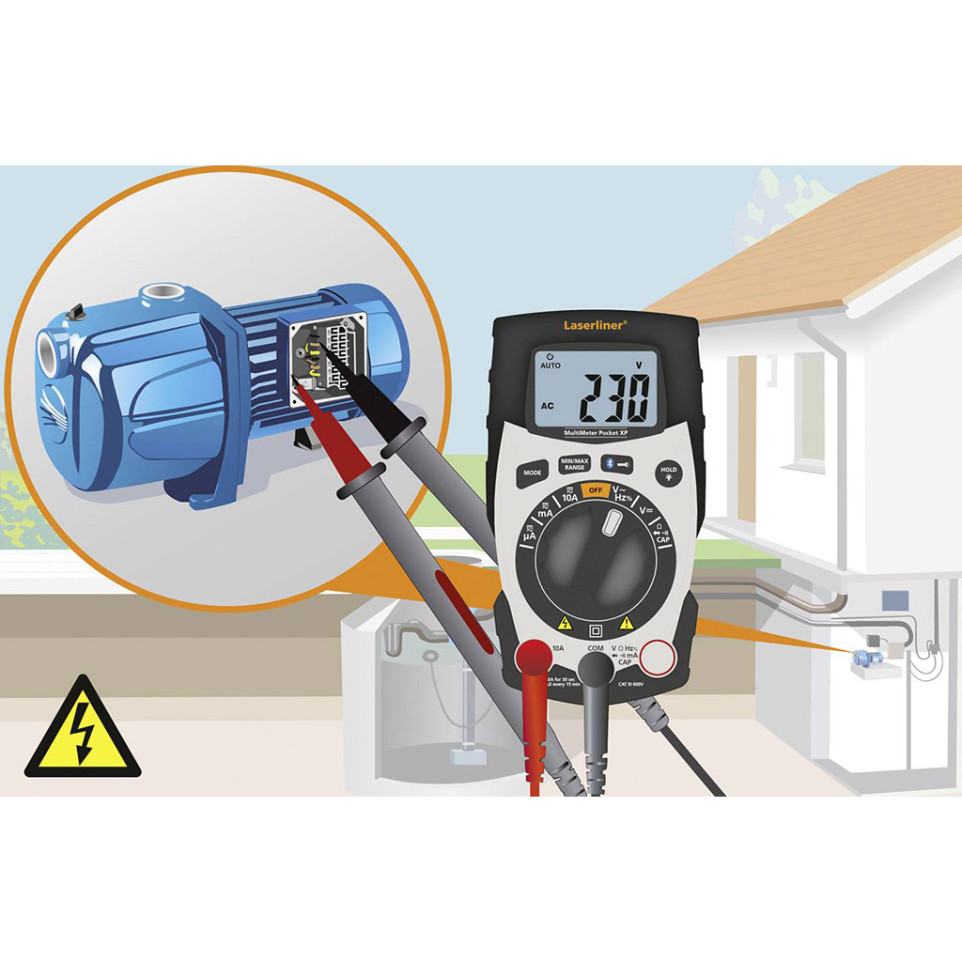

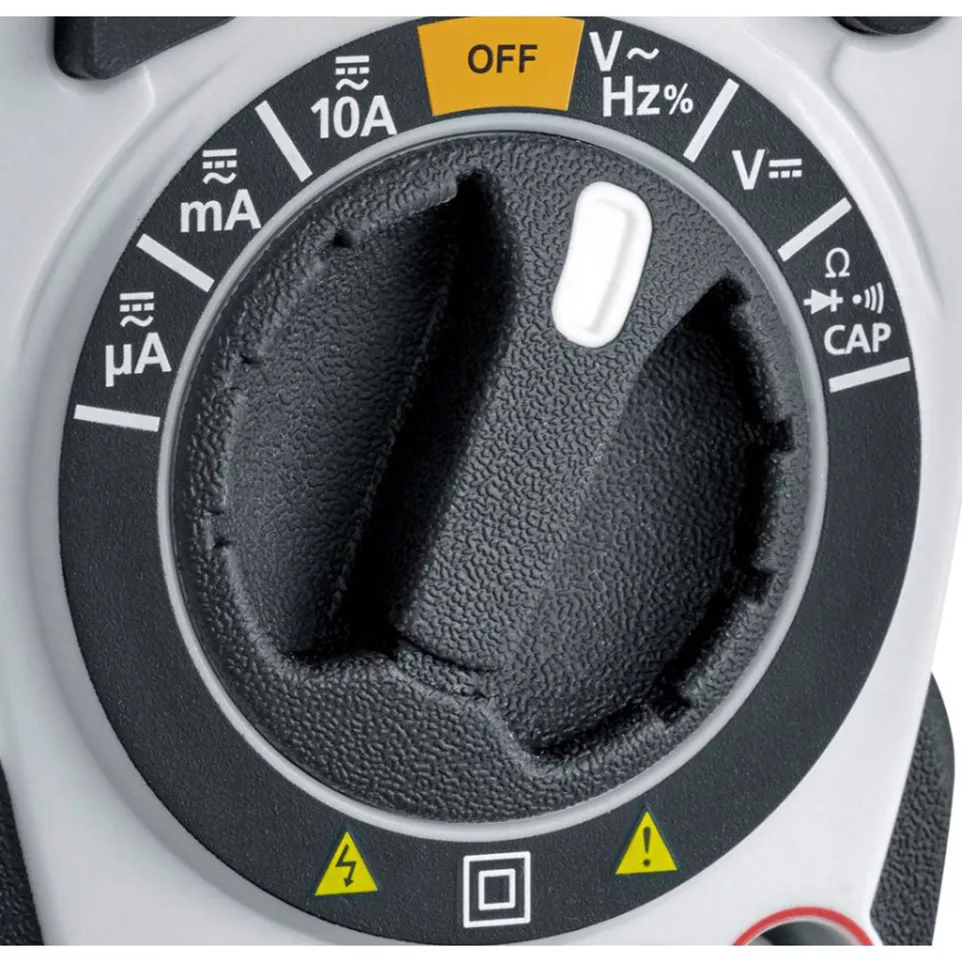

To use, connect the measuring leads to the device and select the desired function via the rotary switch or buttons. The meter automatically or manually selects measurement ranges, providing accurate readings on the high-resolution display. Suitable for troubleshooting circuits, verifying installations, and recording measurement data in the field.

FAQ

1. What types of measurements can the Pocket XP perform?

   • It measures voltage, current, resistance, capacitance, frequency, pulse rate, and includes diode and continuity testing functions.

2. Is this multimeter suitable for professional electrical installations?

   • Yes, with CAT III-600V and CAT IV-600V ratings, it is appropriate for a wide range of industrial and building installation tasks.

3. Does it support data transfer to mobile devices?

   • Yes, the integrated Bluetooth allows fast data export to compatible apps and devices.

4. How is the continuity test indicated?

   • The multimeter provides an audible signal during automatic continuity testing for quick, reliable checks.

5. What are the device’s dimensions and weight?

   • The instrument measures approximately 67 mm × 120 mm × 47 mm and weighs about 0.26 kg.
