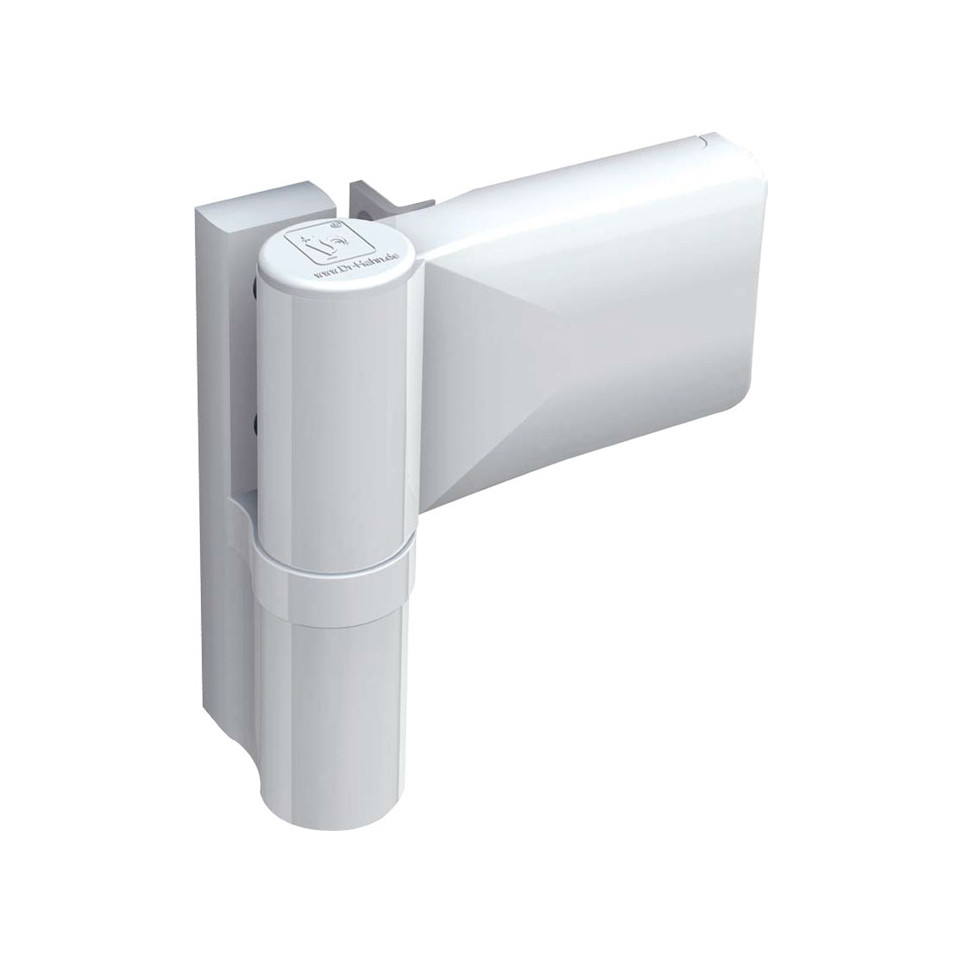

Paumelle Dr Hahn KT-N 6R recouvrement 18-23mm Ral 8077 / 24pce
€30.38
In stock
Usage
The Dr Hahn KT-V 6R 22-27mm F9 hinge is designed for securely mounting and adjusting PVC doors, particularly in residential or commercial environments where durability and reliable performance are required.
Advantages
- Supports doors weighing up to 160 kg, suitable for heavy-duty applications.
- Offers multi-dimensional adjustability: horizontal (±3 mm), vertical (±3 mm), and sealing pressure (±0.4 mm).
- Constructed from extruded aluminium for high strength and corrosion resistance.
- Slim hinge curl diameter of only 22 mm ensures an inconspicuous appearance on the door.
- Certified according to EN standards for durability and safety; not recommended for fire-rated installations.
Specifications
- Design & Materials: Extruded aluminium construction with direct mounting in both frame and sash; available in anodised finishes or RAL-coloured options.
- Durability & Certifications: CE-certified per EN1935:2002, hinge class up to class 11; endurance tested over at least 200,000 cycles; SKG two-star rating for security on intrusion-resistant doors.
- Performance: Maximum load capacity of up to 160 kg per set depending on door profile; adjustment without misalignment after repeated use.
- Differentiating Features: Suitable for installation along emergency escape routes due to unobstructed clear width; supports wide accessibility requirements such as those found in commercial buildings or healthcare facilities.
How it works
The KT-V hinge is mounted directly onto the PVC door frame and leaf. Once installed, adjustments can be made with simple tools: you can fine-tune height, lateral position, and sealing pressure independently—ensuring smooth operation even after frequent usage cycles without removing the door from its hinges.
