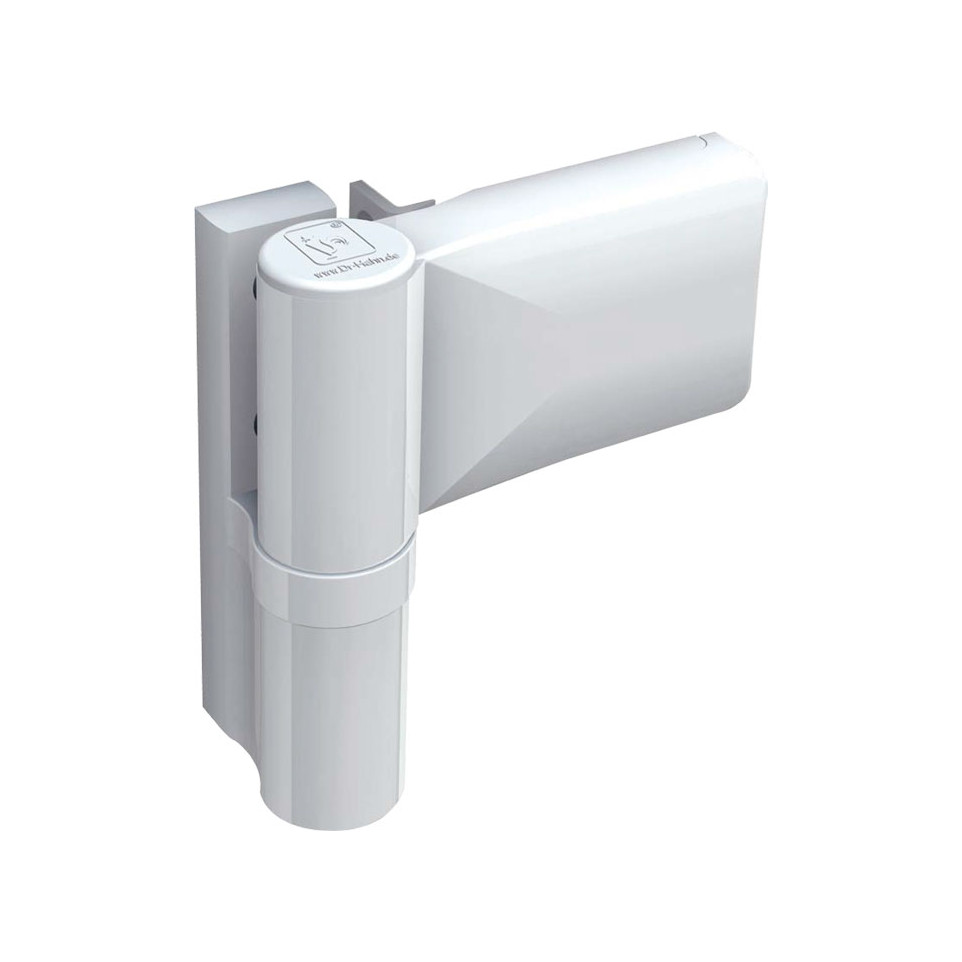

Dr. Hahn KT-V 6R Door Hinge 22-27mm RAL 9001 Individual Packaging / pc

Dr. Hahn KT-V 6R Door Hinge 22-27mm...

Estimated delivery date :  Tuesday 9 June
€27.25 HT
In stock

Ref : FGT-1243500

Quantity


Description

Product

The Dr Hahn KT-V 6R hinge is a robust PVC door hinge designed for direct installation on door frames and sashes, offering six-way continuous adjustability. It suits modern residential or commercial doors with 22–27 mm overlay and a sleek finish in RAL 9001.

Specifications

  • Made from extruded aluminum for strength and long-term durability
  • CE-certified according to EN 1935:2002, hinge class 13, with SKG 2-star security rating
  • Maintenance-free bearing point ensures silent operation over time
  • Six-way adjustability: ±5 mm horizontally, +4 mm / -3 mm vertically, seal pressure adjustable by 0.5 mm each direction
  • Supports sashes up to 140 kg (using two hinges)
  • Suitable for emergency exit and anti-burglary door applications
  • Compatible with both left and right hinged doors, supplied primarily assembled

Usage

Install the hinge directly onto the fixed frame and door sash. Adjust horizontally, vertically, and the seal pressure with the door mounted, allowing one person to fine-tune the fit without removing the leaf. Ideal for doors in homes, apartments, or commercial buildings requiring precise alignment and reliable security.

FAQ

  1. In which applications can this hinge be used?
    Suitable for uPVC entrance, internal, and side doors in both residential and commercial settings.

  2. How is the hinge adjusted once installed?
    The hinge provides continuous adjustment in six directions: horizontally, vertically, and at the seal pressure, ensuring optimal alignment with the door in situ.

  3. What is the maximum door weight supported?
    Two hinges can support a door leaf weighing up to 140 kg, depending on the specific door profile.

  4. Is this hinge maintenance-free?
    Yes, the hinge features a maintenance-free bearing point for long-term reliability and smooth movement.

  5. Can I use this hinge on security or emergency exit doors?
    Yes, it meets CE EN 1935:2002 standard requirements and has been tested on anti-burglary doors.

mvm-dt-2025-07-07

See more

Product Details

Brand Dr.Hahn
Description paumelle KT-V 6R
RAL 9001
Door weight (kg) 160kg
FGT-1243500
New
