Usage

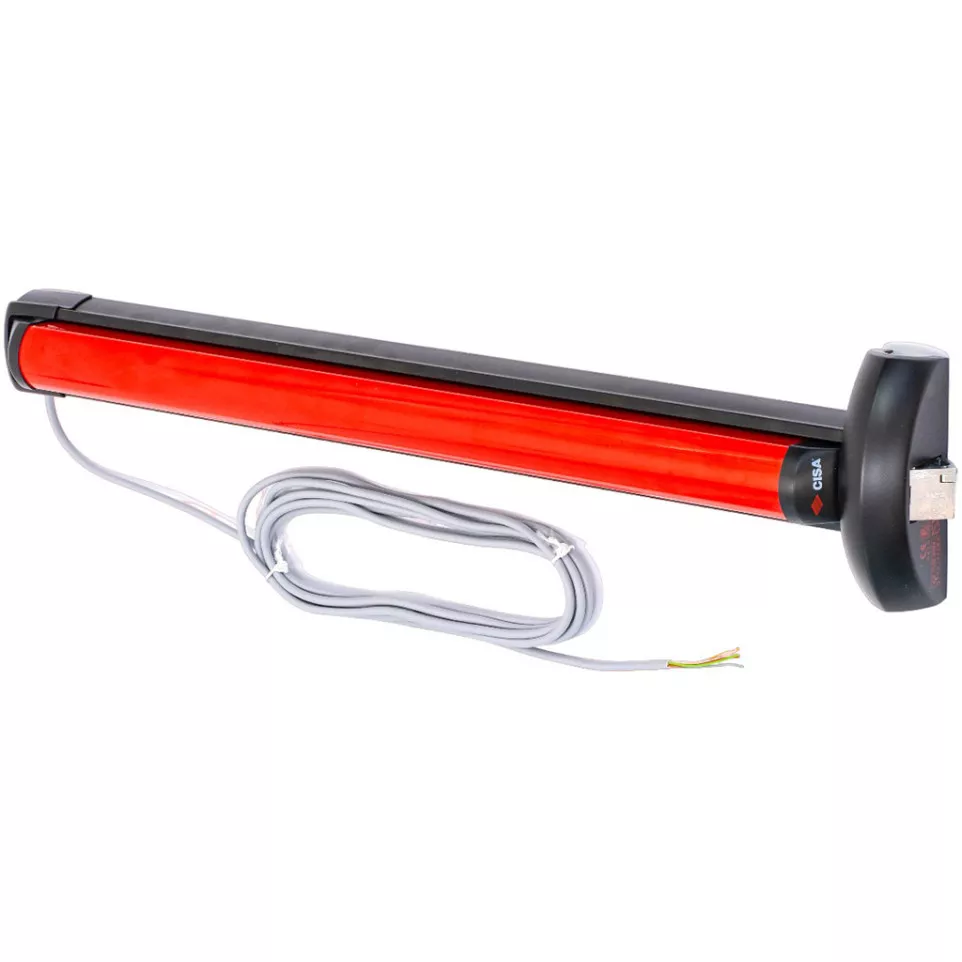

The Cisa eFast Touch 1200 mm motorized anti-panic bar is designed for controlled entry and free exit on emergency doors, ideal for commercial buildings, offices, or public spaces requiring compliant safety solutions.
Advantages
- Motorized system enables integration with access control installations for secure entry management.
- Immediate and easy manual opening from the inside ensures rapid evacuation in emergencies.
- Robust construction in painted steel and aluminum alloy enhances durability under frequent use.
- Certified to EN 1125 standards, supporting compliance with European safety regulations.
- The modular design allows straightforward maintenance and compatibility with a wide range of door types.
Specifications

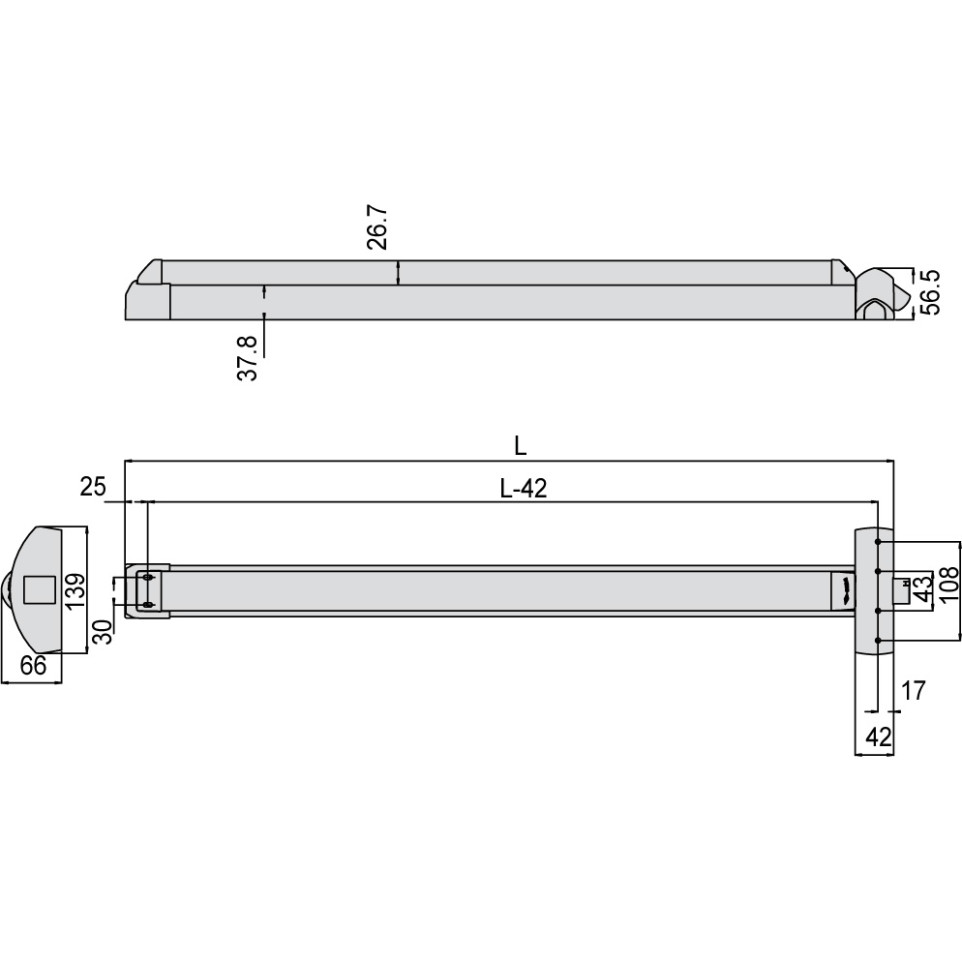

- Design & Materials: Painted aluminum/aluminum alloy cover with a red and black finish; steel bar adjustable to fit doors up to 1200 mm wide; suitable for flush/recessed installation. Motorization supports automated access control integration.
- Sustainability & Certification: Certified compliant with EN 1125; CE marked. Tested up to at least 500,000 cycles on doors weighing up to 400 kg.
- Performance Data: Operates on low voltage power supply (12–24 V DC). Supports door weights from approximately 200 kg up to maximum tested levels of over 400 kg.
- Differentiators: Entry side can be electronically managed while exit remains always free. Quiet operation due to advanced internal mechanisms; reversible left/right installation possible without disassembly.
How it works
The motorized panic bar allows the door’s exterior side to be locked or unlocked electronically via an access control system while permitting immediate manual opening from inside by pressing the touch-bar—complying fully with emergency exit requirements.
