Usage

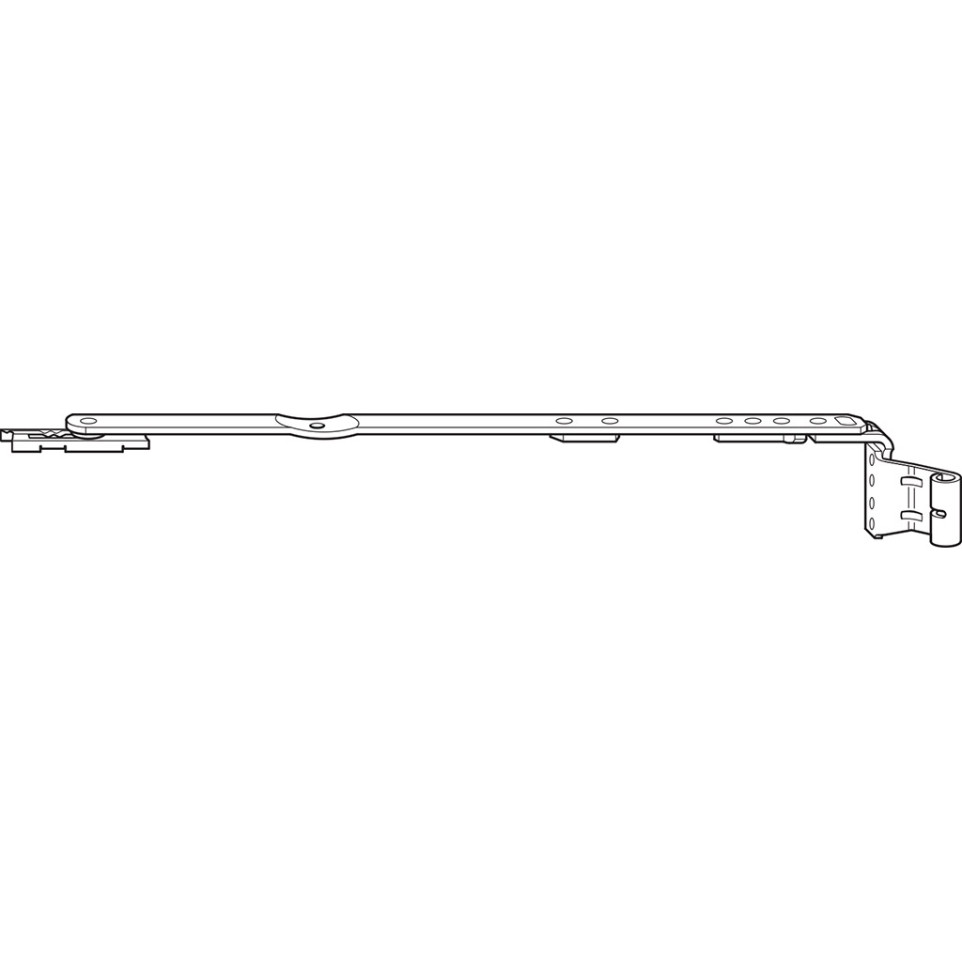

The SAV Compas 350 E5 601-800mm 4/18-9 et 12/18-9 gauche R.258076 is designed for precise tilt-and-turn functionality in wood, PVC, and aluminium windows. It ensures secure operation and efficient ventilation across multiple frame materials.
Advantages
- Compatible with wood, PVC, and aluminium window profiles for versatile installation.
- Supports a wide sash size range (601–800 mm), enabling use in various window configurations.
- Durable construction provides long-term performance under frequent operation.
- Simplifies assembly and integration within ROTO modular fitting systems.
- The left-hand orientation may limit placement in some right-opening applications.
Specifications
- Made from corrosion-resistant metal alloys engineered for high-load capacities typical of ROTO fittings used on timber, PVC, or aluminium frames[8].
- Engineered to meet industry standards for security and operational safety; robust against weathering[8].
- Sash compatibility: Widths from approximately 601 to 800 mm; functional within tilt-and-turn window designs supporting sashes up to around 130–150 kg depending on system configuration[6][5].
- Differentiating features include modular integration with existing ROTO hardware lines and options for multiple handle axes (4/18-9 &12/18-9), enhancing adaptability during installation[6][7].

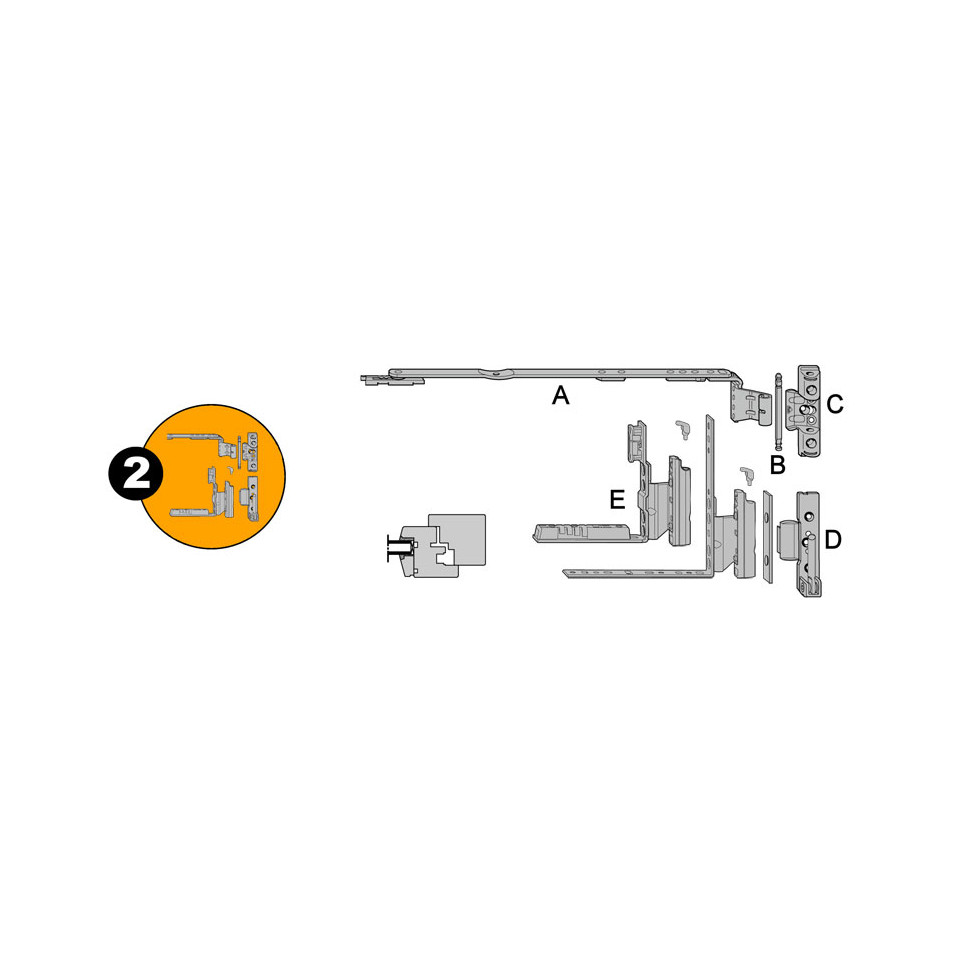

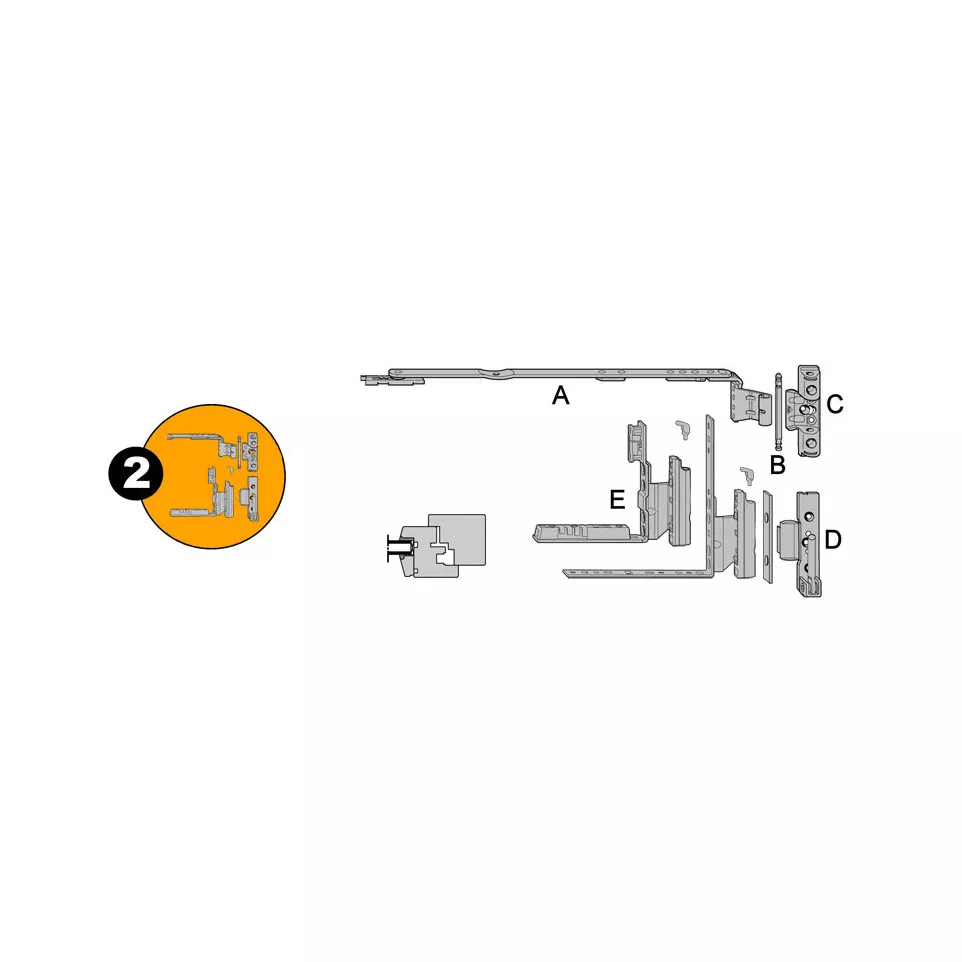

How it works
This compas component integrates into the window’s hinge mechanism to enable controlled tilting or turning of the sash. When installed according to system specifications, it provides user-friendly operation while maintaining a tight seal when closed for energy efficiency and security[8][6].
