Product

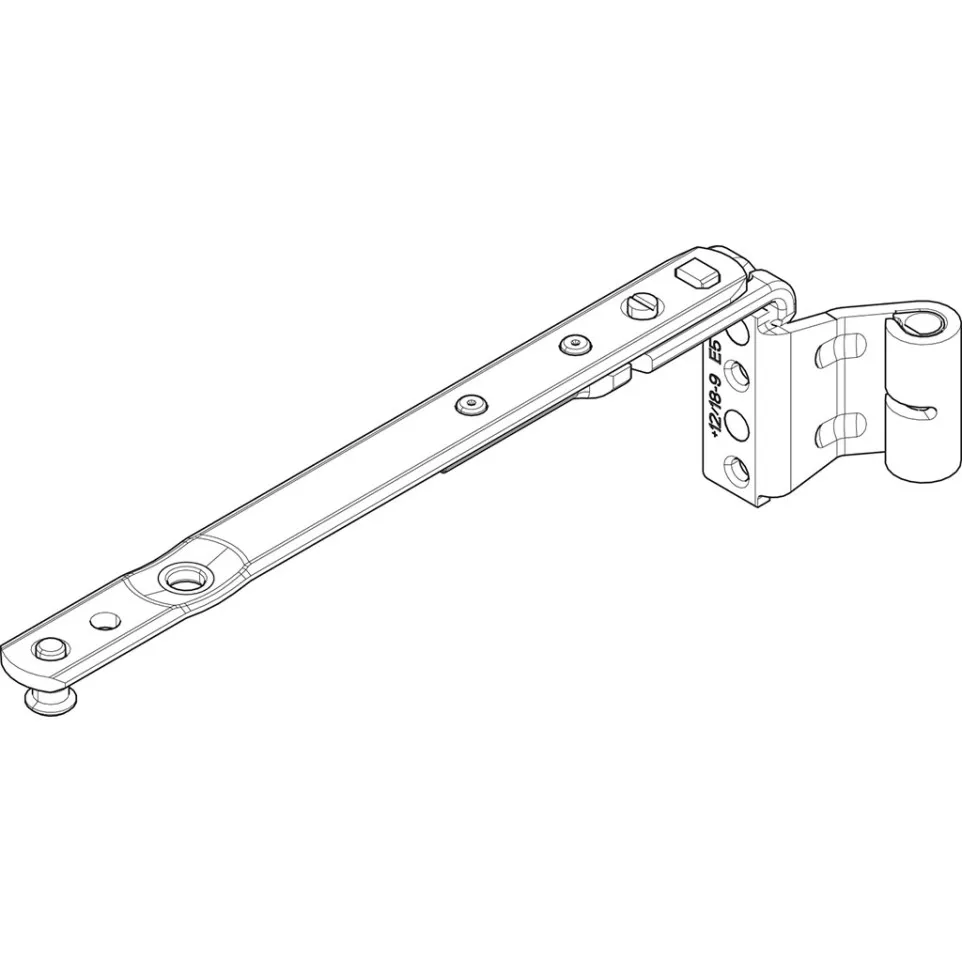

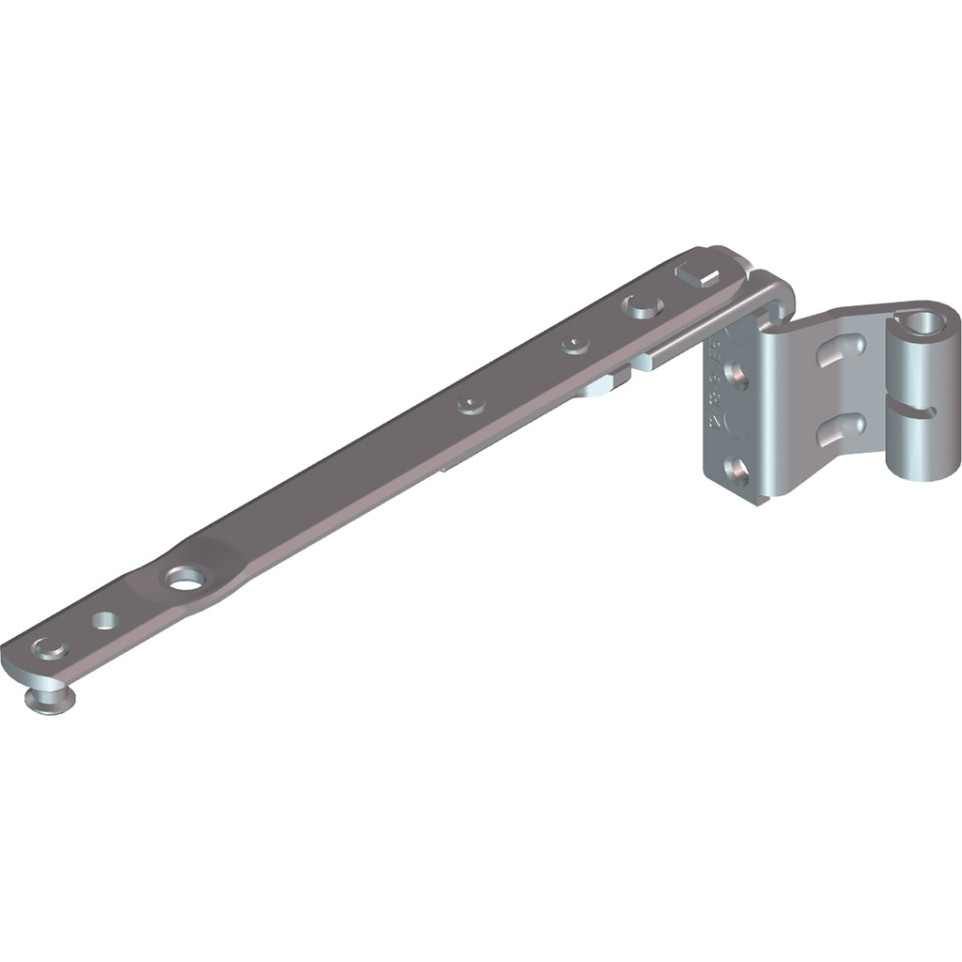

The SAV Compas 150 E5 290-410mm 4/18-9 and 12/18-9 right scissor stay by Roto is designed for wood, PVC, and aluminium profile systems, supporting casement weights up to 150 kg and allowing sash openings up to 180°.
Specifications
- Engineered for wood profile systems 4/15-9, 4/18-9, 12/18-9, and 12/18-13, with or without weather seals
- 5 mm drilling depth required only on the fixed frame, minimizing thermal bridging and condensation at pivots and stays
- Narrow-profile pivots and stays; lateral clearance 21 mm, upper clearance 0 mm, lower clearance 5 mm
- Surface treatment can be applied entirely before frame assembly; support bearings may be placed and fixed prior to frame assembly
- Recommend compensation shim FG 1603420 for 15 mm overlap at the lower pivot
Usage
This scissor stay is suitable for right-handed tilt-and-turn or turn-only windows and balcony doors in residential or commercial applications. It is installed on the fixed frame with a shallow 5 mm drill depth, allowing the sash to swing up to 180° for easy cleaning and maximum ventilation, while supporting heavier sashes up to 150 kg.
FAQ
-
Which systems are compatible with the SAV Compas 150 E5?
It is compatible with wood profiles 4/15-9, 4/18-9, 12/18-9, and 12/18-13, with or without a weather seal.
-
What is the maximum sash weight supported?
This fitting supports a sash weight of up to 150 kg.
-
How much does the sash open with this hardware?
The hardware allows sash openings of up to 180 degrees.
-
What clearances should I allow for installation?
Allow 21 mm laterally, 5 mm at the bottom, and no clearance required at the top.
-
Do I need any additional components for installation?
For 15 mm overlap on the lower pivot, use the compensation shim FG 1603420 to ensure a proper fit.
