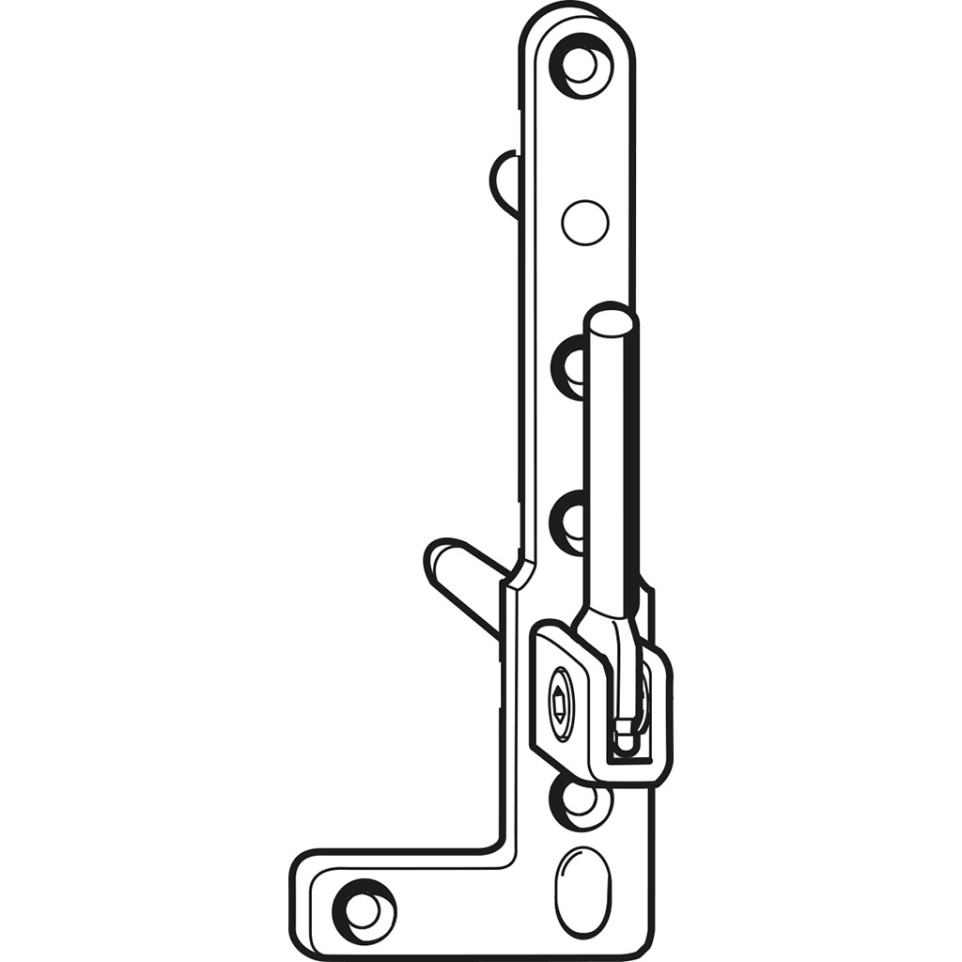

Roto K6/130 Male Pivot for Left PVC with 2 Pins 6mm Diameter per Piece

Usage

The SAV Pivot mâle de dormant K6/130 L kg is designed for left-hand PVC window frames, enabling the secure and durable pivoting of heavy sashes in residential or commercial installations.

Advantages

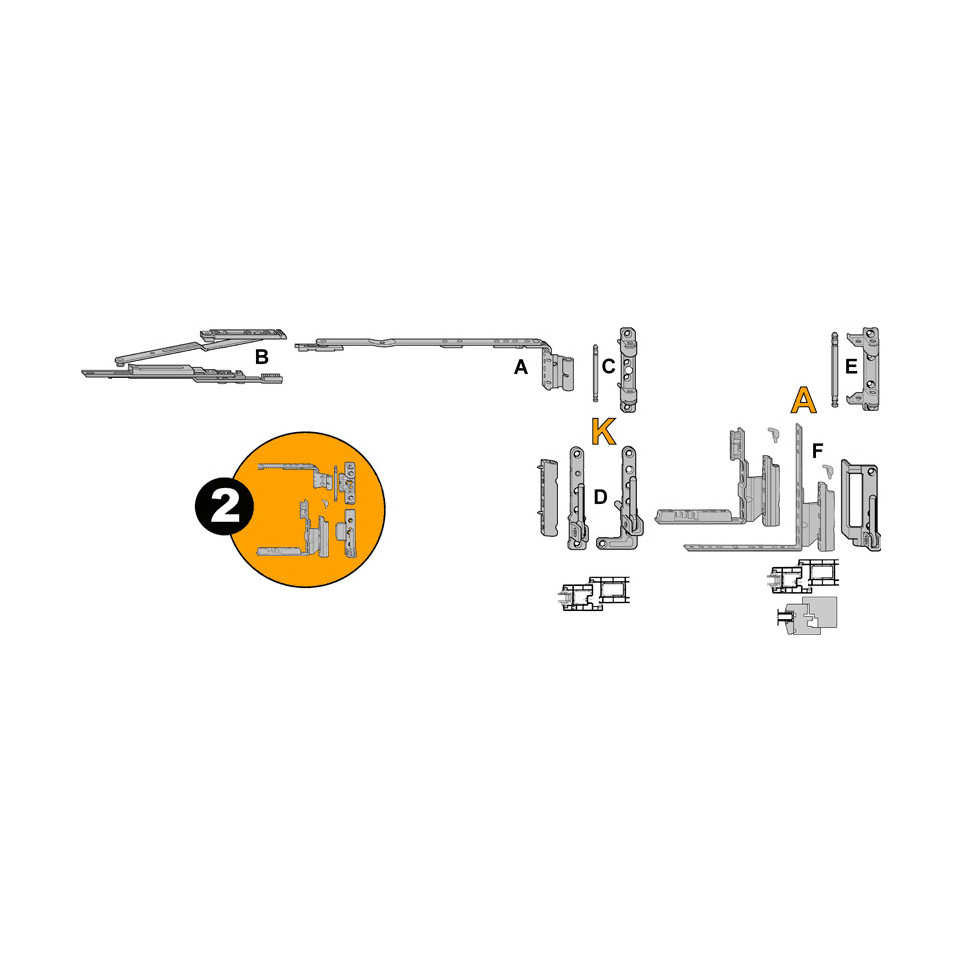

• Compatible with ROTO K systems for PVC frames and adaptable to various profile dimensions.
• Supports sash weights up to 130 kg, allowing installation of large or reinforced windows.
• Equipped with two Ø 6 mm pins to ensure stable and precise rotation.
• Lateral, height, and pressure adjustments offer flexibility during installation and long-term maintenance.
• Pivot design allows window opening angles up to 180°, maximizing ventilation options while maintaining security.

Specifications

• Manufactured using robust materials compatible with wood, PVC, or aluminium frames depending on system configuration. Two hardened steel pins Ø 6 mm included for mounting stability.
• Bearing design ensures resistance against wear; compliant with industry standards for window hardware quality and performance set by Roto fittings systems.
• Sash weight capacity: up to either 100 or max.130 kg depending on hinge configuration. Adjustment ranges: height (+/-2 mm), width (+4/-2 mm), pressure (+1/-1 mm).
• Differentiating features include three-dimensional adjustment capability (height/width/pressure) and compatibility with tilt-first functionality (TILT FIRST) allowing prioritized tilt before turn operation when required by handle action inversion.

How it works

The SAV Pivot mâle de dormant installs onto the frame’s fixed part using its supplied pins. Once positioned, it enables smooth pivotal movement of the sash while permitting multi-directional adjustment for precise fitment. Maintenance is minimal after initial setup.
