Usage

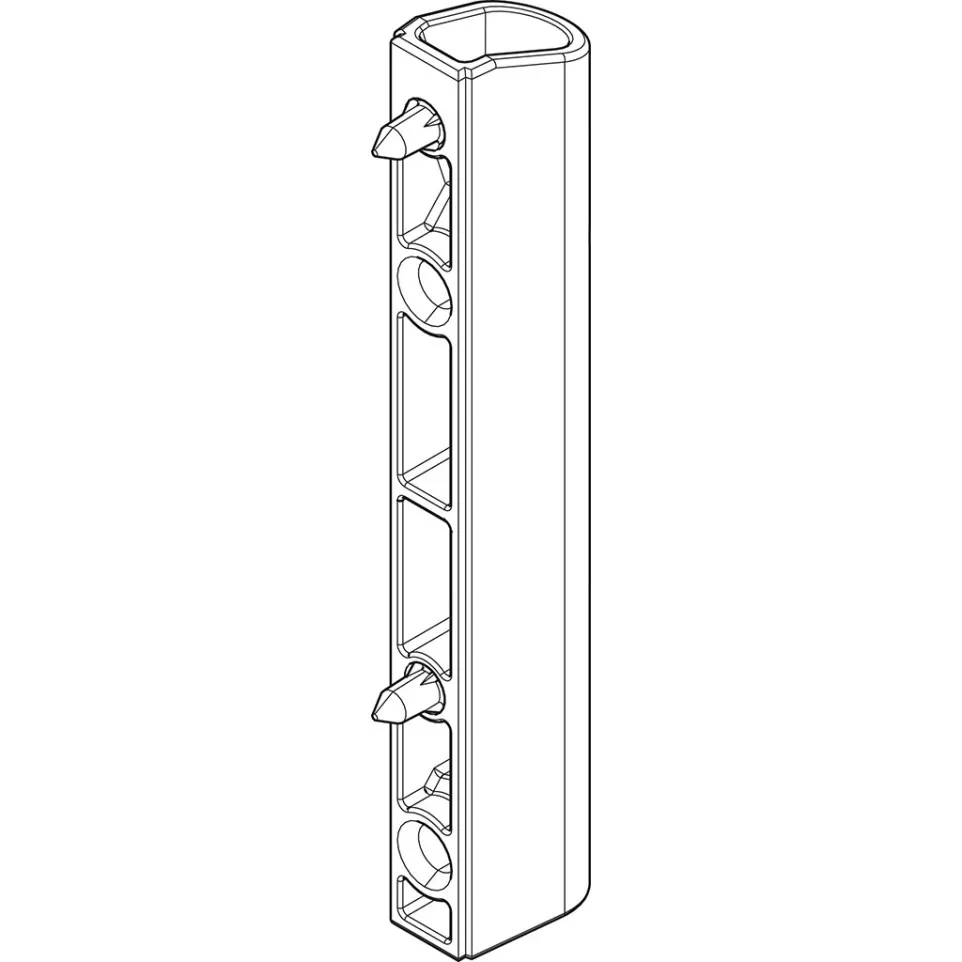

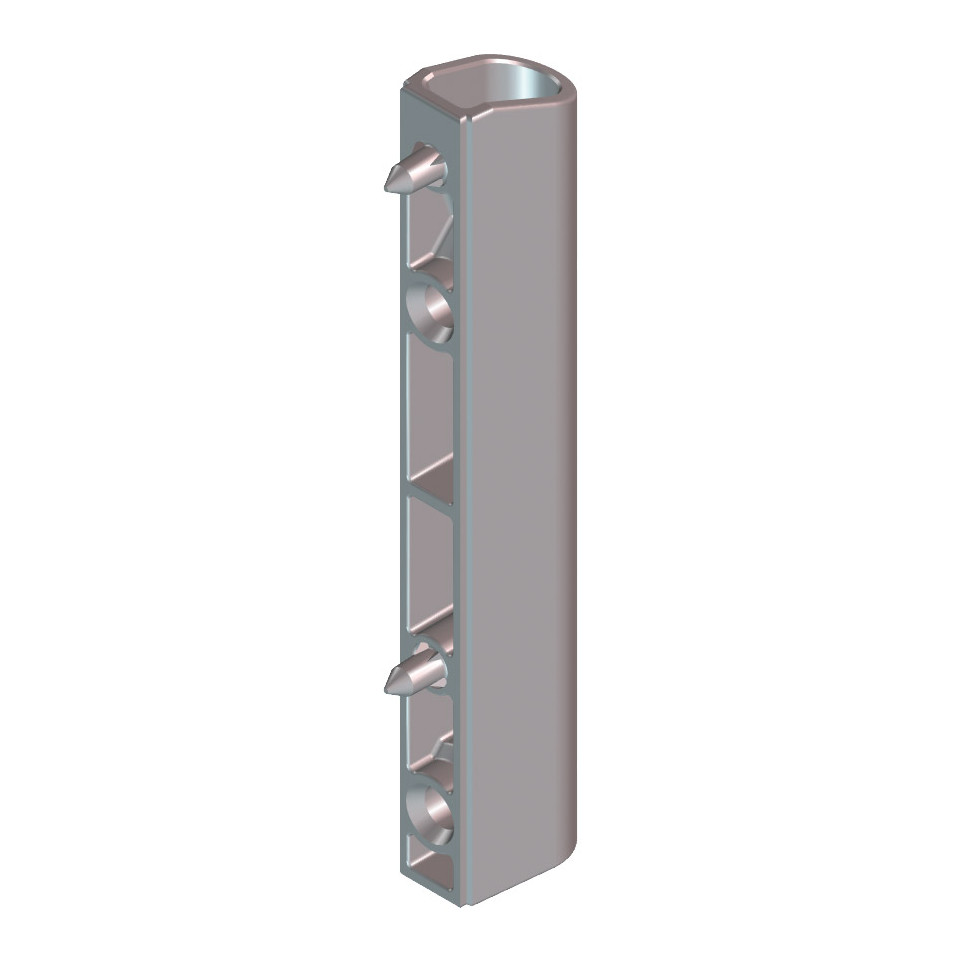

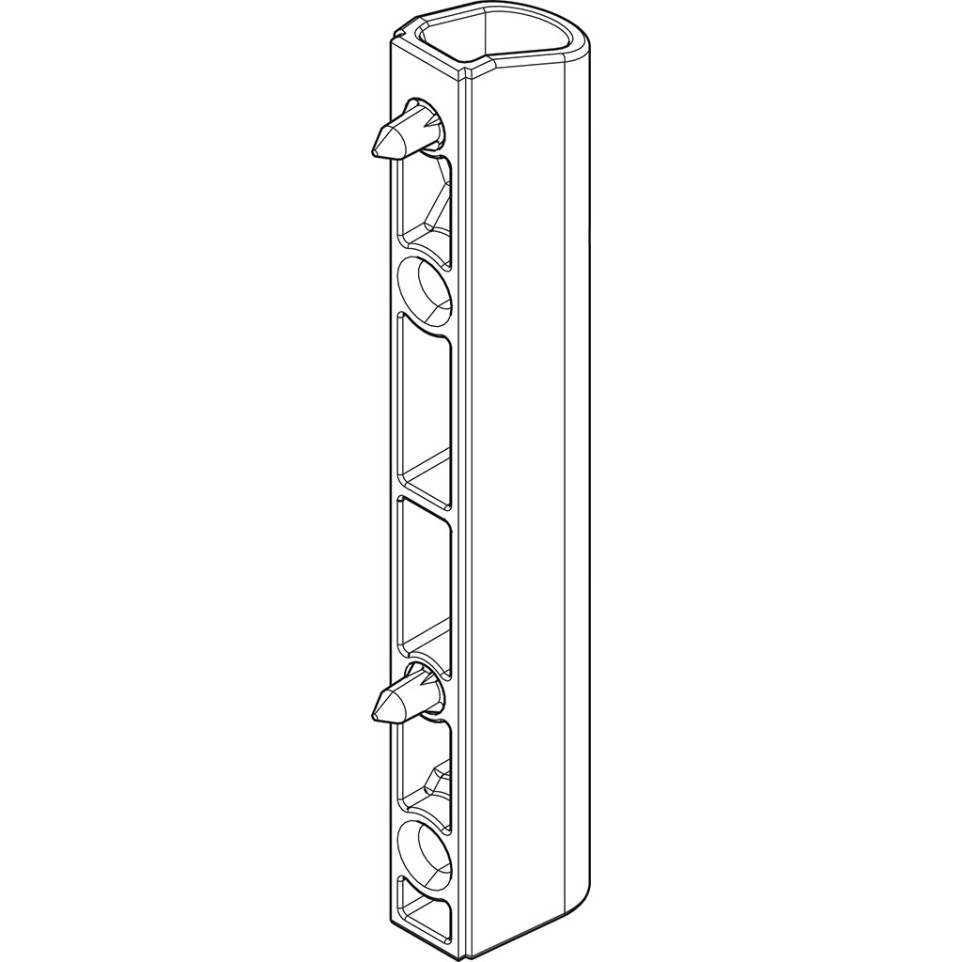

The SAV Pivot femelle, plots Ø 3 mm Roto K3/100 R.230343 is designed for use in tilt-and-turn and turn-only window or door systems made of wood, PVC, or aluminium. It ensures stable rotational functionality for sashes within these frames.
Advantages
- Compatible with wood, PVC, and aluminium window and door profiles
- Engineered to support secure pivot movement for sashes
- Facilitates easy installation within industry-standard groove systems
- Durable construction ensures long-lasting performance under regular use
- Simplifies maintenance due to accessible mounting design
Specifications
- Design: Precision-engineered female pivot with Ø 3 mm mounting studs; suitable for standard groove applications in ROTO K3/100 systems.
- Materials: High-quality metal components provide mechanical strength and corrosion resistance.
- Lifespan & Standards: Developed in compliance with leading European standards for ROTO fittings; typical operational lifespan matches other components in the system.
- Bearing Capacity: Suitable for sashes up to approximately 130–150 kg depending on profile type and assembly context[5][8].
- Differentiating Features: Universally compatible with multiple window materials; supports sash opening angles up to approximately 180° when used as part of a complete system[5][8].
How it works
This female pivot is mounted into the frame’s designated groove. Once installed, it acts as a rotational bearing point that allows the sash or leaf of a window or door to open smoothly around its axis while ensuring reliable support throughout operation[1][8].
