Usage

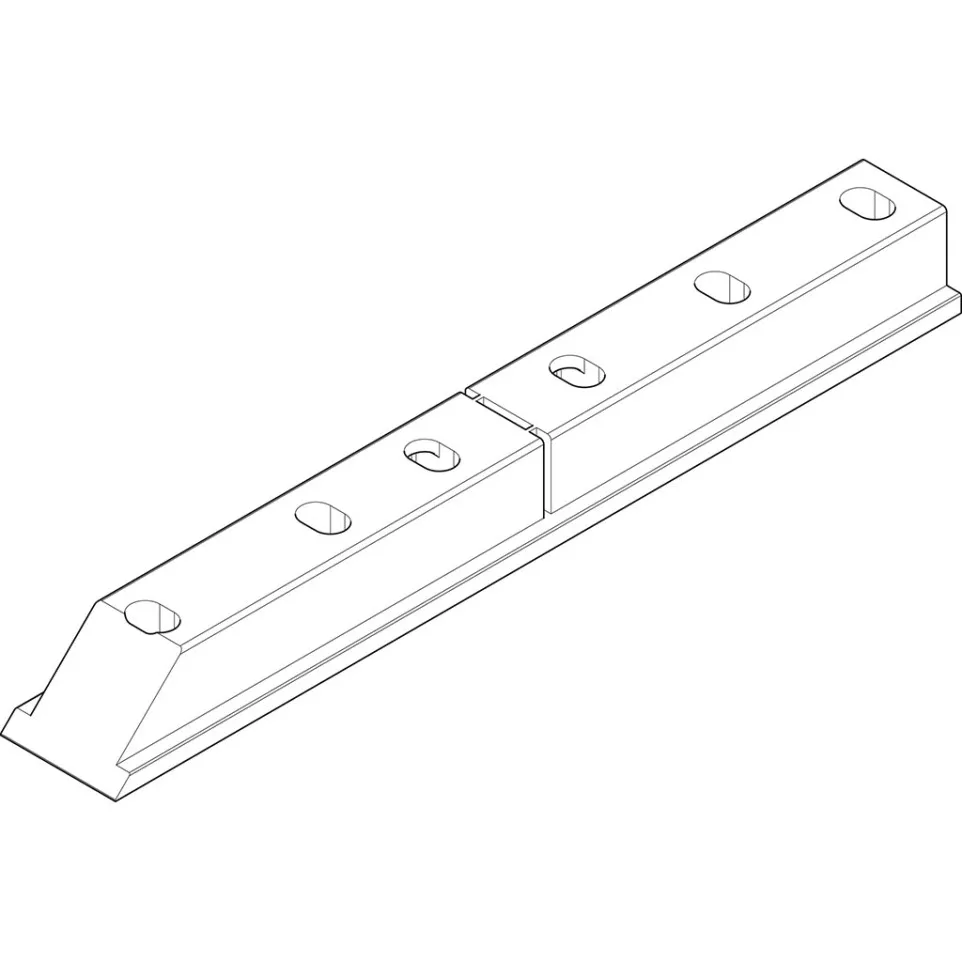

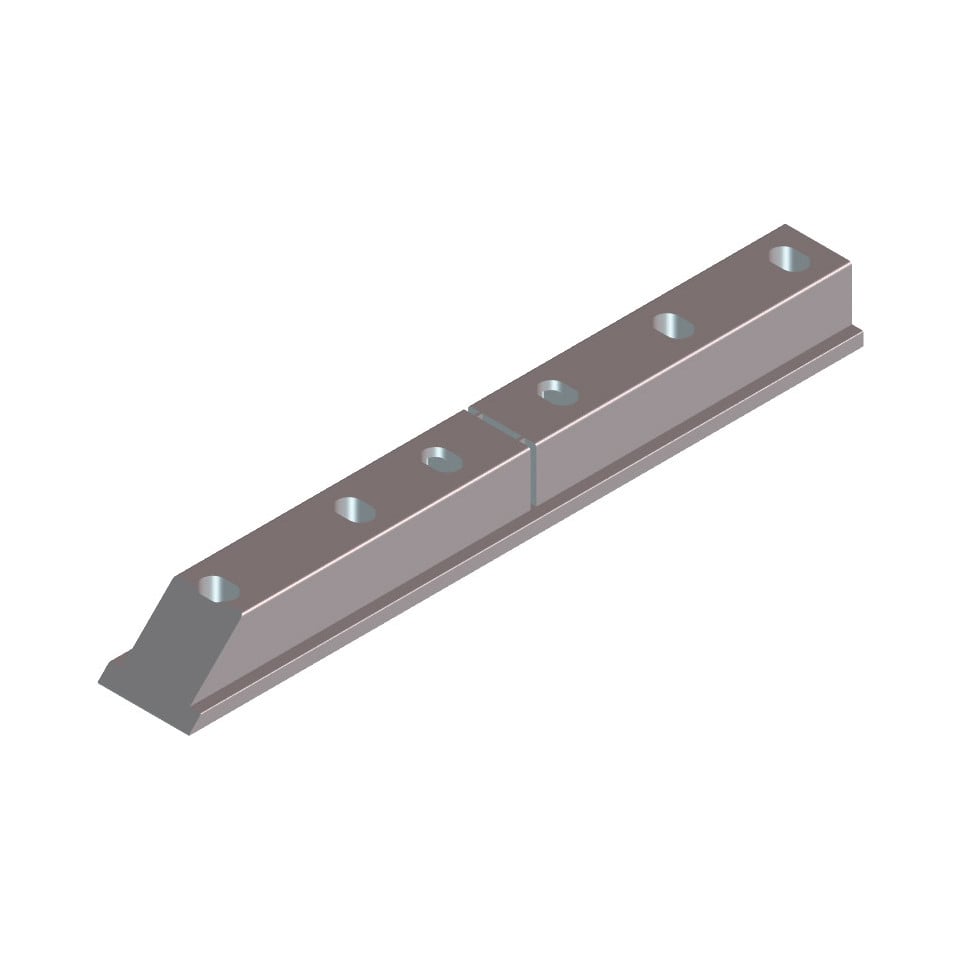

The SAV Entretoise à gorge 16 mm Roto E20 R.211374 is designed as a spacer fitting for use in window and door systems featuring a 16 mm hardware groove. It is suitable for applications in wood, PVC, and aluminium frames.
Advantages
- Compatible with multiple frame materials: wood, PVC, and aluminium
- Enables secure alignment and spacing of fittings within a standardized 16 mm groove
- Supports precise three-dimensional adjustment: height (+2.5/-2.0 mm), width (+2.5/-2.0 mm), pressure (+0.5/-0.5 mm)
- Simplifies maintenance operations thanks to its straightforward integration into ROTO systems
- A minor limitation may be that it requires matching profiles with the correct groove dimension for proper fitment[1][5]
Specifications
- Design: Spacer with integrated groove notch; compatible with Roto E20 system fittings for wood, PVC, and aluminium windows
- Materials: Durable corrosion-resistant metal ensures longevity under standard usage conditions[7]
- Bore depth: 20 mm; adjustment ranges—height +2.5/-2.0 mm, width +2.5/-2.0 mm, pressure +0.5/-0.5 mm[1]
- Differentiating feature: Supports multi-material compatibility within the same hardware configuration; quick installation aligned to industry standards[1][7]
How it works
This spacer fits into the designated hardware groove (16mm) of window or door frames made from wood, PVC or aluminium as part of the fitting assembly process; installers adjust its height, width or pressure to ensure optimal positioning and function of connected hardware elements.
