Usage
The SAV Compas 350 Roto A et K 12/20-13 is designed for integration into ROTO window and door fittings made from wood, PVC, or aluminium. It helps ensure controlled opening, reliable positioning, and long-term stability for outward-opening elements.
Advantages
- Compatible with wood, PVC, and aluminium frames for flexible application in various construction projects[1][2].
- Enables smooth and balanced movement of sashes or leaves through engineered compass action[3].
- Supports robust sealing performance even under variable wind pressure conditions[3].
- Simplifies installation with modular design compatible with other Roto hardware systems[8][10].
- If used improperly or on incompatible profiles, full performance may not be achieved.
Specifications
- Constructed with corrosion-resistant coated steel or optionally stainless steel components for enhanced durability in demanding environments[3][10].
- Satisfies leading European hardware quality standards; engineered to withstand high-frequency use typical of commercial and residential openings.
- Accommodates sash weights commonly from approximately 24 kg up to as much as ~130 kg depending on system configuration; movement remains consistent within specified limits[3][6].
- Differentiated by its precision compass mechanism ensuring the sash remains open at any selected angle while maintaining weather tightness when closed[3]. It integrates seamlessly within modular ROTO fitting systems.
How it works

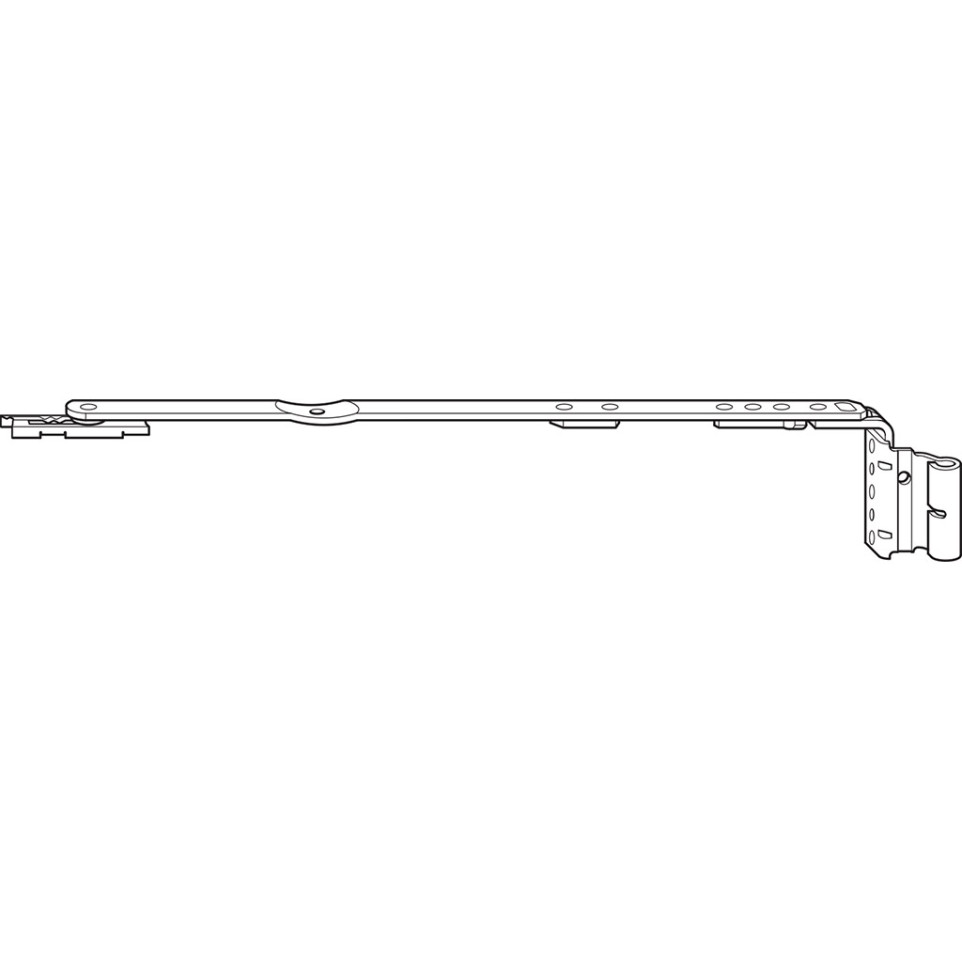

The SAV Compas 350 uses a mechanical arm assembly that attaches to both the fixed frame and the moving sash. As the window opens outward, the compas guides motion while holding the opening securely at each set angle. This guarantees safety, precise control of ventilation settings, and stable closure under repeated operation cycles[3][6].
