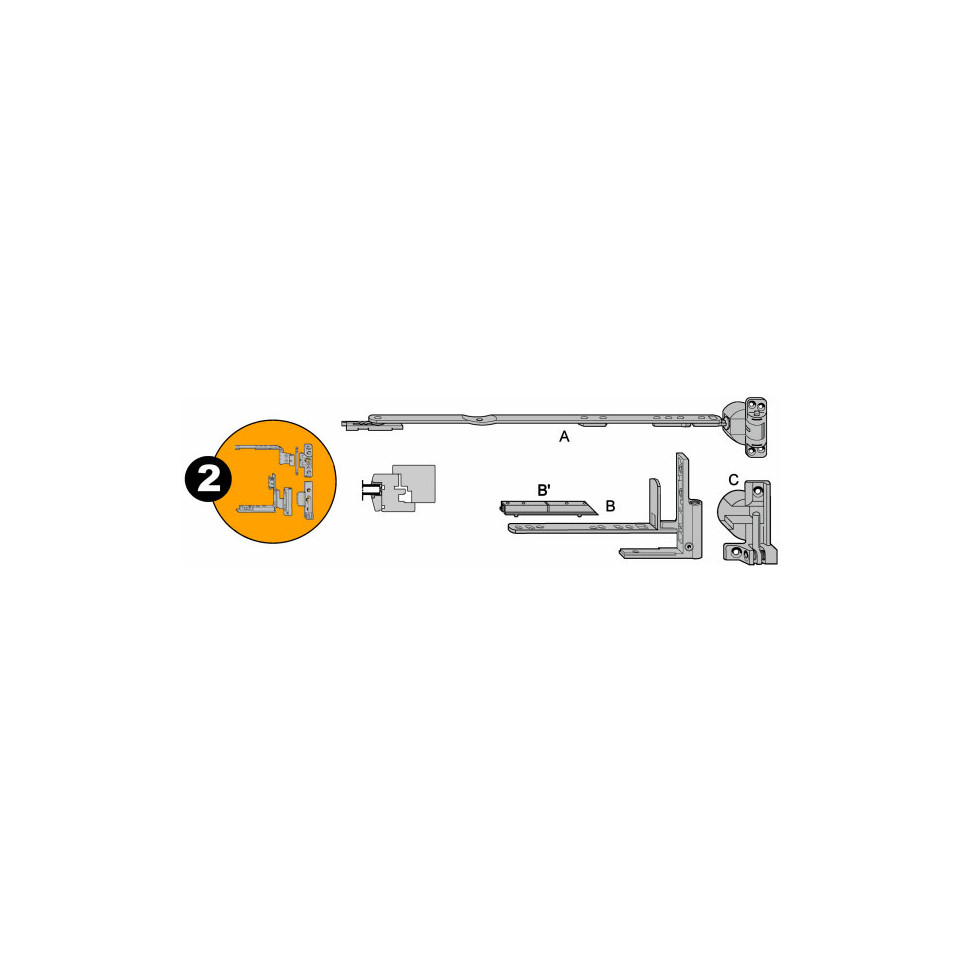

The SAV Compas 250 E20 4/15/9 Roto E20 411 is a hinge fitting designed for left-opening sashes, compatible with timber, PVC, or aluminium profiles in window or door systems. It supports robust performance and accurate positioning for profile systems with or without overlap seals.
Specifications
- Constructed with corrosion-resistant alloys for durability in high-use environments
- Suitable for wood, PVC, or aluminium profiles, 4/15-8 systems
- 20 mm drilling depth
- Space requirements: 25 mm lateral, 16 mm upper, 20 mm lower
- 3D adjustment: height ±2.5 mm, width ±2.5 mm, gasket pressure ±0.5 mm
- Maximum sash weight: 130 kg
- Enables sash opening up to 180°
Usage
Install this fitting in compatible window or door frames to ensure secure, adjustable mounting for heavy sashes. The product allows precise three-dimensional adjustment—height, width, and pressure—making it suitable for professional applications in new builds or renovations where performance and accurate alignment are essential.
FAQ
-
What types of profiles are compatible with this fitting?
- It is designed for timber, PVC, or aluminium profiles of the 4/15-8 system, with or without overlap seals.
-
How much weight can the hinge support?
- The maximum supported sash weight is 130 kg.
-
Does the fitting allow for sash adjustment after installation?
- Yes, it provides three-dimensional adjustment: height and width ±2.5 mm, pressure ±0.5 mm.
-
What is the maximum sash opening angle?
- The product enables sash opening up to 180°.
-
Are there specific installation dimensions required?
- Installation requires 20 mm drilling depth and provides space requirements of 25 mm lateral, 16 mm upper, and 20 mm lower.
