Usage

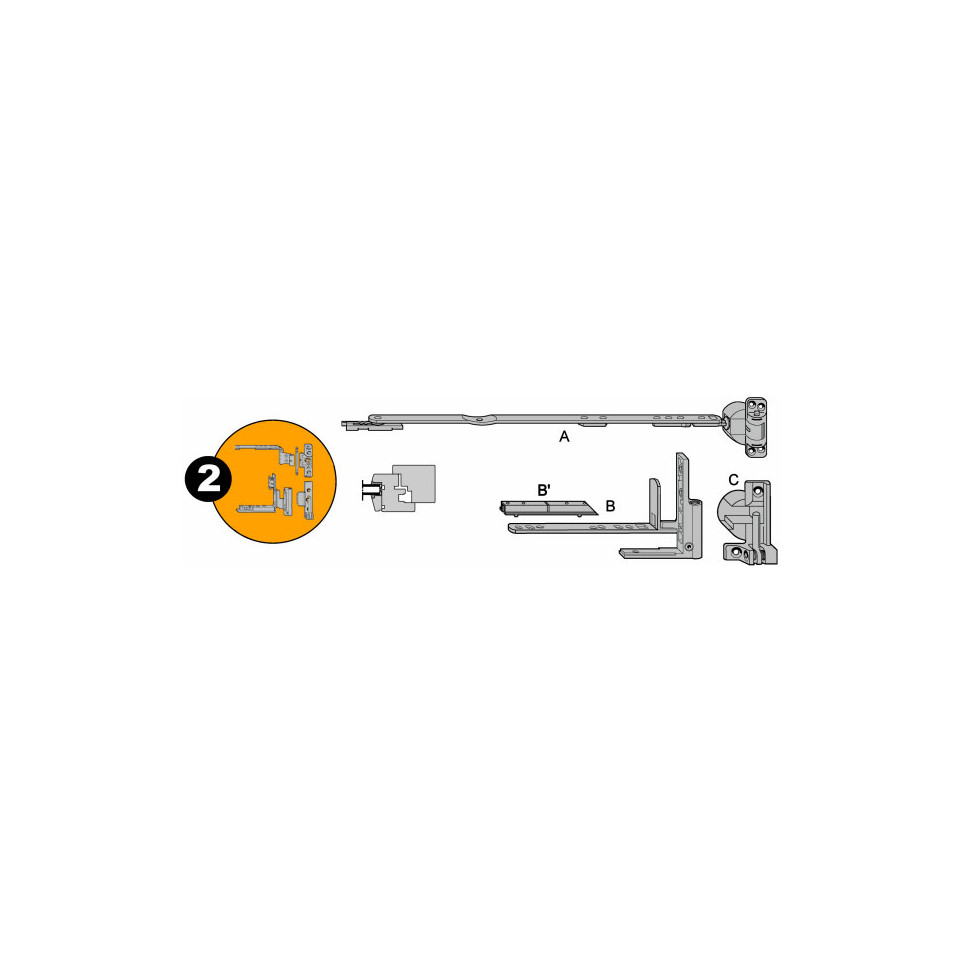

The SAV Compas 150 E20 4/15/9 Roto E20 290 - 410mm right-hand fitting is designed for secure and adjustable window opening in wood, PVC, and aluminium frames. It is suitable for use in residential and commercial window installations.
Advantages
- Compatible with wood, PVC, and aluminium windows for versatile application.
- Robust construction ensures long-term durability under frequent use.
- Adjustable length (290–410 mm) allows precise adaptation to various sash sizes.
- Smooth operation reduces friction and wear on window sashes.
- A minor drawback: requires correct sizing to match specific frame dimensions during installation.
Specifications
- Constructed from high-quality corrosion-resistant materials suited for multiple frame types.
- Engineered to meet industry standards for reliability, including compliance with established fitting grooves (typically 16 mm).
- Supports adjustable opening between approximately 290 mm and 410 mm; compatible with windows weighing up to around 130 kg when used within system limits.[1][7]
- Differentiated by its adaptability across material types (wood, PVC, aluminium) and effective load distribution during operation.[4][7]
How it works
This compas fitting attaches securely to the window sash and corresponding frame. By pivoting or sliding the mechanism, users can open or close the sash smoothly while ensuring stable positioning at different ventilation angles. Installation adjustments optimize fit according to individual frame dimensions.
