Laserliner ArcoMaster 40cm Digital Angle Gauge per piece

Product

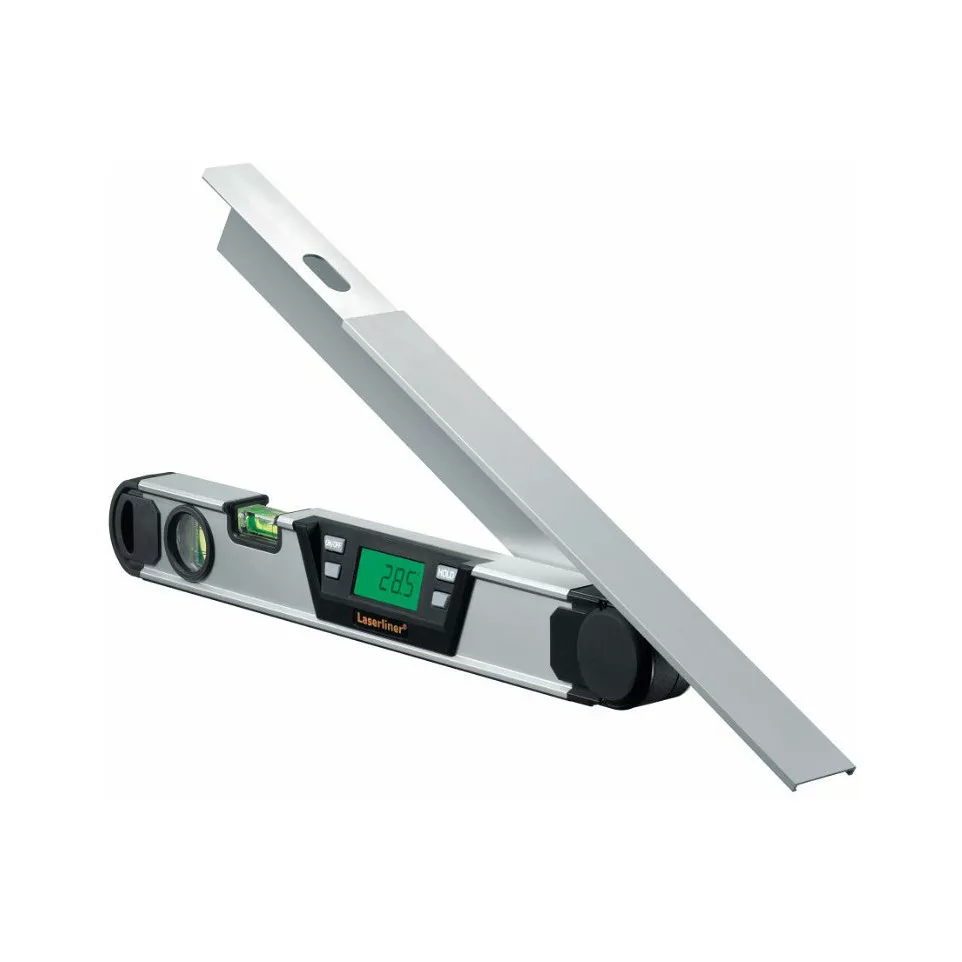

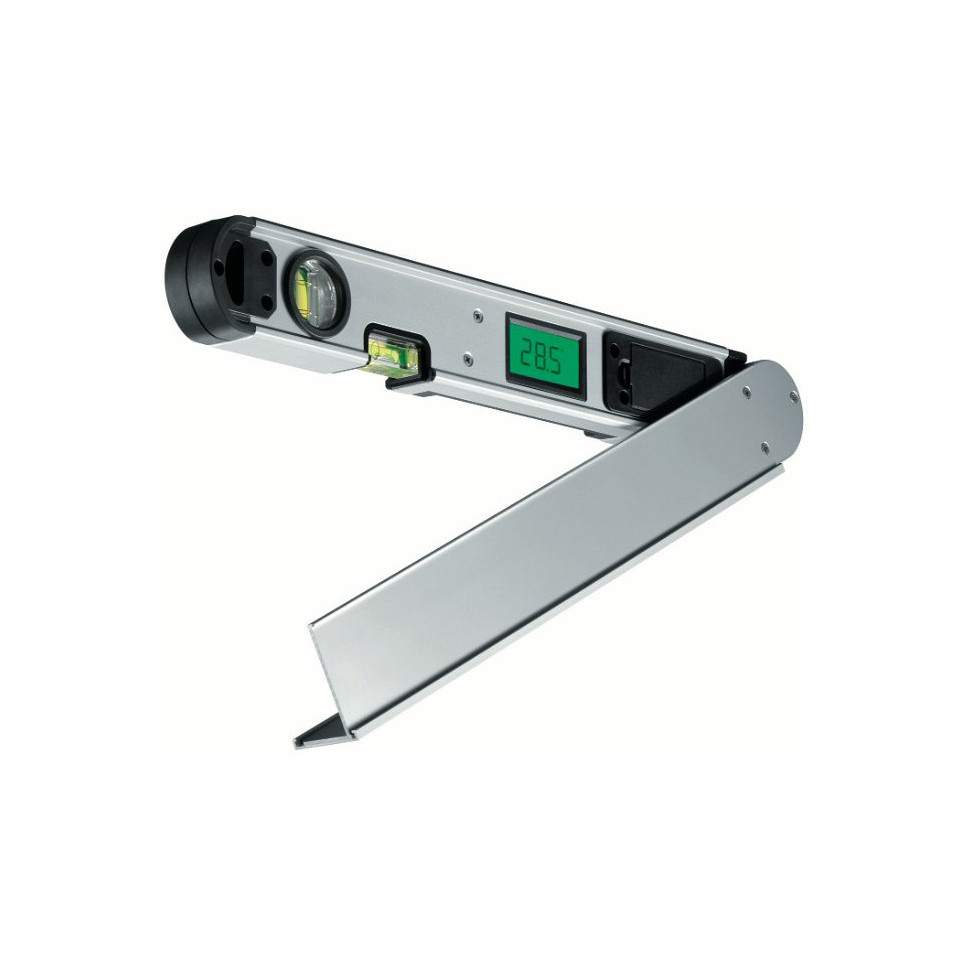

The LaserLiner ARCOMASTER 40cm is a digital electronic angle meter designed for precise measurement of angles ranging from 0° to 220°. Ideal for construction, woodworking, and fitting tasks, it features an integrated extensible bevel and dual illuminated displays for flexible use on site.

Specifications

• Robust aluminium construction with extendable bevel for measuring hard-to-reach angles
• Measurement range: 0°–220°, angular measurement accuracy: ±0.1°, vial precision: ±0.25 mm/m
• Equipped with two illuminated LCD screens (front and rear), automatic bisector calculation, data hold function, and auto shut-off after 3 minutes
• Length: 40 cm; overall dimensions: 420 x 57 x 40 mm; weight with batteries: 0.8 kg
• Water and dust protection rating: IP54; powered by 2 AA batteries with up to 8 hours of operation

Usage

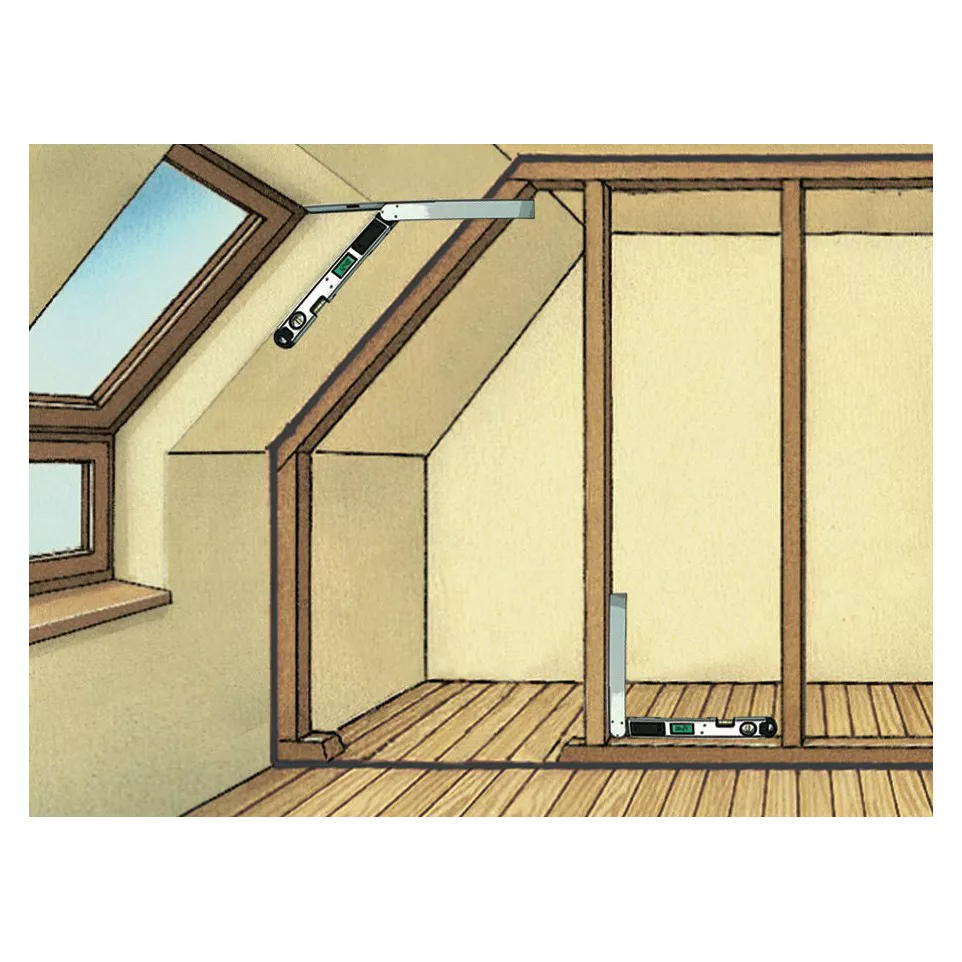

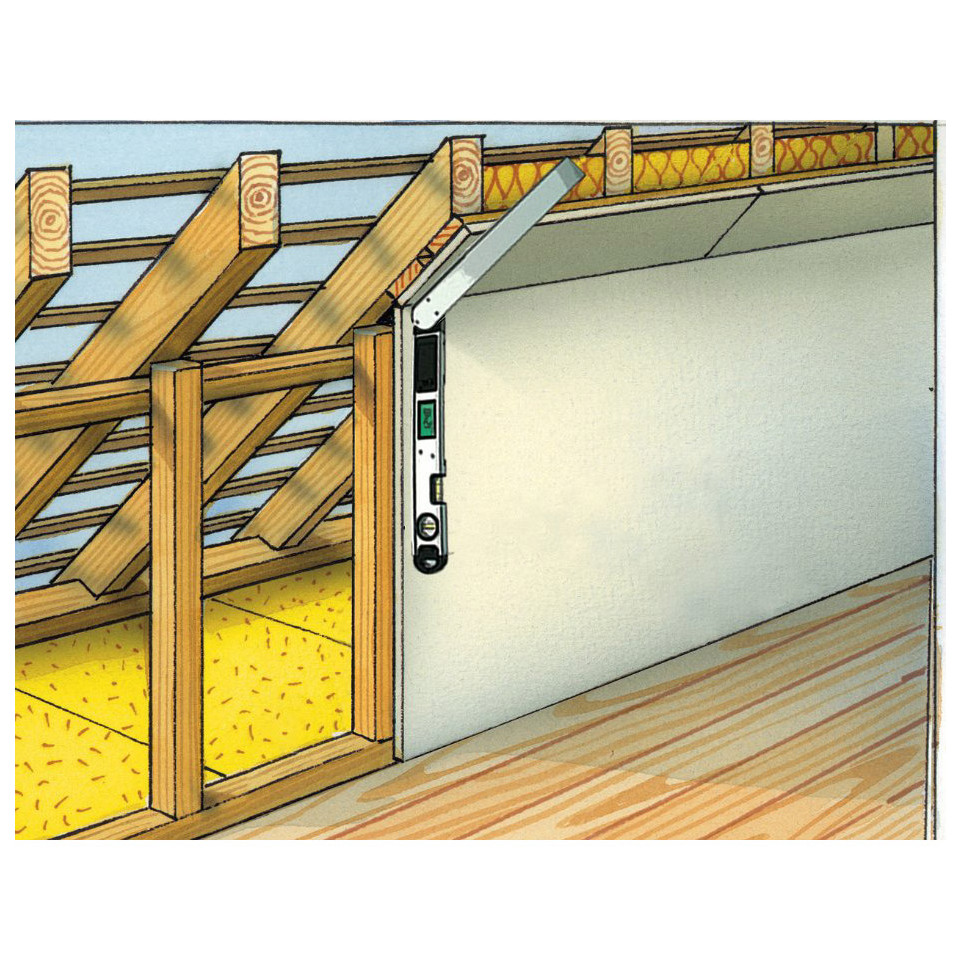

Place the ARCOMASTER at the desired measurement point. Use the integrated vials to align horizontally or vertically, then extend the bevel as needed for angle measurement. Simultaneously read angles on the front or rear LCD, use the hold function to save results in difficult positions, and employ the automatic bisector calculation for precise mitre cuts.

FAQ

1. What angles can the ARCOMASTER 40cm measure?

   • It measures angles from 0° to 220°, allowing both internal and external measurements.

2. How accurate is the device for angle and vial readings?

   • It provides angular measurement precision of ±0.1° and vial precision of ±0.25 mm/m.

3. What kind of display does it have?

   • It features bright, illuminated LCD screens on both front and rear, visible even above head height.

4. Is the ARCOMASTER 40cm suitable for use in dusty or damp conditions?

   • Yes, its IP54 rating ensures resistance to water and dust ingress.

5. Can the device automatically calculate mitre angles?

   • Yes, it includes an automatic bisector calculation function, useful for quick and accurate mitre cuts.
