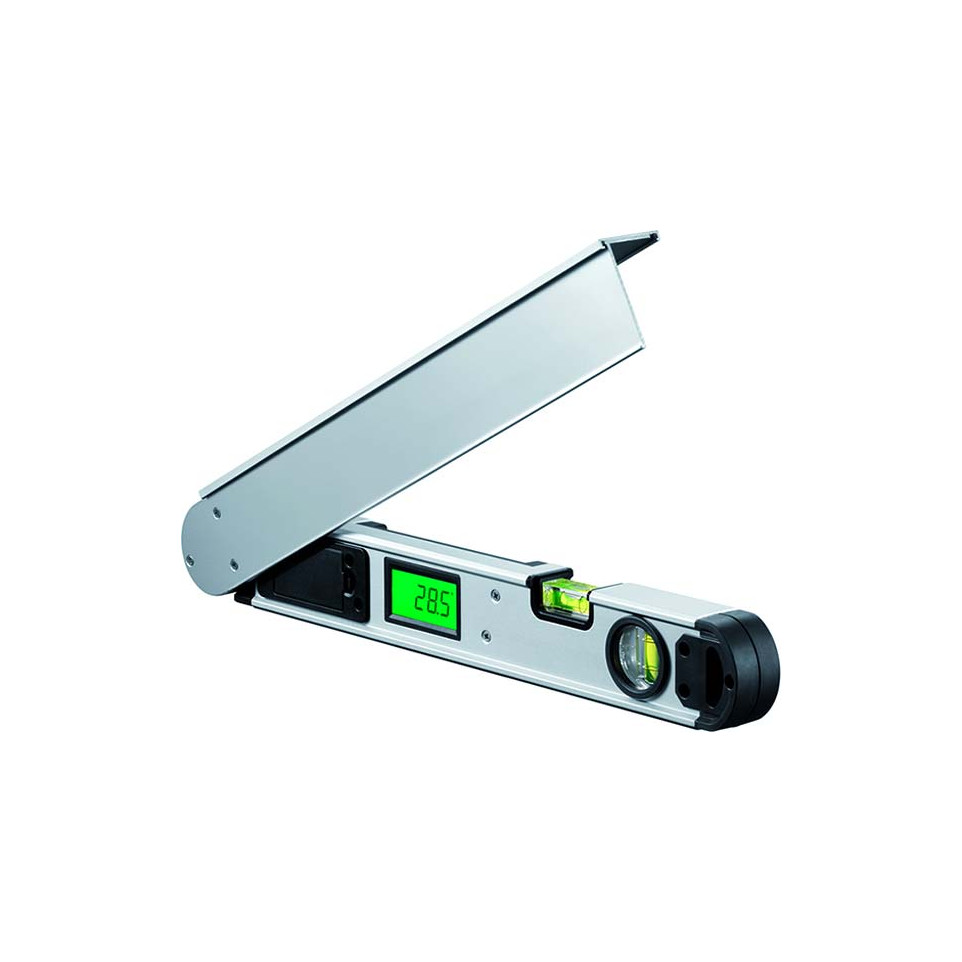

The Rapporteur d'angle électronique LaserLiner ARCOMASTER 60cm is a digital electronic angle measuring device designed for precise measurements of internal and external angles. It is particularly useful for tasks such as measuring roof angles or fitting furniture and windows.
Advantages
- Internal and external angles can be precisely determined.
- An illuminated display on both the front and rear shows the measured value in large digits, making it suitable for overhead measurements.
- The hold function allows the display to be read later when used in inaccessible locations.
- The extensible bevel is useful for reaching difficult-to-access areas.
- High accuracy with ±0.2° in angle measurement.
- Long operating time of approximately 8 hours with 2 x 1.5V LR6 (AA) batteries.
- Operates within a wide temperature range from 0°C to 50°C and up to 4000 meters above sea level.
Specificities
- Resolution of 0.1° for precise angle measurements.
- Display accuracy of 1 decimal place.
- Dimensions: 40 mm x 57 mm x 420 mm.
- Weight: 800 grams including batteries.
Operation
To use the Rapporteur d'angle électronique LaserLiner ARCOMASTER 60cm, simply extend the bevel to the desired angle, read the measurement on the illuminated display, and use the hold function to capture the reading for later reference.
