Usage
This lockable Hoppe Kompakt Hamburg window handle is designed for secure opening and closing of tilt-and-turn windows made from aluminium, wood, or PVC. Ideal for residential and commercial spaces requiring controlled window access.
Advantages
- Compatible with aluminium, wooden, and PVC window profiles.
- Integrated push cylinder locking mechanism with reversible key enhances security.
- 90° stop-in position allows precise control over window operation.
- Sleek design without base plate for a minimalist appearance.
- Cylinder lock maintains child safety but may require the key nearby for frequent use.
Specifications
- The handle is crafted from durable aluminium with a zamak base; surface finish F1 (silver).
- Tested to EN 13126-3 standards for long-term mechanical performance; European manufacturing quality.

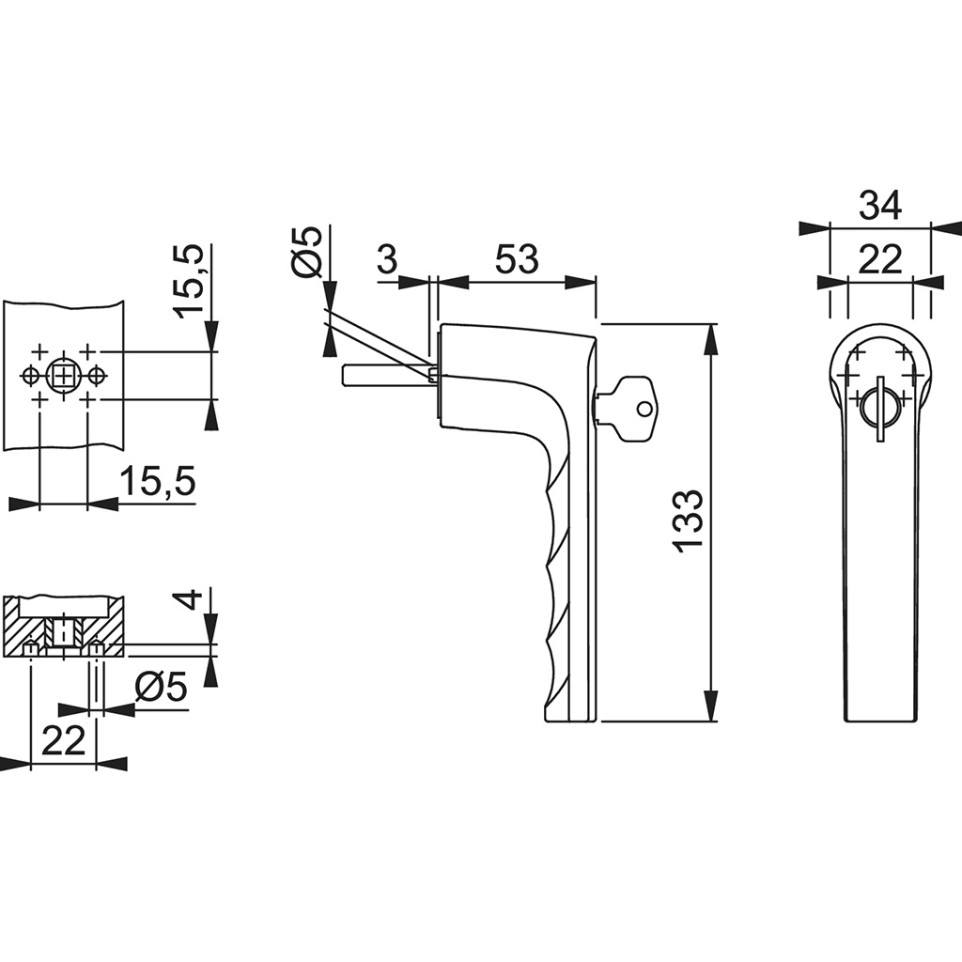

- The spindle measures 43 mm in length; square spindle size: 7 mm; handle operates at a defined rotational angle of 90°.
- Differentiating features include compact construction without embase and lockable function using an accessible push cylinder system.
How it works
To operate, insert the reversible key into the push cylinder to unlock. Turn the handle by up to 90° to open or close the window as needed. The locking feature secures the window against unauthorized use.
