CISA SikurExit Single-Point Panic Mortise Lock 30/92 Function A/D per piece

Usage

The Cisa Sikur Exit 1-point panic lock is designed for secure installation in emergency exit doors, enabling fast and safe egress in residential, commercial, or public buildings. It is suitable for new builds or retrofit projects where compliance with safety standards is essential.

Advantages

• Certified to EN 12209 security grade 3, ensuring a high level of resistance against forced entry.
• Features a dead-locking latch bolt automatically blocking the latch when locked for added security.
• Reversible and adjustable latch bolt allows flexible installation on various door types.
• Panic function can be easily selected via the split spindle mechanism to adapt to building needs.
• Cylinder replacement without dismantling the lock improves maintenance efficiency and reduces downtime.

Specifications

• Zinc-plated steel construction with hardened steel plates increases durability and anti-burglary protection.

• Complies with EN standards; certified grade ensures reliable emergency performance.

• Lateral resistance: up to 1000 kg; frontal resistance: up to 600 kg. Deadbolts thickness: 10 mm.

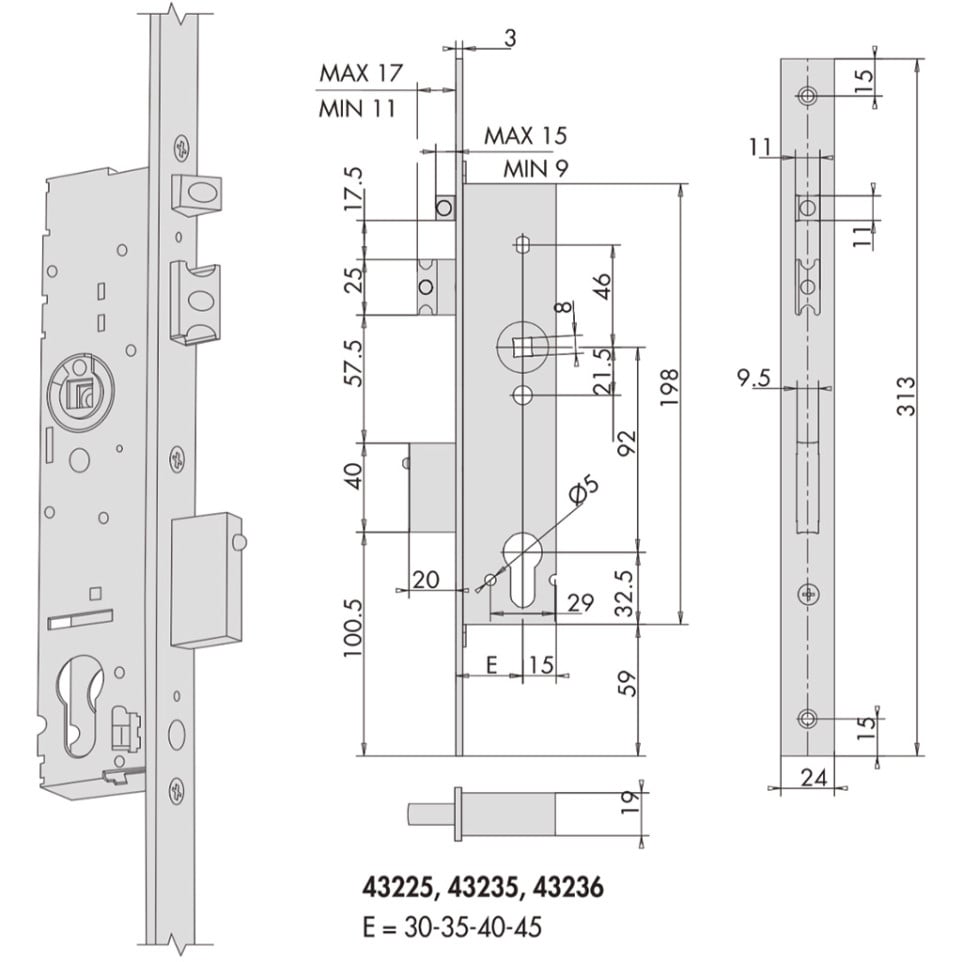

• Takes a cylinder (not included), backset of either 30 mm or compatible dimensions, distance between key/handle centers: typically 92 mm.


How it works

This mortise lock secures an exit door yet allows immediate unlocking via a connected panic bar. In an emergency, pressing the bar withdraws both bolts simultaneously so occupants can exit quickly without using a key or special knowledge. The panic function ensures compliance with safety regulations for escape routes.
