Cisa SikurExit 1-Point Mortice Panic Lock Function B 30/92 per piece

Usage

The Cisa Sikur Exit 1-point panic lock is designed for installation in emergency exit doors, ensuring secure locking while enabling rapid egress in public and commercial buildings.

Advantages

• Certified to EN 12209 security grade standards for reliable performance in emergency situations.
• Dead-locking latch bolt provides enhanced protection against forced entry.
• Reversible and adjustable latch bolt allows flexible installation and optimal fit.
• The lock can be integrated with electric handles for remote or automated opening.
• The cylinder is easily replaceable if required by security protocol or loss of keys.

Specifications

• Design: Mortise-type, single-point locking system constructed with hardened steel plates for resistance against tampering.

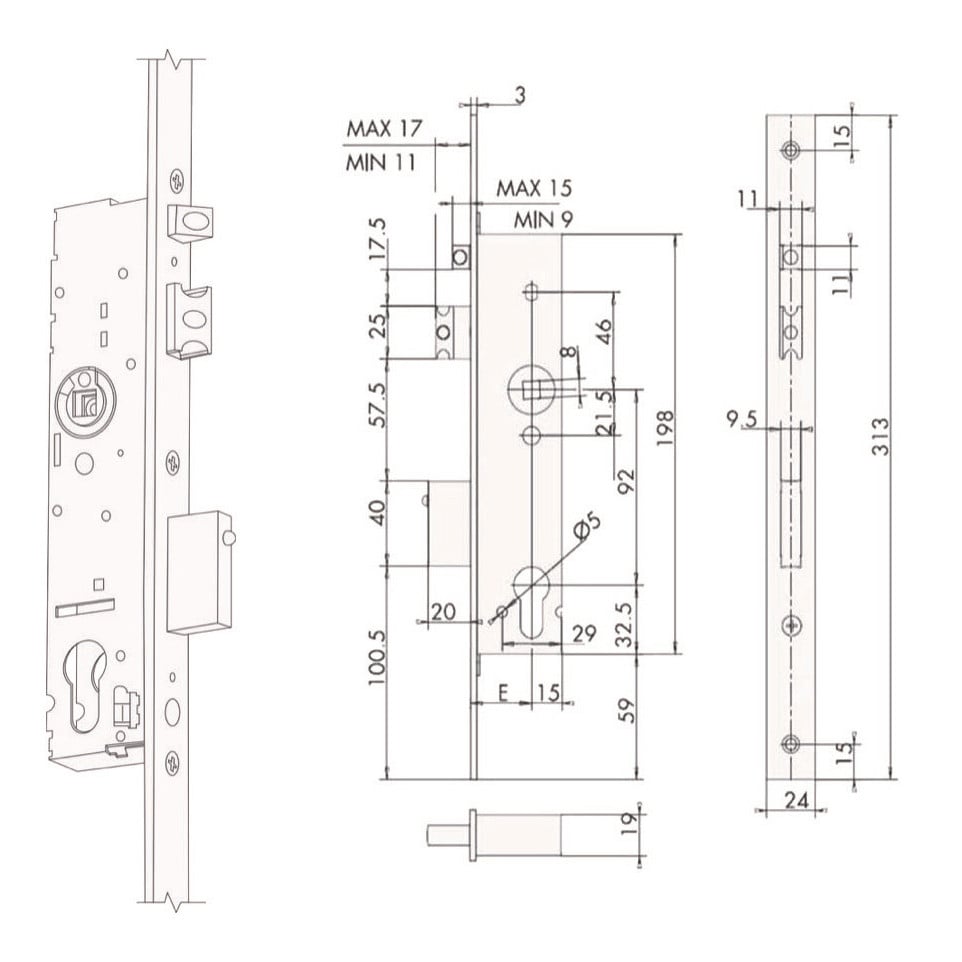

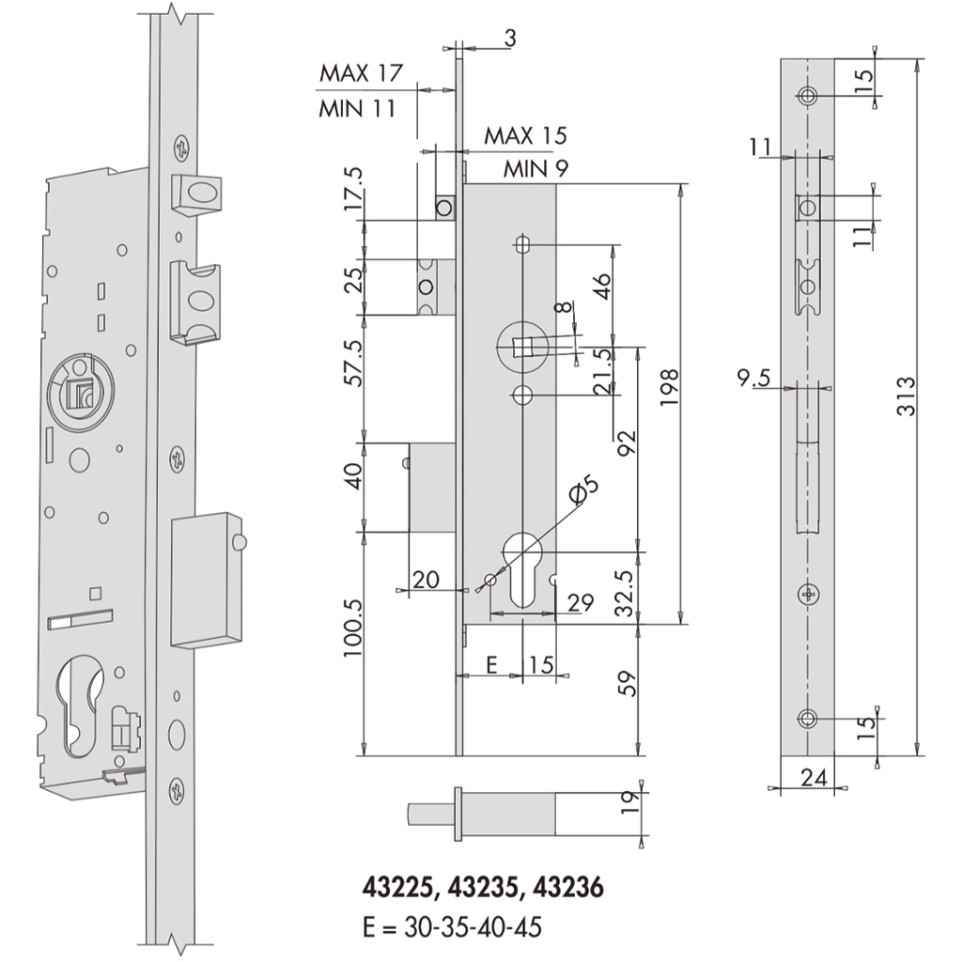

  Backset: 30 mm; Center distance: 92 mm.
  Deadbolt thickness: 10 mm.
  Adjustable reversible latch bolt between 11 -17 mm projection.[1][2]
• Durability & Certifications: Security grade certified to EN 12209; resistant to lateral force up to approximately 1000 kg, frontal force up to approximately 600 kg.[3]
• Performance: Automatic deadbolting function blocks the latch when locked. Compatible with master key systems and interchangeable cylinders.[1]
• Differentiating Features: Selectable panic function side due to split spindle design. Interchangeable with Multitop Pro locks. No intervention needed after an emergency exit—the lock resets automatically once the door is closed.[1]

How it works

When installed on an emergency exit door, the lock secures access until activated by a panic bar or lever from inside. Once triggered, it permits immediate exit while maintaining robust intrusion protection when locked from outside.
