Cisa SikurExit Single Point Mortice Panic Lock 40/92 Function A/D per piece

Product

The Cisa Sikur Exit 1-point mortise panic lock is designed for emergency exits in aluminum and steel doors, suitable for both single and double doors. It provides safe, controlled egress for high-traffic or public access locations.

Specifications

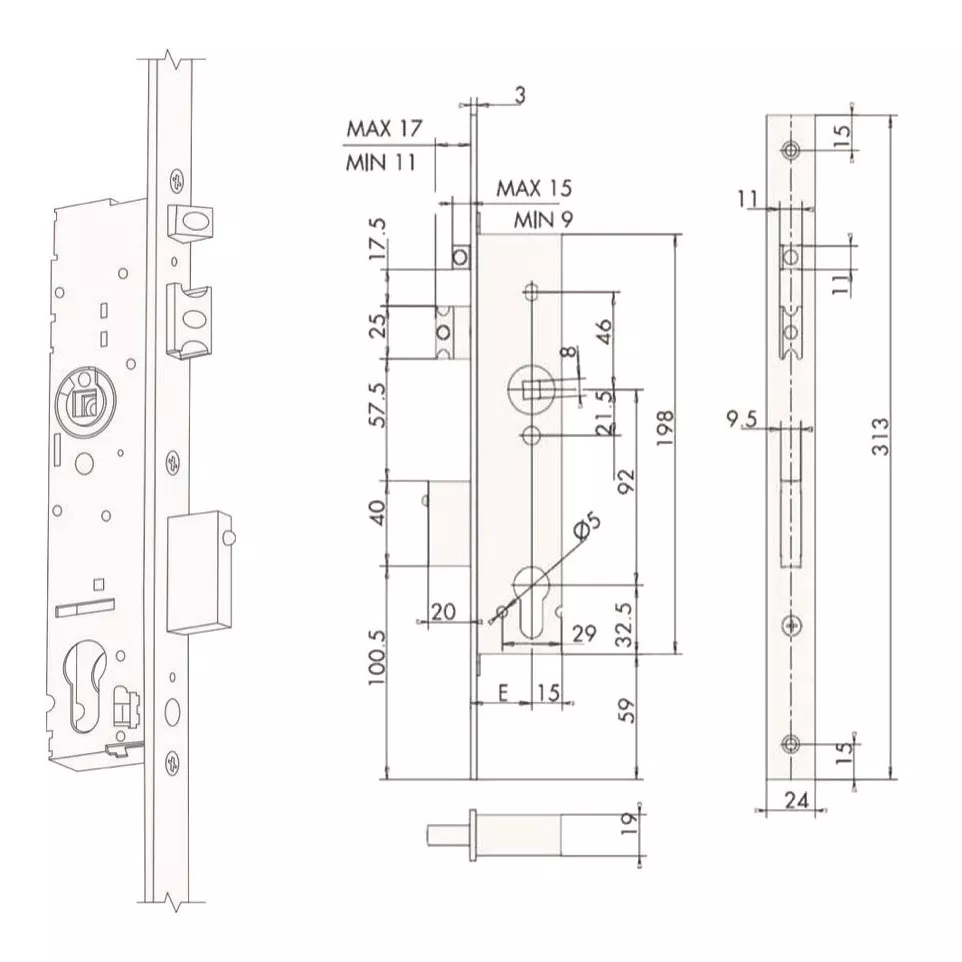

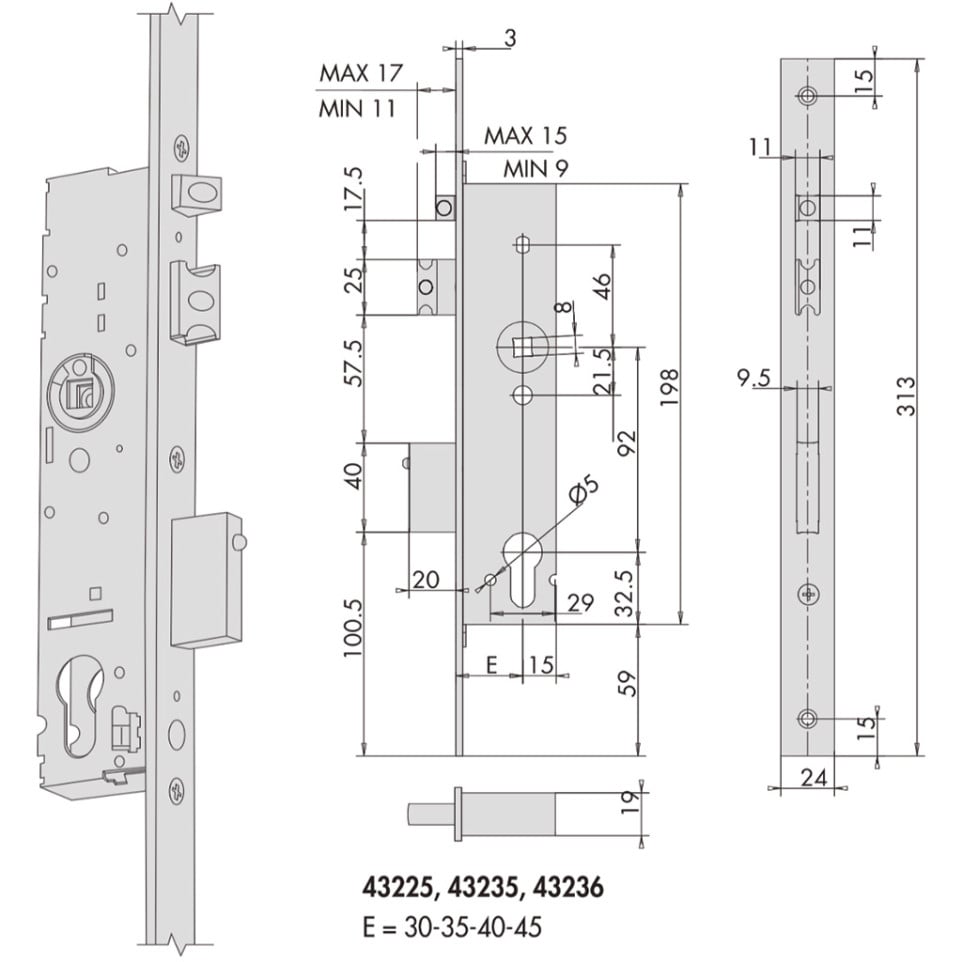

• Reversible design with adjustable latch projection from 11 to 17 mm and antifraud latch from 9 to 15 mm
• Central deadbolt projection: 20 mm; multipoint versions include reinforced flat bolts with 25 mm projection
• Compatible for both single and double doors using the same model
• Security Grade 6 according to EN 12209; deadbolt resists 1,000 kg laterally and 600 kg frontally
• Adjustable for functions A (no exterior handle, key controls latch/deadbolt) and D (exterior handle always active, key controls latch/deadbolt)
• Welding holes for mounting protective roses or armored escutcheons

Usage

Install the lock within the door structure to provide controlled access and comply with emergency exit regulations. Select the function mode to enable or restrict exterior handle use, based on security needs. Adjust latch and deadbolt projections to match door profiles and improve sealing.

FAQ

1. Is this lock suitable for both single and double doors?
   Yes, the same lock model can be used for both single and double door configurations.
2. What door materials are compatible with the Sikur Exit lock?
   It is designed for installation in aluminum and steel doors.
3. Can the latch and deadbolt projections be adjusted?
   Yes, the latch can be adjusted between 11–17 mm and the antifraud latch between 9–15 mm; the central deadbolt projects 20 mm.
4. What security standards does this lock meet?
   It is certified Grade 6 for security according to EN 12209, with high resistance to forced entry.
5. Are accessories available for fixed secondary leaves?
   Yes, additional boxes, rods, and bolts for semi-fixed secondary doors are available on request.
