BMH 300 Mortise Lock BB 55/72 Rounded Faceplate 24mm Right/DIN L / pc

BMH 300 Mortise Lock BB 55/72 Rounded Faceplate 24mm Right/DIN L / pc
BMH 300 Mortise Lock BB 55/72 Rounded Faceplate 24mm Right/DIN L / pc
BMH 300 Mortise Lock BB 55/72 Rounded...
BMH 300 Mortise Lock BB 55/72 Rounded...

Estimated delivery date :  Tuesday 9 June
€16.80 HT
In stock

Ref : FGT-113028

Variantes

BMH 300 DIN Mortise Lock BB 55/72 Rounded Faceplate 24mm Left/DIN R per piece BMH 300 DIN Mortise Lock BB 55/72 Rounded Faceplate 24mm Left/DIN R per piece
Quantity (Vendu par 20)

Add to your shopping List

You must be logged


Description

Product

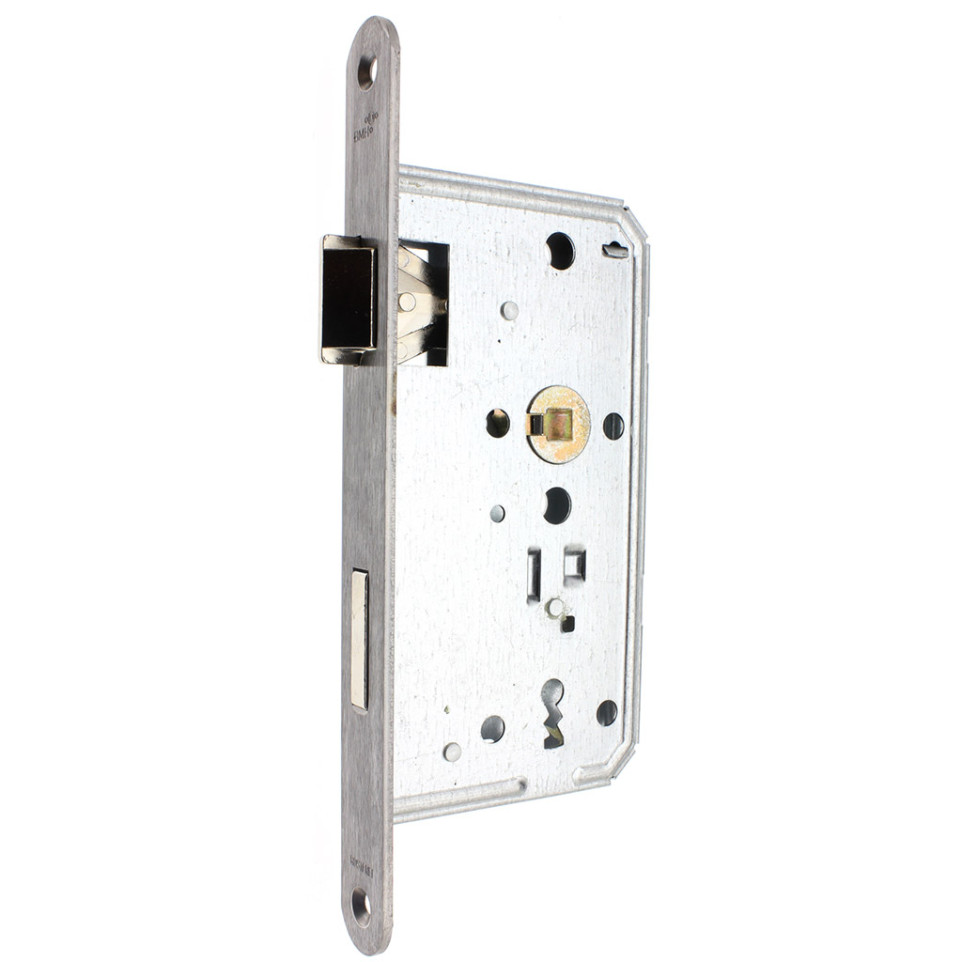

The Serrure DIN BMH n°300 BB 55/72 with 24mm rounded forend is a single-point notch lock designed for standard interior doors in offices or public spaces. Suitable for right-handed or DIN left installations.

Specifications

  • Stainless steel forend and closed, riveted DIN 300 case
  • Chromated steel follower with spring for 8 mm spindle
  • Nickel-plated metal latch bolt
  • Nickel-plated zamak double-turn deadbolt (BB version)
  • Classified DIN 18251 class 3 for durability and performance
  • Reversible handing (left or right); strike plate not included

Usage

This lock is intended for indoor use, providing secure access to rooms within offices or public buildings. It is compatible with standard handles and 8 mm square spindles, offering reliable latch and deadbolt operation for daily use.

FAQ

  1. What type of doors is this lock suitable for?
    • It is designed for standard interior doors such as those in offices or public areas.
  2. Can the lock be installed on both left and right-handed doors?
    • Yes, it is reversible for left or right-handed use.
  3. Does the package include a strike plate?
    • No, the strike plate must be purchased separately.
  4. What are the main materials used in the lock?
    • The forend is stainless steel, the follower is chromated steel, and the deadbolt is nickel-plated zamak.
  5. Which standard does this lock meet?
    • It is classified as DIN 18251 class 3, ensuring reliable durability and performance.

mvm-dt-2025-07-07

See more

Product Details

Brand Bmh
Finishing inox
Use type public
Lock type lançant + dormant
Centre distance (mm) 72
Opening direction poussé droite (DIN L)
Input (mm) 55
Headrest têtière arrondie 24 mm
Key type BB
FGT-113028
