Stainless Steel DIN Strike Plates for Flush Door / pc
€4.94
In stock
Usage
The CES LOCKS PZW 55/72 left-handed DIN lock is designed for single-point locking of solid or rebated doors in commercial, industrial, or residential projects requiring certified security and durability.
Advantages
- Prepared for euro-profile cylinder integration for versatile security solutions
- Robust mechanical anti-thrust latch blocking increases resistance to forced entry
- Bushed TENAX clamp follower made of durable sintered steel ensures smooth operation
- Satin stainless steel forend (AISI 304) provides corrosion resistance and a professional appearance
- Handed design (left/DIN R) must be specified during selection for proper fitment
Specifications
- Lock case: Galvanized and blue lacquered steel with nickel-plated triple latch-bolt and deadbolt components [1][2]
- Cylinder compatibility: Euro-profile; center distance: 72 mm; backset: 55 mm [1][2]

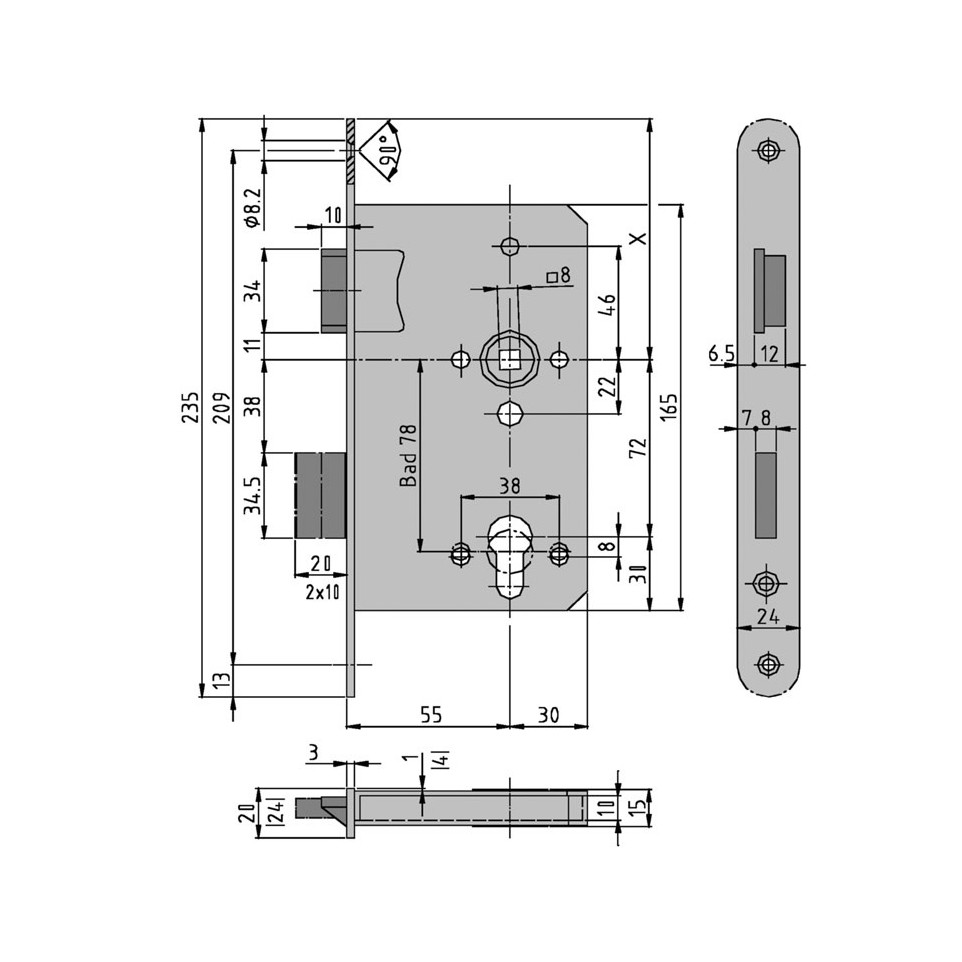

- Forend dimensions: Width—24 mm; Length—235 mm. Suitable for flush or rebated doors, square or rounded edge options available [1][2]
- TENAX clamp follower diameter: 8 mm; triple latch-bolt mechanism with double-throw deadbolt (20 mm projection) [1][2]
- Certain models comply with EN12209 and DIN18251-1 class standards, ensuring performance and fire protection suitability [1][3][4]
How it works
This lock is installed inside the door leaf. Turning the key in an integrated euro-profile cylinder engages both a robust nickel-plated latch-bolt and a double-throw deadbolt to secure the door. The directionality is set at installation according to the handedness required.
